Specifications
Brand Name :
BIEVO
Model Number :
RGF18-18-6
Certification :
CE, ISO 9001:2008
Place of Origin :
China,Jiangsu
MOQ :
1set
Price :
15000dollers/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 sets per month
Delivery Time :
30 working days
Packaging Details :
wood case
Type :
Filling machine
Automatic Grade :
automatic
Material :
SUS 304/316
Voltage :
220V / 380V / 415V
Dimension(L*W*H) :
by model
Weight :
2500KG
Machine Material :
304 stainless steel
Filling precision :
≤±5mm
Packaging Material :
wood
filling temperature :
85C
Condition :
new
Key Selling Points :
Full automatic
Wash :
pure water wash
blending system :
steam heating
packaging :
film shrink wrapping machine or carton packing machine
Workshop Layout :
Free Design
Power :
3.5kw
Driven Type :
Electric
Machinery Capacity :
5000bph
Description

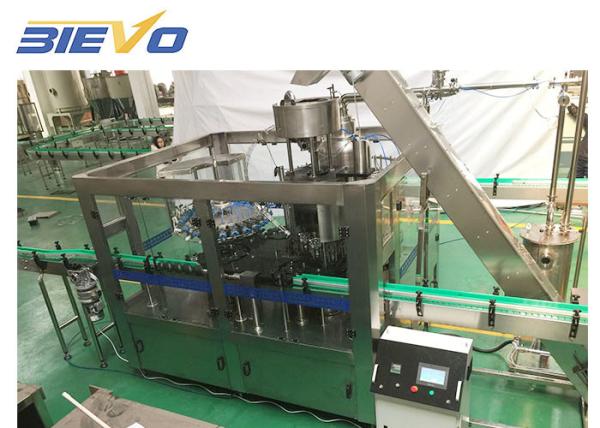

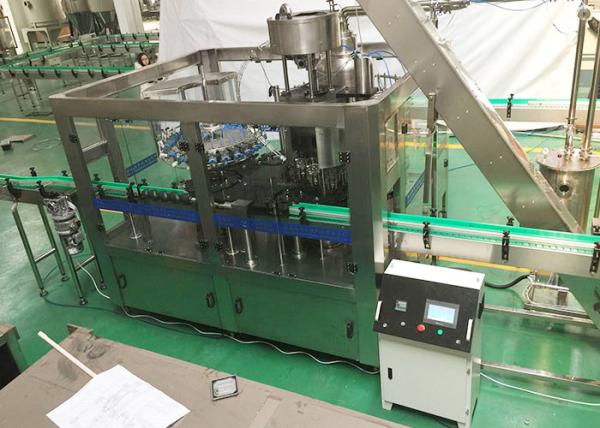

China Manufacturer Juice Filling Machine / Bottling Plant With Good Service

Product Description:

Standard type of RCGF series hot filling machine is "3-in-1".aiming at special production condition,one disinfectant rinser can be increased to be 4-in-1 monobloc.the system gives full consideration for beverage's characteristics(e.g.it is easy to have foaming for tea beverage and mixed juice.)and main technical requirement of hot filling.

Application:

Tea,juice,functional drink,milk beverage etc.

Technical characteristics:

Full filling avoids the bottle distorted after cooling and reduces dissolved oxygen at the maximum degree.product storage hopper and feed system adopts reasonable product feed design(constant flow,constant pressure,no foaming).product hopper with reasonable structure(exhaust,fully close,temperature can be detected).medium and high speed line adopts product distributor instead of large liquid carousel,which can be cleaned completely by pressure cleaning with CIP.sanitary filling valve system umbrella-flow type structure,high speed.perfect hot filling temperature control system.product recycle tank system with automatic product feed startup.perfect CIP system.

Characteristic:
1.intelligent contact screen, human design, easy operation.
2.High speed filling valve, avoiding drop leaking, accurate filling quantity.
3.Program logic controller(PLC), easy for changing size or modifying parameters.
4.Pneumatic elements are all famous brand, stability and reliability.
5.Photo-electric sensing and pneumatic linking control, automatic protection for shortage of bottle.
8.Pneumatic executive control valve, high efficiency and safety.
9.Close positioning design, easy governing, suitable for packing of all sizes of bottles.
10. machine is designed according to requirements of buyer's.

Product Features -

1. The whole machine adopts the design of stuck bottleneck suspension operation mode so that the bottle is stable and reliable under high-speed operation, and at the same time, the number of changed parts is greatly reduced, making it more convenient and fast when changing the bottle type.
2. A new generation of stainless steel flip bottle clamp is adopted so that the clamp does not contact the upper part of the thread of the bottle mouth, and a spray head is provided so that the inner wall of the bottle can be rinsed fully without dead corners.
3. Adopting advanced gravity filling principle, the filling is fast, stable, and accurate.
4. Adopt magnetic torque type capping head to realize capping and capping. The capping torque is infinitely adjustable, the sealing is tight and reliable, and the cap is not hurt.
5. The whole machine adopts man-machine interface touch screen buttons, PLC computer control, and is equipped with a cover missing and overload protection alarm device, which can find and eliminate faults in time and have a high degree of production automation.
6. The parts in contact with water are made of high-quality stainless steel, and the main electrical components are all products of well-known international manufacturers.

415V Juice Filling Machine

415V Juice Filling Machine

415V Juice Filling Machine

415V Juice Filling Machine

Washing Parts.
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
415V Juice Filling Machine
Filling Parts.
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
415V Juice Filling Machine
Capping Parts.
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
415V Juice Filling Machine
Air Conveyor.
- Air conveyor is fixed on the floor, with fan installed on the top.
- Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles.
- Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
- All are made of stainless steel SUS 304 /316.
- Rack made by high quality carbon steel welded.
415V Juice Filling Machine
Flat Conveyor.
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
415V Juice Filling Machine
Model RGF14-12-4 RGF18-18-6 RGF24-24-8 RGF32-32-10 RGF40-40-12 RGF50-50-15
Capacity 3000BPH 6000BPH 8000BPH 10000BPH 15000BPH 22000BPH
Washing No 14Heads 18Heads 24Heads 32Heads 40Heads 50Heads
Filling No 12Heads 18Heads 24Heads 32Heads 40Heads 50Heads
Capping No 4Heads 6Heads 8Heads 10Heads 12Heads 15Heads
Diameter of bottles :50-100mm
Height of bottle :100-300mm
Motor power 2.2KW 3.7KW 5.5KW 7.5KW 11KW 15KW

415V Juice Filling Machine

Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city. Our sales people you can get video of our reference running machineIn our nearby city has a Coca cola factory, they are buy our machine, we can take you to visit.

Q2: Do you have agent and after-service stations?
A2: So far we have agent in Indonsia, Malaysia, Vietnam, South Africa, Thailand etc.. welcome to join us!

Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.carton machine)

415V Juice Filling Machine

We have 1 year warranty, and lifetime maintenance. Within one year, if there is some accessory going wrong, we will send at once, free of charge.


1) Within one month, if the machine is of any big fails, we will send you at once. We have a stand-by repair engineer team to provide after-sale service.

2) Within one year, if you send back the equipment for repair, we will charge the repair, including the accessories. Both of them are free.

3) After one years, we offer to repair the machine, but we quire fo changed parts, not for manual cost.

4) No responsibility for man-made destroy.

5) If the buyer has any questions from our technical department, we service Or we can send professional engineers to help you debug them.
