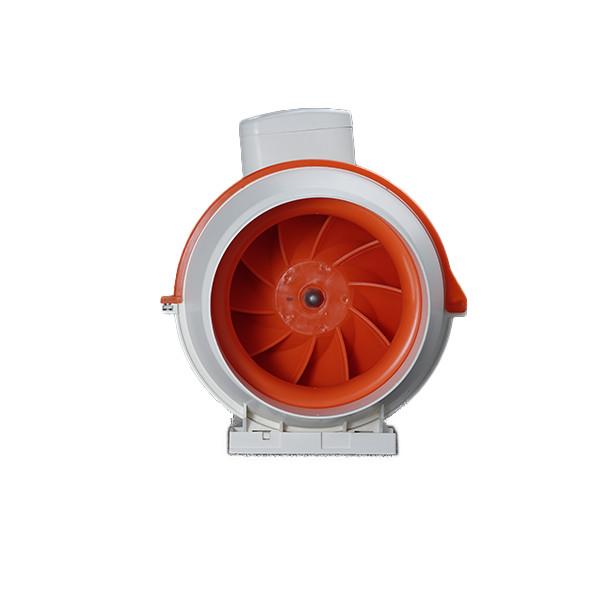

Dual-Speed Ventilation Fans Inline Duct & Mixed Flow Silent & Weatherproof Centrifugal Performance
Dual-Speed Ventilation Fans Inline Duct & Mixed Flow Silent & Weatherproof Centrifugal Performance
Dual-Speed Ventilation Fans Inline Duct & Mixed Flow Silent & Weatherproof Centrifugal Performance
Dual-Speed Ventilation Fans Inline Duct & Mixed Flow Silent & Weatherproof Centrifugal Performance
Dual-Speed Ventilation Fans Inline Duct & Mixed Flow Silent & Weatherproof Centrifugal Performance
Dual-Speed Ventilation Fans Inline Duct & Mixed Flow Silent & Weatherproof Centrifugal Performance
Dual-Speed Ventilation Fans Inline Duct & Mixed Flow Silent & Weatherproof Centrifugal Performance
Dual-Speed Ventilation Fans Inline Duct & Mixed Flow Silent & Weatherproof Centrifugal Performance
Specifications
Brand Name :
Available for ODM
Model Number :
DJT10-20
Certification :
CE
Place of Origin :
China Foshan
MOQ :
1
Price :
Contact Us
Payment Terms :
T/T
Supply Ability :
5000
Delivery Time :
3-8 work days
Packaging Details :
Carton packaging，1 units per carton
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Electric Current Type :
AC
Mounting :
Duct Fan
After-sales Service Provided :
Online support
Customized support :
OEM
Blade Material :
Plastic
Voltage :
220V
Warranty :
1 Year
Product name :
Ventilation
Air Quantity :
200/170
Description

Product Applications

Inclined flow fans excel in ventilation and air exchange across various settings. In factory workshops, they swiftly replace stale air, eliminating odors and harmful gases to create a healthier working environment for employees. In warehouses, these fans help prevent goods from dampness and mold, ensuring superior storage quality. Whether in large industrial sites or small commercial spaces, inclined flow fans are a powerful ally for effective ventilation.

Dual-Speed Ventilation Fans Inline Duct & Mixed Flow Silent & Weatherproof Centrifugal Performance

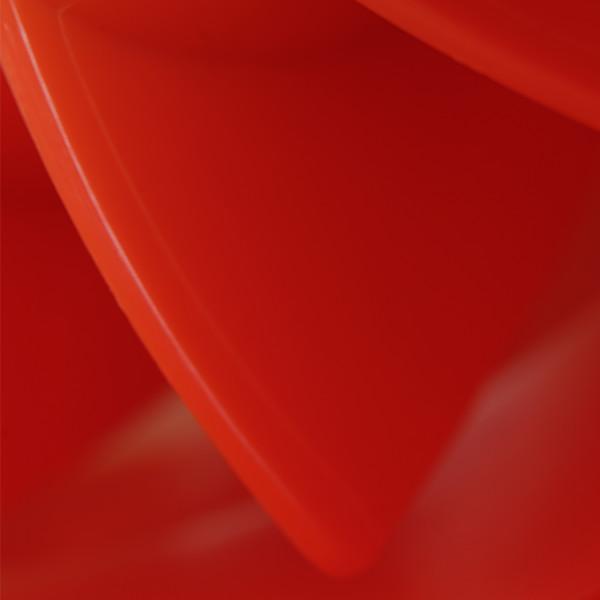

Product Fan Wheel

The impeller design of the inclined flow fan offers numerous benefits. Its unique shape and structure efficiently propel air movement, while its advanced aerodynamic design minimizes air resistance and enhances overall efficiency. Constructed from robust and durable materials, the impeller withstands high-speed rotation pressures, ensuring long-term stable operation.

Ease of Installation

Inclined flow fans are distinguished by their user-friendly installation features. Their straightforward structure, comprising minimal complex components, allows installers to quickly understand and assemble the unit with ease. The simple connections between parts require no specialized skills, significantly reducing both installation difficulty and time costs.

Product Specifications

Model number Power Airflow Static Pressure Noise Level Duct Diameter Quantity per Carton Net Weight
(W) (m5/h) (Pa) (dB) (mm) (Unit／Box) (kg)
DJT10-20 30/26 200/170 183/130 30/25 100 6 1.8
DJT15-54 48/40 540/384 330/280 40/35 150 6 2.2
DJT20-90 76/60 900/820 380/310 50/45 200 6 2.7
DJT25-170 173/152 1700/1200 550/480 56/50 250 1 18
DJT31-230 350/260 2300/1900 650/500 60/55 315 1 20

Product Dimension Diagram

Dual-Speed Ventilation Fans Inline Duct & Mixed Flow Silent & Weatherproof Centrifugal Performance

Product Size Specifications

Model number A B(Φ) C D E F H H1
dJT10-20 300 100 100 214 62 60 182 95
DJT15-54 293 150 120 237 72 70 211 110
DJT20-90 304 200 140 258 78 85 235 124
DJT25-170 367 250 317 208 120 95 365 196
DJT31-230 450 315 360 255 120 95 410 215
