47Hz To 63Hz 132KW Water Pump Inverter Input 220v Output 380v Built In PLC
47Hz To 63Hz 132KW Water Pump Inverter Input 220v Output 380v Built In PLC
47Hz To 63Hz 132KW Water Pump Inverter Input 220v Output 380v Built In PLC
47Hz To 63Hz 132KW Water Pump Inverter Input 220v Output 380v Built In PLC
Specifications
Brand Name :
EMHEATER
Model Number :
EM15-G3-132
Certification :
CE,Rohs,3C
Place of Origin :
CHINA
MOQ :
1
Price :
Please contact quotation
Payment Terms :
T/T, Western Union
Supply Ability :
100 units per week
Delivery Time :
3-9 work days
Packaging Details :
Wooden case
Products Name :
Variable frequency inverters
Rated Power :
132KW
Input Voltage :
3 Phase 380V
Output Voltage :
3 PHASE 0~380V
Type :
AC to AC
Output Current :
253A
Color :
Black
Output Frequency :
0~3000Hz
Description

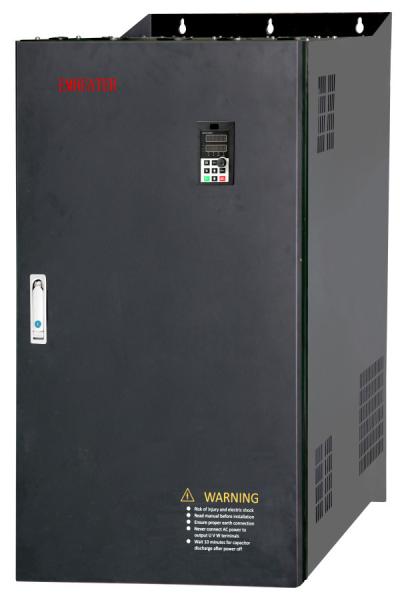

132KW Variable Frequency Inverters AC 380V built in PLC for water pump
EM15 series frequency inverter is a brand new high-performance inverter. It is highly extensible and flexible with PG card, PLC card and communication card, meeting the demands of various industries. It mainly covering the applications of printing and packaging, winding equipment, paper machinery, shearing equipment, textile machinery.

Products Feature

Support various motor's control mode
Support V/F control, Sensor-less vector control and Closed-loop vector control.
Support several of encoder.

High starting torque character
150% starting torque at 0.5Hz(Open loop vector control without PG)
180% starting torque at 0Hz(Closed vector control with PG)

Support Various keyboard display

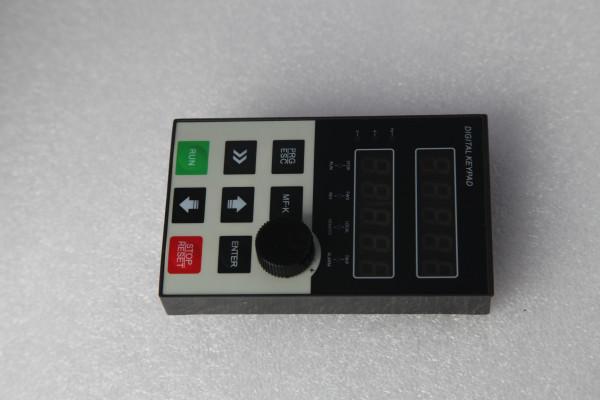

The screen of the EM15 series inverter is a two-line display, which can display more than 30 states such as frequency and current etc.

Technical Specifications

Input Voltage220V/380V/480V±15%
Input Frequency47~63Hz
Input Frequency Resolution0.01Hz (Digital setting); maximum frequency×0.025% (Analog setting)
Output Voltage0~Rated input voltage
Output Frequency0~320Hz(SFC); 0~3200Hz (V/F)
Control ModeSensor-less vector control(SVC); Closed-loop vector control (FVC); Voltage/Frequency (V/F) control
Virtual I/OFive groups of virtual DI/DO can realize simple logic control.
Timing ControlTime range: 0.0~6500.0 minutes
Motor Overheat ProtectionThe optional I/O extension card enables AI3 to receive the motor temperature sensor input (PT100, PT1000) so as to realize motor overheat protection.
Multiple Encoder TypesIt supports differential encoder, open-collector encoder
Protection ModeMotor short-circuit detection at power-on, input/output phase loss protection, over current and overvoltage protection, less voltage protection, overheat protection and overload protection,etc
Running Command Givingkey panel; Control terminals; Serial communication port; You can switch between these giving in various ways.
Programmable Open Collector Output1 FMP output terminal, that supports 0–100 kHz square wave signal output (Can be used as DO output)
Programmable Analog Output2 analog output (AO) terminals, both of them supports 0mA~20mA current output and 0V~10V voltage output.
Relay Output2 relay output terminal (2.2KW and below only have 1 relay output terminal)

Model

Power Capacity (KVA)

Input Current
(A)

Output Current
(A)

Adaptable Motor

KW

HP

Three phase 380V 50/60Hz
EM15-G3-d75/P3-1d51.5/35/5.82.1/3.80.75/1.51/2
EM15-G3-1d5/P3-2d23/45.8/10.53.8/5.11.5/2.22/3
EM15-G3-2d2/P3-0044/5.910.5/14.65.1/92.2/3.73/5
EM15-G3-004/P3-5d55.9/8.914.6/20.59/133.7/5.55/7.5
EM15-G3-5d5/P3-7d58.9/1120.5/2613/175.5/7.57.5/10
EM15-G3-7d5/P3-01111/1726/3517/257.5/1110/15
EM15-G3-011/P3-01517/2135/38.525/3211/1515/20
EM15-G3-015/P3-01821/2438.5/46.532/3715/18.520/25
EM15-G3-018/P3-02224/3046.5/6237/4518.5/2225/30
EM15-G3-022/P3-03030/4062/7645/6022/3030/40
EM15-G3-030/P3-03740/5776/9260/7530/3740/50
EM15-G3-037/P3-04557/6992/11375/9137/4550/60
EM15-G3-045/P3-05569/85113/12891/11245/5560/75
EM15-G3-055/P3-07585/114128/157112/15055/7575/100
EM15-G3-075/P3-090114/134157/180150/17675/90100/125
EM15-G3-090/P3-110134/160180/214176/21090/110125/150
EM15-G3-110/P3-132160/192214/256210/253110/132150/200
EM15-G3-132/P3-160192/231256/307253/304132/160200/250
EM15-G3-160/P3-200231/250307/385304/377160/200250/280
EM15-G3-200/P3-220250/280385/430377/426200/220280/300
EM15-G3-220/P3-250280/355430/468426/465220/250300/370
EM15-G3-250/P3-280355/396468/525465/520250/280370/400
EM15-G3-280/P3-315396/445525/590520/585280/315400/420
EM15-G3-315/P3-355445/500590/665585/650315/355420/500
EM15-G3-355500665650355500
EM15-G3-400560785725400530
EM15-G3-450630883820450600
EM15-G3-500800920860500660

47Hz To 63Hz 132KW Water Pump Inverter Input 220v Output 380v Built In PLC47Hz To 63Hz 132KW Water Pump Inverter Input 220v Output 380v Built In PLC47Hz To 63Hz 132KW Water Pump Inverter Input 220v Output 380v Built In PLC

​

47Hz To 63Hz 132KW Water Pump Inverter Input 220v Output 380v Built In PLC

Application

Stone, brick and wood

Energy saving, big torque quickly move up and down.

Torque current control uniform cutting and big torque with low speed.

Start and stop quickly, built-in crafts control.

Steady speed with high accuracy and big torque, high yield of production ratio.

Fan &Water Pump/Air compressor

Support built-in Speed tracking card.

Built -in Pressure closed loop and dormancy awakening, protection function of over pressure.

Built -in extension water supply card, realized one drive for multiple pumps with clock function.

Realized thermostatic control, high Energy-saving rate.
Small volume and high efficiency, frequency inverter and air compressor be used cooperatively

Textile industry

high starting torque, adapt to wide voltage fluctuation.

Airtight structure can avoid air duct blocked, Wobble function.

built in working records and techniques' curve.

Built-in closed loop, realized high precision synchronous.

Fixed-length function.

Realized permanent magnet synchronous motor open loop control.

Q&A

How can we guarantee quality?

EMHEATER frequency inverter passed IEC test and has CE certificate. Each piece of VFD will have 4 testing before delivery, follow ISO 9001 standard. We offer high quality VFD.

What can you buy from us?

Soft Starter, Frequency Inverter, Servo motor and drive


What's the delivery term?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDU, etc
