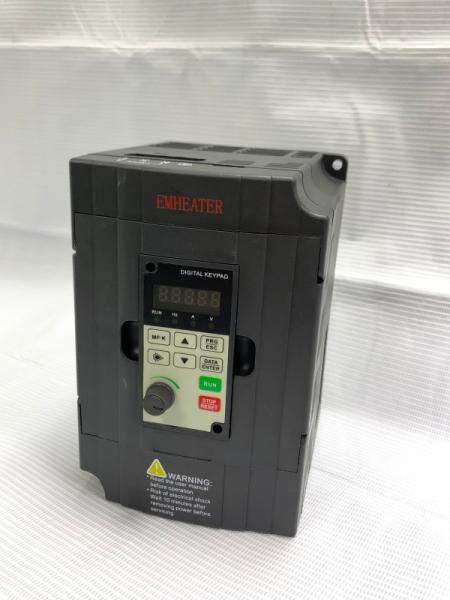

Synchronous 2.2 Kw Inverter 3phase 380 Volt For Injection Molding Machine
Synchronous 2.2 Kw Inverter 3phase 380 Volt For Injection Molding Machine
Synchronous 2.2 Kw Inverter 3phase 380 Volt For Injection Molding Machine
Synchronous 2.2 Kw Inverter 3phase 380 Volt For Injection Molding Machine
Specifications
Brand Name :
EMHEATER
Model Number :
EM15-T3-2d2
Certification :
CE,Rohs
Place of Origin :
CHINA
MOQ :
1
Price :
Please contact for quotation
Payment Terms :
T/T, Western Union
Supply Ability :
1000 units per week
Delivery Time :
1-7 work days
Packaging Details :
Standard packing
Products Name :
Synchronous Inverters
Rated Power :
2.2KW
Input Voltage :
3 Phase 380V
Output Voltage :
3 PHASE 0~380V
Type :
AC to AC
Output Current :
5.1A
Color :
Black
Output Frequency :
0~3000Hz
Description

Synchronous Inverters 2.2kW 3phase 380V for Injection molding machine

EM15-T series are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent magnet synchronous motors. Applying the most advanced sensorless vector control which keeps pace with the leading international level, the product enhances its reliability to meet the requirements of environment adaptability, customized and industrialized design with more optimized functions, more flexible applications and more stable performance.

Product features

  • Adopt high-performance vector control technology to make the torque of low frequency large, enabling to output 150% rated torque for 0.5Hz in open loop vector mode.
  • New added functions of current realization and overvoltage suppression can effectively reduce the frequency of frequency converter fault protection.
  • Self-learning function of motor parameters can enhance the corresponding speed and control accuracy.
  • All series conformal coating can improve the product reliability and environmental adaptation.
  • Refined protection function can support over 30 protections, including short circuit detection of electric motor, input/output phase loss, overcurrent, overvoltage and overheat.
Input Voltage 220V/380V/480V±15%
Input Frequency 47~63Hz
Input Frequency Resolution 0.01Hz (Digital setting); maximum frequency×0.025% (Analog setting)
Carrier Frequency 0.5kHz~16kHz
Startup Torque G type: 0.5Hz/150% (FVC); 0Hz/180%(FVC); P type: 0.5Hz/100%
Speed Range 1:100(SVC);1:1000(FVC)
Speed Stability Accuracy ±0.5%(SVC);±0.02%(FVC)
Torque Control Accuracy ±5%(FVC)
Overload Capacity G type:150% rated current 60s; 180% rated current 3s; P type: 120% rated current 60s;150% rated current 3s.
Torque Boost Auto boost; Manual boost 0.1%~30.0%
DC braking 0.00Hz~maximum frequency (DC braking frequency); 0.0s~36.0s(Braking time); 0.0%~100.0%( Braking trigger current value)
Built-in Simple PLC / Multiple Speeds It realizes up to 16 speeds via the simple PLC function or combination of DI terminal states.
Installation Location Indoor, no direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapour, drip or salt.
Altitude Lower than 1000m
Ambient Temperature -10°C~ +40°C (de-rated if the ambient temperature is between 40°C and 50°C)
Humidity Less than 95%RH, without condensing
Vibration Less than 5.9 m/s2 (0.6 g)
Storage Temperature -20°C ~ +60°C

Model

Model EM15-T3
004 5d5 7d5 011 015 018 022 030 037 045 055 075 090 110 132 160 200 220 250 280 315 355 400 450
Input Voltage/Freq. 3PH 380V；50Hz/60Hz
Current(A) 14.6 20.5 26 35 38.5 46.5 62 76 92 113 128 157 180 214 256 307 385 430 468 525 590 665 785 883
Voltage range Allowable voltage fluctuation range:±15%
Output Voltage 3PH 0V~rated voltage
Current(A) 9 13 17 25 32 37 45 60 75 91 112 150 176 210 253 304 377 426 465 520 585 650 725 820
Overload 150% rated current 60s, 180% rated current 3s
Adapted motor(KW) 4 5.5 7.5 11 15 18.5 22 30 37 45 55 75 90 110 132 160 200 220 250 280 315 355 400 450
Brake Unit Built-in as standard External
Output frequency 0~3000Hz
Cooling Fan cooling
Altitude Lower than 1000m
Ambient temperature －10℃～＋40℃40(ambient temperation at 40℃~50℃,please keep derated use)
Storage temperature －20℃～＋60℃
Humidity Less than 95%RH, without condensing
Vibration Less than 5.9 m/s2 (0.6 g)
Protection level IP20

Application

Stone, brick and wood

Energy saving, big torque quickly move up and down.

Torque current control uniform cutting and big torque with low speed.

Start and stop quickly, built-in crafts control.

Steady speed with high accuracy and big torque, high yield of production ratio.

Fan &Water Pump/Air compressor

Support built-in Speed tracking card.

Built -in Pressure closed loop and dormancy awakening, protection function of over pressure.

Built -in extension water supply card, realized one drive for multiple pumps with clock function.

Realized thermostatic control, high Energy-saving rate.

Small volume and high efficiency, frequency inverter and air compressor be used cooperatively.

Textile industry

high starting torque, adapt to wide voltage fluctuation.

Airtight structure can avoid air duct blocked, Wobble function.

built in working records and techniques' curve.

Built-in closed loop, realized high precision synchronous.

Fixed-length function.

Realized permanent magnet synchronous motor open loop control.

Synchronous 2.2 Kw Inverter 3phase 380 Volt For Injection Molding MachineSynchronous 2.2 Kw Inverter 3phase 380 Volt For Injection Molding Machine

FAQ

Who are we?

We are based in Guangdong, China, start from 2017,sell to Domestic Market(50.00%),Southeast Asia(12.00%),Eastern Europe(12.00%),South America(5.00%),Eastern Asia(3.00%),Northern Europe(3.00%),Oceania(3.00%),Southern Europe(3.00%),North America(2.00%),Western Europe(2.00%),Mid East(2.00%),Africa(1.00%),South Asia(1.00%),Central America(1.00%). There are total about 51-100 people in our office.

What's the delivery term?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDU, etc.

What's the payment term?

Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;

What's about your delivery time?

All type we have stock,after we receive payment,we will send you within two days.

What is your production capacity?

Each product has different production capacity, we can talk details by email.
