4000W Synchronous Inverters 220V To 220V 4 Kw Frequency Inverter
4000W Synchronous Inverters 220V To 220V 4 Kw Frequency Inverter
4000W Synchronous Inverters 220V To 220V 4 Kw Frequency Inverter
4000W Synchronous Inverters 220V To 220V 4 Kw Frequency Inverter
4000W Synchronous Inverters 220V To 220V 4 Kw Frequency Inverter
4000W Synchronous Inverters 220V To 220V 4 Kw Frequency Inverter
Specifications
Brand Name :
EMHEATER
Model Number :
EM15-T2-004
Certification :
CE,Rohs
Place of Origin :
CHINA
MOQ :
1
Price :
Please contact for quotation
Payment Terms :
T/T, Western Union
Supply Ability :
1000 units per week
Delivery Time :
1-7 work days
Packaging Details :
Standard packing
Products Name :
Synchronous Inverters
Rated Power :
4KW
Input Voltage :
3 Phase 220V
Output Voltage :
3 PHASE 0~220V
Type :
AC to AC
Output Current :
16A
Color :
Black
Output Frequency :
0~3000Hz
Description

4KW Synchronous Inverters 220V to 220V for three phase motor

EM15-T is a new generation of high performance vector synchronous motor drive developed by our company. This series has excellent vector control performance, powerful overload ability and good dynamic characteristics. It realizes the speed and torque control of three-phase AC synchronous motor and meets the application requirements of different automatic production equipment.

Product features

  • Adopt the excellent control algorithm to make the control accuracy higher and the speed range wider.
  • Support drive synchronous motor, variable frequency motor and other types of motor
  • Built-in PID and simple PLC make the external circuit simplify.
  • Support PG collector signal, differential signal and other encoder interfaces, making the closed loop vector control realize conveniently.
  • New added functions of current realization and overvoltage suppression can effectively reduce the frequency of frequency converter fault protection.
Input Voltage 220V/380V/480V±15%
Input Frequency 47~63Hz
Input Frequency Resolution 0.01Hz (Digital setting); maximum frequency×0.025% (Analog setting)
Output Voltage 0~Rated input voltage
Output Frequency 0~320Hz(SFC); 0~3200Hz (V/F)
Control Mode Sensor-less vector control(SVC); Closed-loop vector control (FVC); Voltage/Frequency (V/F) control
Speed Stability Accuracy ±0.5%(SVC);±0.02%(FVC)
Torque Control Accuracy ±5%(FVC)
Overload Capacity G type:150% rated current 60s; 180% rated current 3s; P type: 120% rated current 60s;150% rated current 3s.
Torque Boost Auto boost; Manual boost 0.1%~30.0%
DC braking 0.00Hz~maximum frequency (DC braking frequency); 0.0s~36.0s(Braking time); 0.0%~100.0%( Braking trigger current value)
Built-in Simple PLC / Multiple Speeds It realizes up to 16 speeds via the simple PLC function or combination of DI terminal states.
Built-in PID It realizes closed loop control system easily.
Auto voltage regulation (AVR) It can keep constant output voltage automatically when the mains voltage fluctuation
Overvoltage/ Overcurrent Stall Control The current and voltage are limited automatically during the running process so as to avoid frequently tripping due to overvoltage / over current.

Model

Model EM15-T3
004 5d5 7d5 011 015 018 022 030 037 045 055 075 090 110 132 160 200 220 250 280 315 355 400 450
Input Voltage/Freq. 3PH 380V；50Hz/60Hz
Current(A) 14.6 20.5 26 35 38.5 46.5 62 76 92 113 128 157 180 214 256 307 385 430 468 525 590 665 785 883
Voltage range Allowable voltage fluctuation range:±15%
Output Voltage 3PH 0V~rated voltage
Current(A) 9 13 17 25 32 37 45 60 75 91 112 150 176 210 253 304 377 426 465 520 585 650 725 820
Overload 150% rated current 60s, 180% rated current 3s
Adapted motor(KW) 4 5.5 7.5 11 15 18.5 22 30 37 45 55 75 90 110 132 160 200 220 250 280 315 355 400 450
Brake Unit Built-in as standard External
Output frequency 0~3000Hz

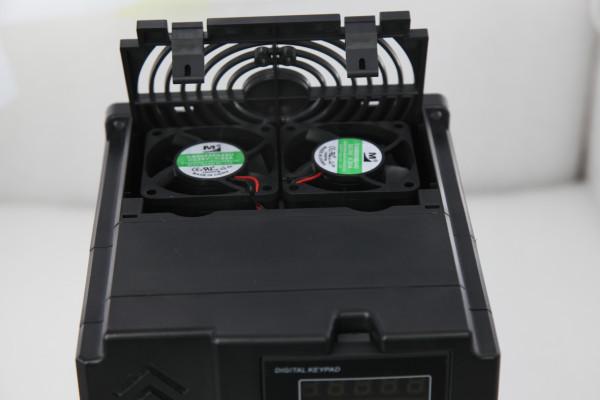

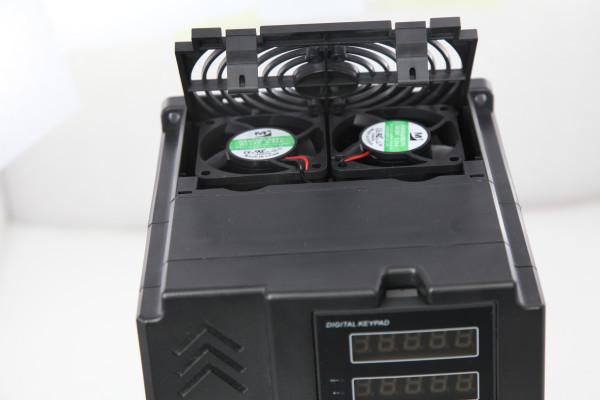

Cooling Fan cooling
Altitude Lower than 1000m
Ambient temperature －10℃～＋40℃40(ambient temperation at 40℃~50℃,please keep derated use)
Storage temperature －20℃～＋60℃
Humidity Less than 95%RH, without condensing
Vibration Less than 5.9 m/s2 (0.6 g)
Protection level IP20

Application

Stone, brick and wood

Energy saving, big torque quickly move up and down.

Torque current control uniform cutting and big torque with low speed.

Start and stop quickly, built-in crafts control.

Steady speed with high accuracy and big torque, high yield of production ratio.

Lifting equipment

Stable and reliable operation, with mechanical brake to realize halfway stop and start.

Compatible with YASKAWA independent protocol.

Wide operating voltage, low-voltage power shake can work continuously, strong environmental adaptability.

Multi-speed synchronous transmission performance is good; low-speed with large torque has heavy load capacity.

Large lifting torque, energy-saving.

Plastics processing /Extrusion processing

Standard inverter cabinet with injection molding signal card.

Energy saving cabinet built in inverter and bypass.

Built in charging function to support mode of contract saving energy.

Extrusion force is big, Avoid tripping, uniform extruding flow.

Quickly and strong force output, Multiple pumps have good synchronization performance.

High energy-saving rate, with conversion of inverter and grid power.

4000W Synchronous Inverters 220V To 220V 4 Kw Frequency Inverter4000W Synchronous Inverters 220V To 220V 4 Kw Frequency Inverter4000W Synchronous Inverters 220V To 220V 4 Kw Frequency Inverter

FAQ

How can we guarantee quality?

EMHEATER frequency inverter passed IEC test and has CE certificate. Each piece of VFD will have 4 testing before delivery, follow ISO 9001 standard. We offer high quality VFD.

Always a pre-production sample before mass production;

Always final Inspection before shipment;

What can you buy from us?

Soft Starter, Frequency Inverter, Servo motor and drive

Why should you buy from us not from other suppliers?

We have 6 factories and more than 820 staff. As a professional manufacturer of industrial automation products, we are always dedicated to soft starter, frequency inverter, servo motor and drive, EMI filters, harmonic wave AC choke, sine wave filter.

What's the delivery term?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDU, etc.
