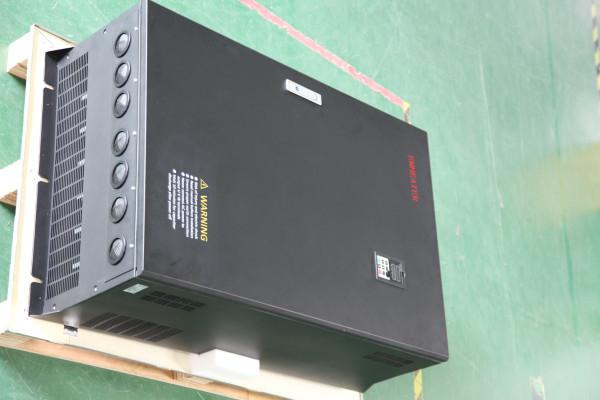

3 Phase 300HP Ac Motor Control 380V For Ac Blower Fan
3 Phase 300HP Ac Motor Control 380V For Ac Blower Fan
3 Phase 300HP Ac Motor Control 380V For Ac Blower Fan
3 Phase 300HP Ac Motor Control 380V For Ac Blower Fan
3 Phase 300HP Ac Motor Control 380V For Ac Blower Fan
3 Phase 300HP Ac Motor Control 380V For Ac Blower Fan
3 Phase 300HP Ac Motor Control 380V For Ac Blower Fan
3 Phase 300HP Ac Motor Control 380V For Ac Blower Fan
3 Phase 300HP Ac Motor Control 380V For Ac Blower Fan
3 Phase 300HP Ac Motor Control 380V For Ac Blower Fan
3 Phase 300HP Ac Motor Control 380V For Ac Blower Fan
3 Phase 300HP Ac Motor Control 380V For Ac Blower Fan
Specifications
Brand Name :
EMHEATER
Model Number :
EM15-G3-220
Certification :
CE,Rohs
Place of Origin :
CHINA
MOQ :
1
Price :
Please contact for quotation
Payment Terms :
T/T, Western Union
Supply Ability :
600 units per week
Delivery Time :
3-10 work days
Packaging Details :
Standard packing
Products Name :
AC Motor Drive Controller
Rated Power :
300HP
Input Voltage :
3 Phase 380V
Output Voltage :
3 PHASE 0~380V
Type :
AC to AC
Output Current :
440A
Color :
Black
Output Frequency :
0~3000Hz
Description

300HP AC Motor Drive Controller 3 phase 380V for ac blower fan

EM15 series frequency inverter is a brand new high-performance inverter. It is highly extensible and flexible with PG card, PLC card and communication card, meeting the demands of various industries. It mainly covering the applications of printing and packaging, winding equipment, paper machinery, shearing equipment, textile machinery, etc.

Product features

Perfect hardware protection function
All series of hardware has three-phase protection, such as overload or over current or short circuit of any phase of the AC motor can be protected in time.

Environment-resisting design
With three-proof paint treatment process(Dust-proof, moisture proof, mold proof) to ensure product stability and reliability.
Wide voltage range design.
A full range of independent air duct design.

Output Voltage 0~Rated input voltage
Output Frequency 0~320Hz(SFC); 0~3200Hz (V/F)
Control Mode Sensor-less vector control(SVC); Closed-loop vector control (FVC); Voltage/Frequency (V/F) control
Carrier Frequency 0.5kHz~16kHz
Startup Torque G type: 0.5Hz/150% (FVC); 0Hz/180%(FVC); P type: 0.5Hz/100%
Speed Range 1:100(SVC);1:1000(FVC)
Torque Boost Auto boost; Manual boost 0.1%~30.0%
DC braking 0.00Hz~maximum frequency (DC braking frequency); 0.0s~36.0s(Braking time); 0.0%~100.0%( Braking trigger current value)
Built-in Simple PLC / Multiple Speeds It realizes up to 16 speeds via the simple PLC function or combination of DI terminal states.
Built-in PID It realizes closed loop control system easily.
Auto voltage regulation (AVR) It can keep constant output voltage automatically when the mains voltage fluctuation
Overvoltage/ Overcurrent Stall Control The current and voltage are limited automatically during the running process so as to avoid frequently tripping due to overvoltage / over current.
Installation Location Indoor, no direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapour, drip or salt.
Altitude Lower than 1000m
Ambient Temperature -10°C~ +40°C (de-rated if the ambient temperature is between 40°C and 50°C)
Humidity Less than 95%RH, without condensing
Vibration Less than 5.9 m/s2 (0.6 g)
Storage Temperature -20°C ~ +60°C

Model

Model

Power Capacity (KVA)

Input Current
(A)

Output Current
(A)

Adaptable Motor

KW

HP
Three phase 380V 50/60Hz
EM15-G3-d75/P3-1d5 1.5/3 5/5.8 2.1/3.8 0.75/1.5 1/2
EM15-G3-1d5/P3-2d2 3/4 5.8/10.5 3.8/5.1 1.5/2.2 2/3
EM15-G3-2d2/P3-004 4/5.9 10.5/14.6 5.1/9 2.2/3.7 3/5
EM15-G3-004/P3-5d5 5.9/8.9 14.6/20.5 9/13 3.7/5.5 5/7.5
EM15-G3-5d5/P3-7d5 8.9/11 20.5/26 13/17 5.5/7.5 7.5/10
EM15-G3-7d5/P3-011 11/17 26/35 17/25 7.5/11 10/15
EM15-G3-011/P3-015 17/21 35/38.5 25/32 11/15 15/20
EM15-G3-015/P3-018 21/24 38.5/46.5 32/37 15/18.5 20/25
EM15-G3-018/P3-022 24/30 46.5/62 37/45 18.5/22 25/30
EM15-G3-022/P3-030 30/40 62/76 45/60 22/30 30/40
EM15-G3-030/P3-037 40/57 76/92 60/75 30/37 40/50
EM15-G3-037/P3-045 57/69 92/113 75/91 37/45 50/60
EM15-G3-045/P3-055 69/85 113/128 91/112 45/55 60/75
EM15-G3-055/P3-075 85/114 128/157 112/150 55/75 75/100
EM15-G3-075/P3-090 114/134 157/180 150/176 75/90 100/125
EM15-G3-090/P3-110 134/160 180/214 176/210 90/110 125/150
EM15-G3-110/P3-132 160/192 214/256 210/253 110/132 150/200
EM15-G3-132/P3-160 192/231 256/307 253/304 132/160 200/250
EM15-G3-160/P3-200 231/250 307/385 304/377 160/200 250/280
EM15-G3-200/P3-220 250/280 385/430 377/426 200/220 280/300
EM15-G3-220/P3-250 280/355 430/468 426/465 220/250 300/370
EM15-G3-250/P3-280 355/396 468/525 465/520 250/280 370/400
EM15-G3-280/P3-315 396/445 525/590 520/585 280/315 400/420
EM15-G3-315/P3-355 445/500 590/665 585/650 315/355 420/500
EM15-G3-355 500 665 650 355 500
EM15-G3-400 560 785 725 400 530
EM15-G3-450 630 883 820 450 600
EM15-G3-500 800 920 860 500 660

Application

Machine tool

Operating frequency can be up to 3000 Hz, suitable for drilling machine and carving and milling machine.

Big cutting forces, steady speed and high precision.

Can stable operation at high speed.

Terminal RS485 support 500k communication rate.

Various vector control can be applied to all kinds of machine tools.

Lifting equipment

Stable and reliable operation, with mechanical brake to realize halfway stop and start.

Compatible with YASKAWA independent protocol.

Wide operating voltage, low-voltage power shake can work continuously, strong environmental adaptability.

Multi-speed synchronous transmission performance is good; low-speed with large torque has heavy load capacity.

Large lifting torque, energy-saving.
