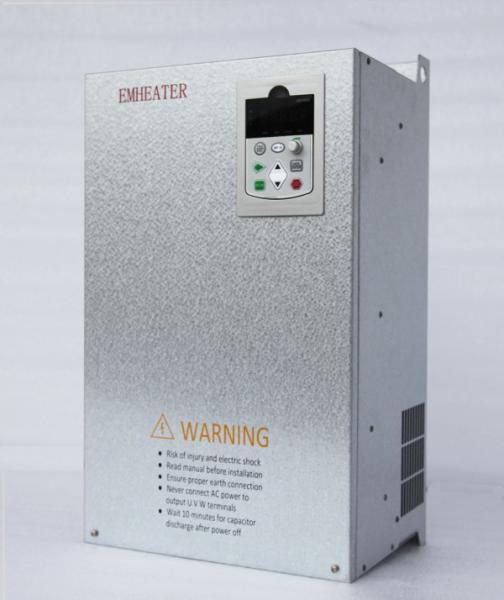

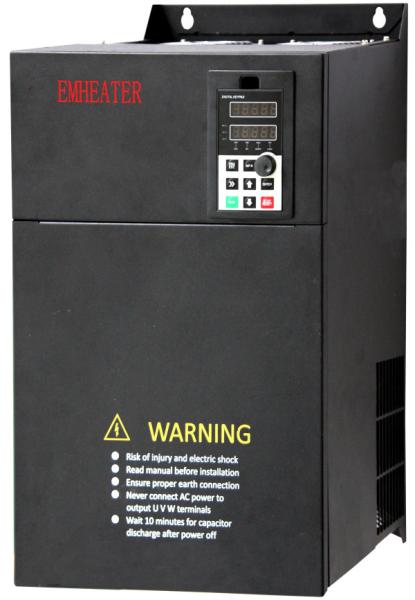

37KW 75A Ac Frequency Inverter 220 To 380 Volt Inverter For Motor
37KW 75A Ac Frequency Inverter 220 To 380 Volt Inverter For Motor
37KW 75A Ac Frequency Inverter 220 To 380 Volt Inverter For Motor
37KW 75A Ac Frequency Inverter 220 To 380 Volt Inverter For Motor
37KW 75A Ac Frequency Inverter 220 To 380 Volt Inverter For Motor
37KW 75A Ac Frequency Inverter 220 To 380 Volt Inverter For Motor
Specifications
Brand Name :
EMHEATER
Model Number :
EM15-G3-037
Certification :
CE,Rohs,3C
Place of Origin :
CHINA
MOQ :
1
Price :
Please contact quotation
Payment Terms :
T/T, Western Union
Supply Ability :
1000 units per week
Delivery Time :
1-7 work days
Packaging Details :
Carton Packing
Products Name :
Variable frequency inverters
Rated Power :
37KW
Input Voltage :
3 Phase 380V
Output Voltage :
3 PHASE 0~380V
Type :
AC to AC
Output Current :
75A
Color :
Black
Output Frequency :
0~3000Hz
Description

37KW Variable Frequency Inverters 380V AC motor speed controller
EM15 series frequency inverter is a brand new high-performance inverter. It is highly extensible and flexible with PG card, PLC card and communication card, meeting the demands of various industries. It mainly covering the applications of printing and packaging, winding equipment, paper machinery, shearing equipment, textile machinery, etc.

Products Feature

Support Various keyboard display
The screen of the EM15 series inverter is a two-line display, which can display more than 30 states such as frequency and current etc.

Fast current limit function
Fast current limit function prevents the inverter frequently over current alarm. When the current exceeds the protection points, fast current limit function can quickly limit current below protection point to protect the safety of equipment, and to avoid over-current alarm caused by suddenly adding load or interference.

Perfect hardware protection function
All series of hardware has three-phase protection, such as overload or over current or short circuit of any phase of the AC motor can be protected in time.

Technical Specifications

Output Voltage0~Rated input voltage
Output Frequency0~320Hz(SFC); 0~3200Hz (V/F)
Control ModeSensor-less vector control(SVC); Closed-loop vector control (FVC); Voltage/Frequency (V/F) control
Carrier Frequency0.5kHz~16kHz
Startup TorqueG type: 0.5Hz/150% (FVC); 0Hz/180%(FVC); P type: 0.5Hz/100%
Speed Range1:100(SVC);1:1000(FVC)
Torque BoostAuto boost; Manual boost 0.1%~30.0%
DC braking0.00Hz~maximum frequency (DC braking frequency); 0.0s~36.0s(Braking time); 0.0%~100.0%( Braking trigger current value)
Built-in Simple PLC / Multiple SpeedsIt realizes up to 16 speeds via the simple PLC function or combination of DI terminal states.
Built-in PIDIt realizes closed loop control system easily.
Auto voltage regulation (AVR)It can keep constant output voltage automatically when the mains voltage fluctuation
Overvoltage/ Overcurrent Stall ControlThe current and voltage are limited automatically during the running process so as to avoid frequently tripping due to overvoltage / over current.
Virtual I/OFive groups of virtual DI/DO can realize simple logic control.
Timing ControlTime range: 0.0~6500.0 minutes
Motor Overheat ProtectionThe optional I/O extension card enables AI3 to receive the motor temperature sensor input (PT100, PT1000) so as to realize motor overheat protection.
Multiple Encoder TypesIt supports differential encoder, open-collector encoder
Protection ModeMotor short-circuit detection at power-on, input/output phase loss protection, over current and overvoltage protection, less voltage protection, overheat protection and overload protection,etc
Running Command Givingkey panel; Control terminals; Serial communication port; You can switch between these giving in various ways.

Model

Power Capacity (KVA)

Input Current
(A)

Output Current
(A)

Adaptable Motor

KW

HP

Three phase 380V 50/60Hz
EM15-G3-d75/P3-1d51.5/35/5.82.1/3.80.75/1.51/2
EM15-G3-1d5/P3-2d23/45.8/10.53.8/5.11.5/2.22/3
EM15-G3-2d2/P3-0044/5.910.5/14.65.1/92.2/3.73/5
EM15-G3-004/P3-5d55.9/8.914.6/20.59/133.7/5.55/7.5
EM15-G3-5d5/P3-7d58.9/1120.5/2613/175.5/7.57.5/10
EM15-G3-7d5/P3-01111/1726/3517/257.5/1110/15
EM15-G3-011/P3-01517/2135/38.525/3211/1515/20
EM15-G3-015/P3-01821/2438.5/46.532/3715/18.520/25
EM15-G3-018/P3-02224/3046.5/6237/4518.5/2225/30
EM15-G3-022/P3-03030/4062/7645/6022/3030/40
EM15-G3-030/P3-03740/5776/9260/7530/3740/50
EM15-G3-037/P3-04557/6992/11375/9137/4550/60
EM15-G3-045/P3-05569/85113/12891/11245/5560/75
EM15-G3-055/P3-07585/114128/157112/15055/7575/100
EM15-G3-075/P3-090114/134157/180150/17675/90100/125
EM15-G3-090/P3-110134/160180/214176/21090/110125/150
EM15-G3-110/P3-132160/192214/256210/253110/132150/200
EM15-G3-132/P3-160192/231256/307253/304132/160200/250
EM15-G3-160/P3-200231/250307/385304/377160/200250/280
EM15-G3-200/P3-220250/280385/430377/426200/220280/300
EM15-G3-220/P3-250280/355430/468426/465220/250300/370
EM15-G3-250/P3-280355/396468/525465/520250/280370/400
EM15-G3-280/P3-315396/445525/590520/585280/315400/420
EM15-G3-315/P3-355445/500590/665585/650315/355420/500
EM15-G3-355500665650355500
EM15-G3-400560785725400530
EM15-G3-450630883820450600
EM15-G3-500800920860500660

37KW 75A Ac Frequency Inverter 220 To 380 Volt Inverter For Motor37KW 75A Ac Frequency Inverter 220 To 380 Volt Inverter For Motor

37KW 75A Ac Frequency Inverter 220 To 380 Volt Inverter For Motor​

Application

Stone, brick and wood

Energy saving, big torque quickly move up and down.

Torque current control uniform cutting and big torque with low speed.

Start and stop quickly, built-in crafts control.

Steady speed with high accuracy and big torque, high yield of production ratio.

Fan &Water Pump/Air compressor

Support built-in Speed tracking card.

Built -in Pressure closed loop and dormancy awakening, protection function of over pressure.

Built -in extension water supply card, realized one drive for multiple pumps with clock function.

Realized thermostatic control, high Energy-saving rate.
Small volume and high efficiency, frequency inverter and air compressor be used cooperatively

Q&A


What's about your delivery time?
All type we have stock,after we receive payment,we will send you within two days.

How can we guarantee quality?

EMHEATER frequency inverter passed IEC test and has CE certificate. Each piece of VFD will have 4 testing before delivery, follow ISO 9001 standard. We offer high quality VFD.

Always a pre-production sample before mass production;

Always final Inspection before shipment;


What's the delivery term?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDU, etc.
