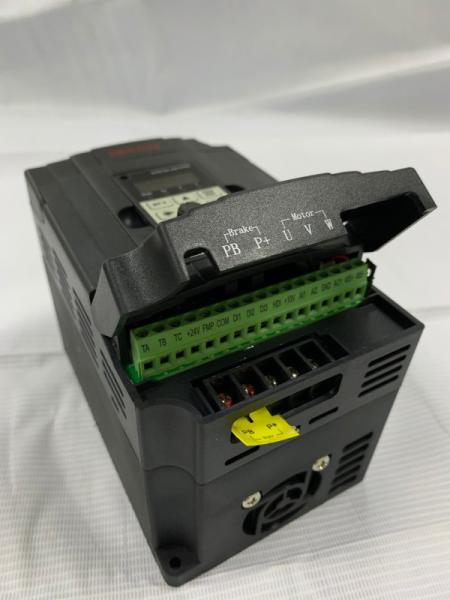

1.5KW 3phase 380V VSD Variable Speed Drive Vsd Inverter For Pump
1.5KW 3phase 380V VSD Variable Speed Drive Vsd Inverter For Pump
1.5KW 3phase 380V VSD Variable Speed Drive Vsd Inverter For Pump
1.5KW 3phase 380V VSD Variable Speed Drive Vsd Inverter For Pump
Specifications
Brand Name :
EMHEATER
Model Number :
EM15-G3-1d5
Certification :
CE,Rohs,3C
Place of Origin :
CHINA
MOQ :
1
Price :
Please contact quotation
Payment Terms :
T/T, Western Union
Supply Ability :
1000 units per week
Delivery Time :
1-6 work days
Packaging Details :
Carton Packing
Products Name :
VSD Variable Speed Drive
Rated Power :
1.5KW
Input Voltage :
3 Phase 380V
Output Voltage :
3 PHASE 0~380V
Type :
AC to AC
Output Current :
3.8A
Color :
Black
Output Frequency :
0~3000Hz
Description

Quality inverter 1.5KW 3phse 380V VSD Variable Speed Drive for pump

EM15 is a new-generation inverter developed independently by EMHEATER, featuring low noise, hight performance and multiple functions. It adopts the rotor field-oriented vector control strategy to realize high-accuracy, wide-range speed and torque control of the motor.

Products Feature

Support various motor's control mode
Support V/F control, Sensor-less vector control and Closed-loop vector control.
Support several of encoder.

High starting torque character
150% starting torque at 0.5Hz(Open loop vector control without PG)
180% starting torque at 0Hz(Closed vector control with PG)

Support Various keyboard display
The screen of the EM15 series inverter is a two-line display, which can display more than 30 states such as frequency and current etc.

Technical Specifications

Output Voltage0~Rated input voltage
Output Frequency0~320Hz(SFC); 0~3200Hz (V/F)
Control ModeSensor-less vector control(SVC); Closed-loop vector control (FVC); Voltage/Frequency (V/F) control
Carrier Frequency0.5kHz~16kHz
Startup TorqueG type: 0.5Hz/150% (FVC); 0Hz/180%(FVC); P type: 0.5Hz/100%
Speed Range1:100(SVC);1:1000(FVC)
Speed Stability Accuracy±0.5%(SVC);±0.02%(FVC)
Torque Control Accuracy±5%(FVC)
Overload CapacityG type:150% rated current 60s; 180% rated current 3s; P type: 120% rated current 60s;150% rated current 3s.
Programmable Open Collector Output1 FMP output terminal, that supports 0–100 kHz square wave signal output (Can be used as DO output)
Programmable Analog Output2 analog output (AO) terminals, both of them supports 0mA~20mA current output and 0V~10V voltage output.
Relay Output2 relay output terminal (2.2KW and below only have 1 relay output terminal)
Installation LocationIndoor, no direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapour, drip or salt.
AltitudeLower than 1000m
Ambient Temperature-10°C~ +40°C (de-rated if the ambient temperature is between 40°C and 50°C)
HumidityLess than 95%RH, without condensing
VibrationLess than 5.9 m/s2 (0.6 g)
Storage Temperature-20°C ~ +60°C

Model

Power Capacity (KVA)

Input Current
(A)

Output Current
(A)

Adaptable Motor

KW

HP

Three phase 380V 50/60Hz
EM15-G3-d75/P3-1d51.5/35/5.82.1/3.80.75/1.51/2
EM15-G3-1d5/P3-2d23/45.8/10.53.8/5.11.5/2.22/3
EM15-G3-2d2/P3-0044/5.910.5/14.65.1/92.2/3.73/5
EM15-G3-004/P3-5d55.9/8.914.6/20.59/133.7/5.55/7.5
EM15-G3-5d5/P3-7d58.9/1120.5/2613/175.5/7.57.5/10
EM15-G3-7d5/P3-01111/1726/3517/257.5/1110/15
EM15-G3-011/P3-01517/2135/38.525/3211/1515/20
EM15-G3-015/P3-01821/2438.5/46.532/3715/18.520/25
EM15-G3-018/P3-02224/3046.5/6237/4518.5/2225/30
EM15-G3-022/P3-03030/4062/7645/6022/3030/40
EM15-G3-030/P3-03740/5776/9260/7530/3740/50
EM15-G3-037/P3-04557/6992/11375/9137/4550/60
EM15-G3-045/P3-05569/85113/12891/11245/5560/75
EM15-G3-055/P3-07585/114128/157112/15055/7575/100
EM15-G3-075/P3-090114/134157/180150/17675/90100/125
EM15-G3-090/P3-110134/160180/214176/21090/110125/150
EM15-G3-110/P3-132160/192214/256210/253110/132150/200
EM15-G3-132/P3-160192/231256/307253/304132/160200/250
EM15-G3-160/P3-200231/250307/385304/377160/200250/280
EM15-G3-200/P3-220250/280385/430377/426200/220280/300
EM15-G3-220/P3-250280/355430/468426/465220/250300/370
EM15-G3-250/P3-280355/396468/525465/520250/280370/400
EM15-G3-280/P3-315396/445525/590520/585280/315400/420
EM15-G3-315/P3-355445/500590/665585/650315/355420/500
EM15-G3-355500665650355500
EM15-G3-400560785725400530
EM15-G3-450630883820450600
EM15-G3-500800920860500660

1.5KW 3phase 380V VSD Variable Speed Drive Vsd Inverter For Pump

1.5KW 3phase 380V VSD Variable Speed Drive Vsd Inverter For Pump
​1.5KW 3phase 380V VSD Variable Speed Drive Vsd Inverter For Pump1.5KW 3phase 380V VSD Variable Speed Drive Vsd Inverter For Pump

Application

Stone, brick and wood

Energy saving, big torque quickly move up and down.

Torque current control uniform cutting and big torque with low speed.

Start and stop quickly, built-in crafts control.

Steady speed with high accuracy and big torque, high yield of production ratio.

Fan &Water Pump/Air compressor

Support built-in Speed tracking card.

Built -in Pressure closed loop and dormancy awakening, protection function of over pressure.

Built -in extension water supply card, realized one drive for multiple pumps with clock function.

Realized thermostatic control, high Energy-saving rate.
Small volume and high efficiency, frequency inverter and air compressor be used cooperatively

Plastics processing /Extrusion processing

Standard inverter cabinet with injection molding signal card.

Energy saving cabinet built in inverter and bypass.

Built in charging function to support mode of contract saving energy.

Extrusion force is big, Avoid tripping, uniform extruding flow.

Quickly and strong force output, Multiple pumps have good synchronization performance.

High energy-saving rate, with conversion of inverter and grid power.

Q&A

What can you buy from us?

Soft Starter, Frequency Inverter, Servo motor and drive.

How can we guarantee quality?

EMHEATER frequency inverter passed IEC test and has CE certificate. Each piece of VFD will have 4 testing before delivery, follow ISO 9001 standard. We offer high quality VFD.


What's the delivery term?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDU, etc
