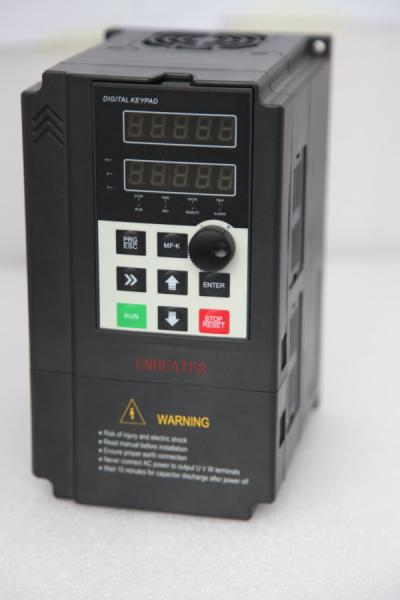

25HP Inverter Solar Pump DC 250V To DC 750V 400Hz Spindle Motor Inverter
25HP Inverter Solar Pump DC 250V To DC 750V 400Hz Spindle Motor Inverter
25HP Inverter Solar Pump DC 250V To DC 750V 400Hz Spindle Motor Inverter
25HP Inverter Solar Pump DC 250V To DC 750V 400Hz Spindle Motor Inverter
25HP Inverter Solar Pump DC 250V To DC 750V 400Hz Spindle Motor Inverter
25HP Inverter Solar Pump DC 250V To DC 750V 400Hz Spindle Motor Inverter
Specifications
Brand Name :
EMHEATER
Model Number :
EM15-SP3-018
Certification :
CE,Rohs,3C
Place of Origin :
CHINA
MOQ :
1
Price :
Please contact quotation
Payment Terms :
T/T, Western Union
Supply Ability :
1000 units per week
Delivery Time :
3-8 work days
Packaging Details :
Standard packing
Products Name :
Solar Pump Inverters
Rated Power :
25HP
Input Voltage :
350V~750V
Output Voltage :
3 PHASE 0~380V
Type :
DC to AC
Output Current :
37A
Output Frequency :
0~600Hz
Color :
Black
Description

25HP Solar Pump Inverters DC 250V to DC 750V 400Hz for Spindle motor

EM15-SP series solar inverter is high-efficiency solar water pump controller, which with high MPPT efficiency, green environmental protection, economic and energy saving, widely use for agricultural irrigation, water supply system and etc.

Products Feature:

Maintenance costs
Use and maintenance:The solar energy system life for up to 25 years,and low failure rate , Automatic operation ,
Don't need someone to watch,Maintenance personnel can be divided into many groups to patrol.

Low carbon environmental protection
Low carbon emissions:Can reduce the traditional energy consumption, No noise,Carbon emissions from almost zero,Practice a low carbon economy.

  • Support voltage and power range: Single phase or three phase 220V, Three phase 380V; Power is from 0.75kW to 400KW.
  • Easy to use, built in water pump protection functions.
  • The water level detection functions, which can support terminal /analog detection.

EM15-SP3

Description

d751d52d20045d57d5011015018022030037045
055075090110132160200220250280315355400
DC input (+, -)
Rated power/KW0.751.52.245.57.5111518.522303745
557590110132160200220250280315355400
Min. DC voltage/V280
Max.DC voltage/V750
Recommended MPPT range /V350~750
AC output(U, V, W)
Output current2.13.85.19131725323745607591
112150176210253304377426465520585650725
Output frequency0~50/60Hz
Power factor>0.99
Communication modeRS485 communication
Protection classIP20
Ambient temperature-10℃~ +40℃(ambient temperation at 40℃~50℃,please keep derated use)
Storage temperature-20℃~ +60℃
HumiditySmaller than 95%RH, non-condensation
CoolingForced Air cooling
AltitudeLower than 1000 m
HumidityLess than 95%RH, without condensing
VibrationLess than 5.9 m/s2 (0.6 g)

25HP Inverter Solar Pump DC 250V To DC 750V 400Hz Spindle Motor Inverter

25HP Inverter Solar Pump DC 250V To DC 750V 400Hz Spindle Motor Inverter25HP Inverter Solar Pump DC 250V To DC 750V 400Hz Spindle Motor Inverter25HP Inverter Solar Pump DC 250V To DC 750V 400Hz Spindle Motor Inverter

Q&A

How can we guarantee quality?

EMHEATER frequency inverter passed IEC test and has CE certificate. Each piece of VFD will have 4 testing before delivery, follow ISO 9001 standard. We offer high quality VFD.

Always a pre-production sample before mass production;

Always final Inspection before shipment;

What can you buy from us?

Soft Starter, Frequency Inverter, Servo motor and drive

Why should you buy from us not from other suppliers?

We have 6 factories and more than 820 staff. As a professional manufacturer of industrial automation products, we are always dedicated to soft starter, frequency inverter, servo motor and drive, EMI filters, harmonic wave AC choke, sine wave filter.
