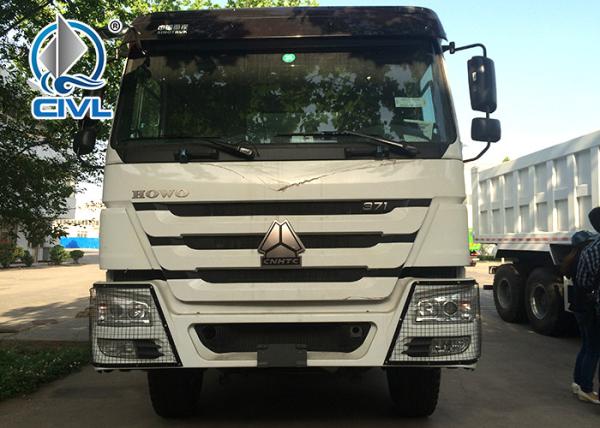

6x4 HOWO Heavy Duty Dump Truck EURO III in White Yellow and Red Single Row Cab Tipper Truck
International Market:Ethiopia/Africa/Uganda/Chad/Zambia/Tanzania/Liberia/Myanmar
/Cambodia/Thailand/Malaysia/
Application:
It is suitable for in harsh environments, unloading and transport ore and others.
Specifications:
1. howo 6X4 270 hp dumper trucks
2. MAN technologhy
3. large loading capacity
4. large power
HOWO 6X4 270 hp dumper trucks
Truck Model No: | ZZ3257M2949B H3/270/K29/6x4BA |
Gross weight kg | 25000 |
curb weight kg | 11910 |
Rated load quality kg | 12960 |
Max. Speed (Km/h) | 78 |
Cab | HW70 cab, no sleeper, with air conditioner |
Engine
| Make : SINOTRUK Diesel: 4-stroke direct injection diesel engine Engine model : WD615.92C, EURIII emission , new design on intake & exhaust system, power and fuel economy get improved 6-cylinder in-line with water cooling, turbo-charging and intercooling Max. output : 270Hp at 2200 rpm Displacement : 9.726L |
Transmission | HW15710 ,10gear transmission SINOTRUK 10 forward & 2 Ratio:14.28 Torque: 1900Nm |
clutch | SINOTRUK Φ430 C size clutch |
Driving Axle
| AC16 Strengthen widen whole steel-cast 16T off road axle with double decelerator and double tires Ratio:4.77 |
Front axle | HF9 steel-cast 9T font axle,stick brake |
Braking system
| Service brake: dual circuit compressed air brake Parking brake: spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Option:ABS |
Electrical System | Operating voltage:24V, negative grounded |
Steering | ZF8098 German Hydraulic steering with powder assistance |
Wheel & Tyres | 12.00-20 No.of Tyres:10+1 |
No. of Spring | 10/12 |
Front/ Rear axles loading capacity (kg) | 7000 /18000 |
No. of axles | 3 |
Wheel base mm | 2925+1350 |
Front/ Rear wheel track mm | 2022/1830 |
Front/Rear hanging mm | 1540/1550 |
Approach/ Departure angle (°) | 19 /30 |
Dimensions(L×W×H) (mm) | 7356*2496*3170 |
Van dimension mm | 4800*2300*1200 F style lifting cylinder Thickness: floor 8mm side 6mm |
Package&Shipping:
Company Introduction:
SINO HEAVY MACHINERY CO.,LTD. Is a professional supplier of various SINOTRUK brand trucks with more than 30 years manufacturing and exporting experience.
We mainly focus on various trucks' R&D,Producing and sales kinds of trucks with different function,such as heavy duty/medium duty/light duty truck,mining tipper,tractor truck,various construction project equipment etc...
Our all products with world-known brands spare parts,such as ZF steering and oil pump;WABCO braking system;VOSS braking connectors made in Germany;MANN+HUMMEL fuel filer system and air filter;VOD instrument and electric control block;German BEHR cooling system etc...Those high quality parts supplying ensure our products the first-class quality level and excellent driving performance.
Till now we have exported more than 30 countries and areas including Asia,Southeast Asia,Africa,South Africa etc..
We are committed to help more countries customer's engineering construction, make the world more harmonious and beautiful!
Quality Inspection:
Service:
Pre-service:
After-sale service:
