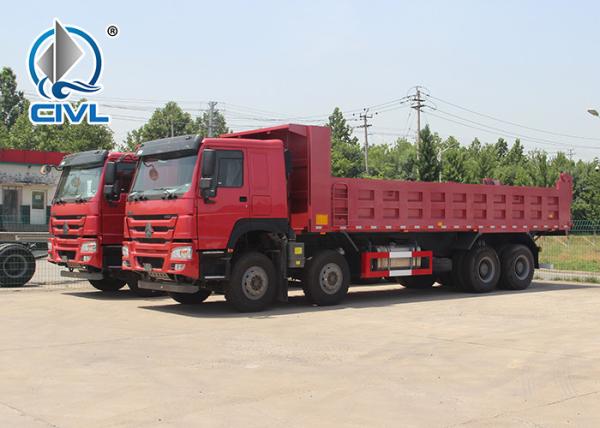

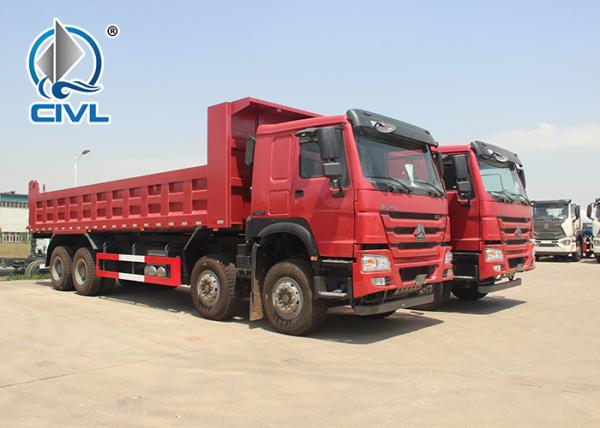

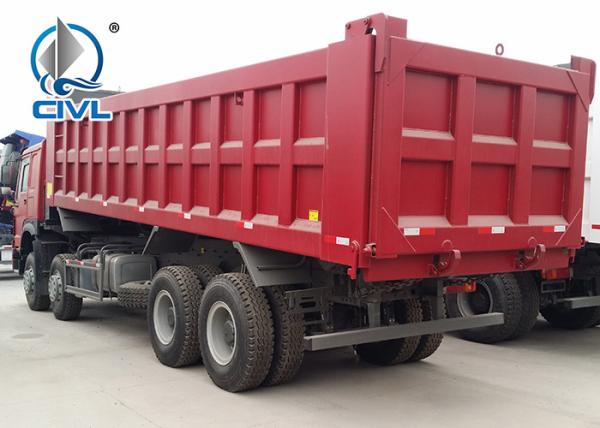

60 Ton 371hp EuorII Heavy Duty 8x4 Dump Truck With Front Lift HW76 Cab Howo Tipper Truck
60 Ton 371hp EuorII Heavy Duty 8x4 Dump Truck With Front Lift HW76 Cab Howo Tipper Truck
60 Ton 371hp EuorII Heavy Duty 8x4 Dump Truck With Front Lift HW76 Cab Howo Tipper Truck
60 Ton 371hp EuorII Heavy Duty 8x4 Dump Truck With Front Lift HW76 Cab Howo Tipper Truck
60 Ton 371hp EuorII Heavy Duty 8x4 Dump Truck With Front Lift HW76 Cab Howo Tipper Truck
60 Ton 371hp EuorII Heavy Duty 8x4 Dump Truck With Front Lift HW76 Cab Howo Tipper Truck
60 Ton 371hp EuorII Heavy Duty 8x4 Dump Truck With Front Lift HW76 Cab Howo Tipper Truck
60 Ton 371hp EuorII Heavy Duty 8x4 Dump Truck With Front Lift HW76 Cab Howo Tipper Truck
60 Ton 371hp EuorII Heavy Duty 8x4 Dump Truck With Front Lift HW76 Cab Howo Tipper Truck
60 Ton 371hp EuorII Heavy Duty 8x4 Dump Truck With Front Lift HW76 Cab Howo Tipper Truck
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
1000units/month
Delivery Time :
Within 35 days
Packaging Details :
nude
material :
Q345 or Q235
color :
red,white ,black ,yellow ..etc
logo :
option
warranty :
yes
spare parts :
option
Drive wheel :
8x4
Condition :
New
Transmission type :
Manual
Horsepower :
351 - 450hp
Emission standard :
Euro 2,Euro 3
Description

8x4 371hp EuorII 60T heavy duty dump truck With front lift and HW76 cab Howo tipper truck

Description:
Our HOWO dump truck has the cab that is mainly classified as HW70 standard type and HW76 lengthened type. The engine power is 266PS, 290PS, 336PS, 375PS, or others. The compartment length is 4.8 to 8.5 meters. The artificially intelligent design is the most important form to demonstrate the competitive advantage of product technology and to safeguard the interests of customers. The HOWO heavy duty vehicle employs the Chinese-original artificially-intelligent technology, which has reached the international level.

Specification

Truck Model ZZ3317N2867W-1
Truck Brand SINOTRUK –HOWO
Driving Type Left Hand Drive
Dimension(Lx W xH)(unloaded)(mm) 11145x2496x3450
Cargo body size (L*W*H, mm) 8200x2300x1500 28.3m3
Cargo body thickness(mm) bottom:8mm, side:4mm
Lift type of Carriage Front Lift
Approaching angle/Departure angle(°) 19/24
Overhang(front/rear) (mm) 1500/1895
Wheel base (mm) 1800+4600+1350
Max speed(km/h) 80
Curb weight(kg) 15440
Total weight(kg) 50000
Fuel tanker capacity(L) 300L or 600L
Fuel consumption(L/km) 20-40 L/100 km
Clutch Single-plate dry clutch Φ430mm
Engine Model
( technology, made in China)		 Fuel type Diesel
Horse Power, max(kw/rpm) 336HP
Emission EURO II
Model WD615.69
Transmission Model HW19710
Brake system Service brake Dual circuit compressed air brake
Parking brake spring energy, compressed air operating on rear wheels
Auxiliary brake Engine exhaust brake
Steering system Model ZF8118
hydraulic steering with power assistance
Front axle HF9, Steering with double T-cross section beam
Loading capacity: 9000kg
Rear axle HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels
Loading capacity:13000kg
Ratio:3.93/4.42/4.80/5.73
Color Optional
Tire 12.00-20
Tire quantity 12+1 spare=13 tires
Electrical system Battery 2X12V/165Ah
Alternator 28V-1500kw
Starter 7.5Kw/24V
Cab HOWO76 cab, one sleeper with air-condition, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers




Competitive Advantage
1 Rich Experience in sale of the Sinotruk’s heavy equipment & truck.

2 Expert in kinds of heavy trucks and spare parts.

3 Personalized customization to meet your working requirements.

4 High quality of Original parts & OEM services.

Package&Shipping:
60 Ton 371hp EuorII Heavy Duty 8x4 Dump Truck With Front Lift HW76 Cab Howo Tipper Truck60 Ton 371hp EuorII Heavy Duty 8x4 Dump Truck With Front Lift HW76 Cab Howo Tipper Truck60 Ton 371hp EuorII Heavy Duty 8x4 Dump Truck With Front Lift HW76 Cab Howo Tipper Truck60 Ton 371hp EuorII Heavy Duty 8x4 Dump Truck With Front Lift HW76 Cab Howo Tipper Truck


Quality Inspection:
60 Ton 371hp EuorII Heavy Duty 8x4 Dump Truck With Front Lift HW76 Cab Howo Tipper Truck60 Ton 371hp EuorII Heavy Duty 8x4 Dump Truck With Front Lift HW76 Cab Howo Tipper Truck60 Ton 371hp EuorII Heavy Duty 8x4 Dump Truck With Front Lift HW76 Cab Howo Tipper Truck
Service:


Pre-service:

  1. Inquiry and Consulting support.
  2. Sample testing support.
  3. View our factory.
  4. Design various solutions as buyer's requirement.


After-sale service:

  1. Training how to use and maintain the truck.
  2. Our engineers supply the support of technology.
  3. 12 months warranty for 3 key spare parts(Engine,Transmission,Axle)
  4. Parts supply on time.
  5. 24 hours service and technology support.

Other products:

Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( 54873020, 54798871, 54798867, 54633157, 54622108, 54621778, 54621524, water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
