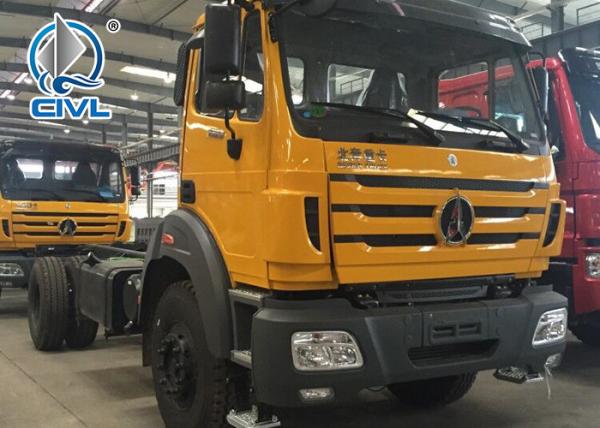

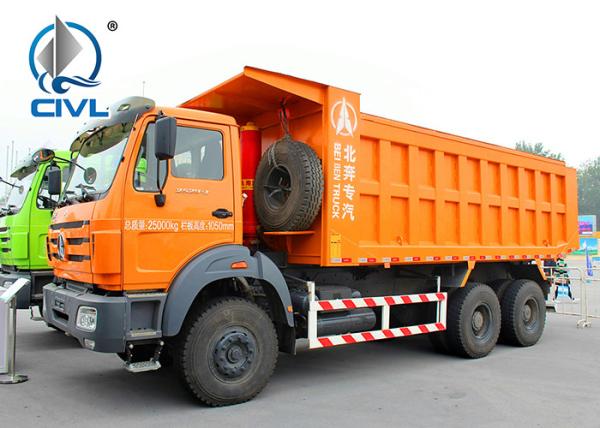

Beiben famous brand 6x4 style 20T Heavy Duty Dump Truck 10 Forwards 2 Reverse
Beiben famous brand 6x4 style 20T Heavy Duty Dump Truck 10 Forwards 2 Reverse
Beiben famous brand 6x4 style 20T Heavy Duty Dump Truck 10 Forwards 2 Reverse
Beiben famous brand 6x4 style 20T Heavy Duty Dump Truck 10 Forwards 2 Reverse
Beiben famous brand 6x4 style 20T Heavy Duty Dump Truck 10 Forwards 2 Reverse
Beiben famous brand 6x4 style 20T Heavy Duty Dump Truck 10 Forwards 2 Reverse
Beiben famous brand 6x4 style 20T Heavy Duty Dump Truck 10 Forwards 2 Reverse
Beiben famous brand 6x4 style 20T Heavy Duty Dump Truck 10 Forwards 2 Reverse
Beiben famous brand 6x4 style 20T Heavy Duty Dump Truck 10 Forwards 2 Reverse
Beiben famous brand 6x4 style 20T Heavy Duty Dump Truck 10 Forwards 2 Reverse
Specifications
Brand Name :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
1000units/month
Delivery Time :
Within 35 days
Packaging Details :
nude
Model Number :
CIVL
material :
Q345
color :
option
brand :
beiben
condition :
new
Drive wheel :
6x4
Fuel type :
Diesel
Horsepower :
351 - 450hp
Emission standard :
Euro 2,Euro 3,Euro 4
Color :
Red yellow blue green
Description

Beiben famous brand 6x4 style 20T dump truck new condition

GVW25000kg Driving Type 6x4
Model CLW5250ZLJN
Cab NG80 single row, allowable 2 passengers, air conditioner
Engine(Hp) 290
Power(Kw) 213
Wheelbase 3800+1350
Front/Rear Suspension 1410/1750
Steering Power steering
Approach/departure angle 17/16
Wheels & tire 12.00R20
Tire number 10+1
Tank Dimensions(mm) 5400,5600×2300×1500
Cubage (m3) 18/20
Steel thickness Side 6 ,Bottom 8
RHD or LHD optional
Overall Dimensions(mm) 8400,8600×2500×3450
Curb weight (Kg) 12300
Engine Model WP10.290
Horsepower 290
Maximum output Kw 213
Maximum torque N.m 1250
Type 6cylinders, in-line,4-stroke,direcly injection, turbo inter-cooling, diesel engine
Displacement 9.726L
Weichai brand, Euro 3
Driving passenger 2,3
Transmission 10 forwards,2 reverse
Front Axle 7.5T
Rear Axle 13T
Brake System

air brake

exhaust brake
Color and LOGO customized
Electric system 24V
Standard configuration The dump is unloaded from behind, hydraulic cover is optional. The side protection using cold-formed steel /Q235-A, bolt connection. The back protection using cold-formed steel /Q235-A, welding connection. Side 6mm, bottom 8mm.
Delivery date Within 20 days after receipt advance
Packing Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.

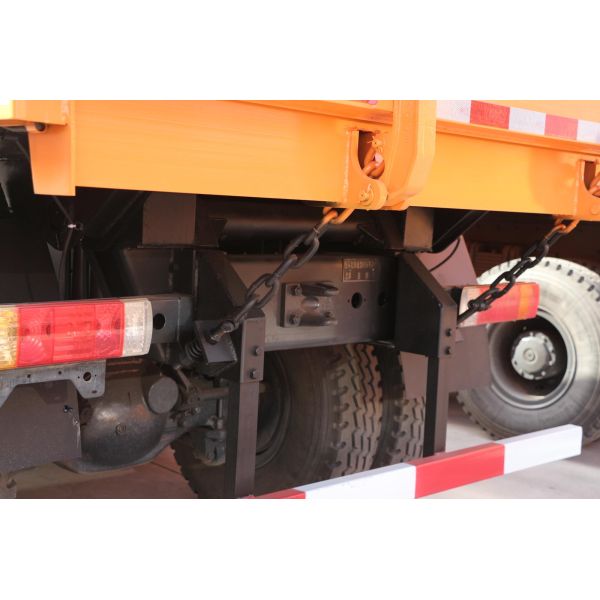

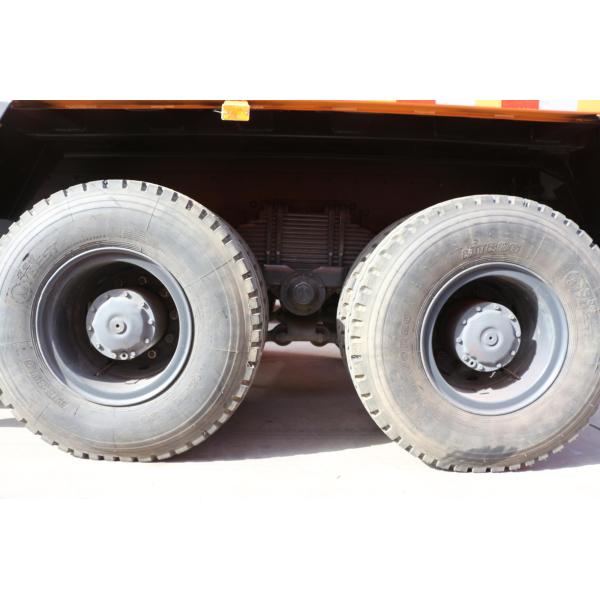

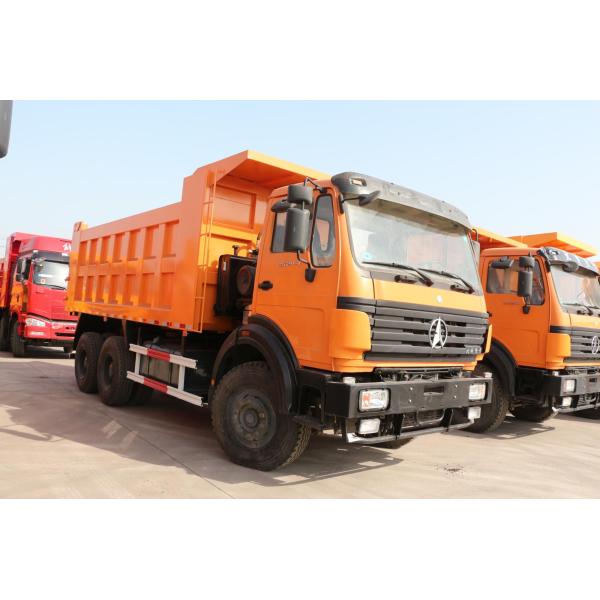

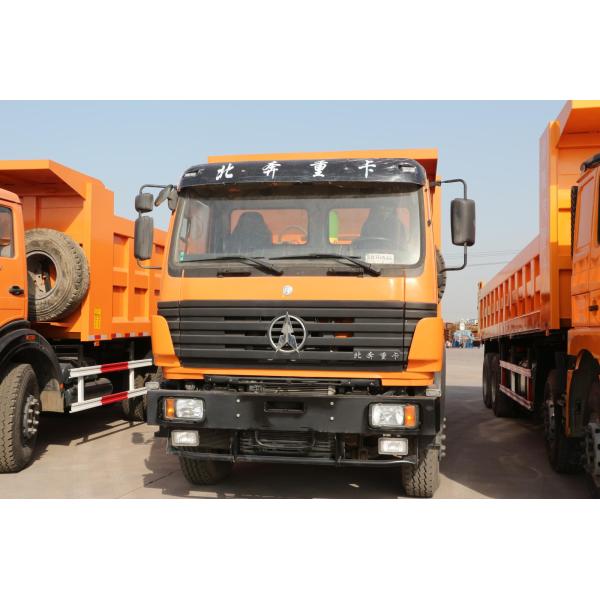

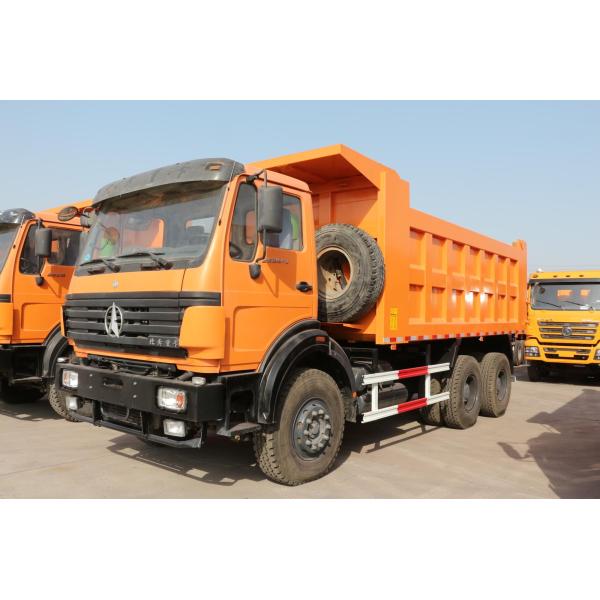

Detailed Images

Beiben famous brand 6x4 style 20T Heavy Duty Dump Truck 10 Forwards 2 ReverseBeiben famous brand 6x4 style 20T Heavy Duty Dump Truck 10 Forwards 2 ReverseBeiben famous brand 6x4 style 20T Heavy Duty Dump Truck 10 Forwards 2 ReverseBeiben famous brand 6x4 style 20T Heavy Duty Dump Truck 10 Forwards 2 ReverseBeiben famous brand 6x4 style 20T Heavy Duty Dump Truck 10 Forwards 2 ReverseBeiben famous brand 6x4 style 20T Heavy Duty Dump Truck 10 Forwards 2 Reverse

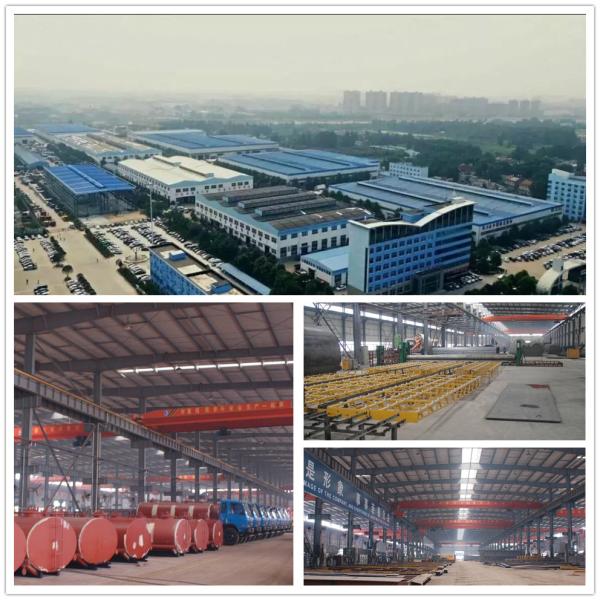

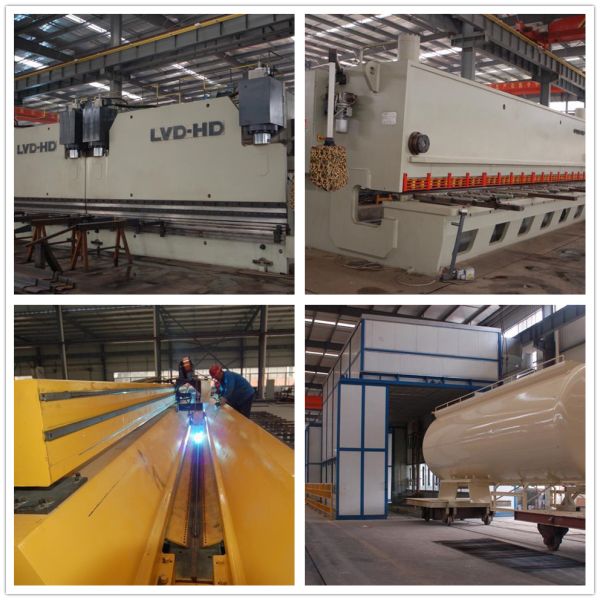

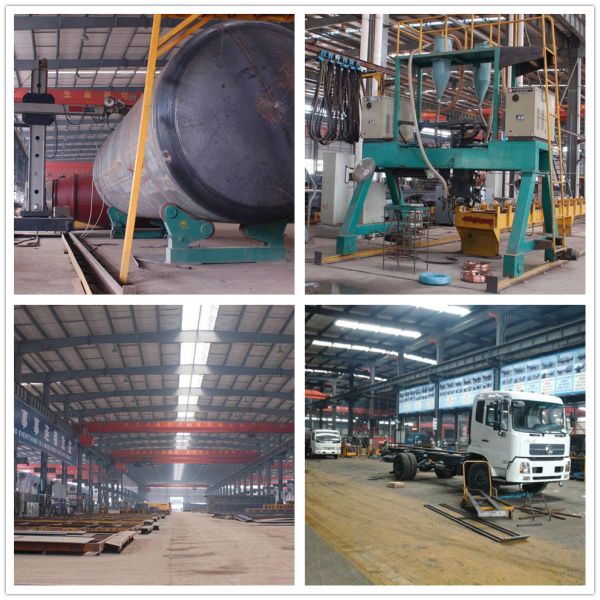

Company Information

Beiben famous brand 6x4 style 20T Heavy Duty Dump Truck 10 Forwards 2 ReverseBeiben famous brand 6x4 style 20T Heavy Duty Dump Truck 10 Forwards 2 ReverseBeiben famous brand 6x4 style 20T Heavy Duty Dump Truck 10 Forwards 2 ReverseBeiben famous brand 6x4 style 20T Heavy Duty Dump Truck 10 Forwards 2 Reverse

Customer Visit

Beiben famous brand 6x4 style 20T Heavy Duty Dump Truck 10 Forwards 2 Reverse

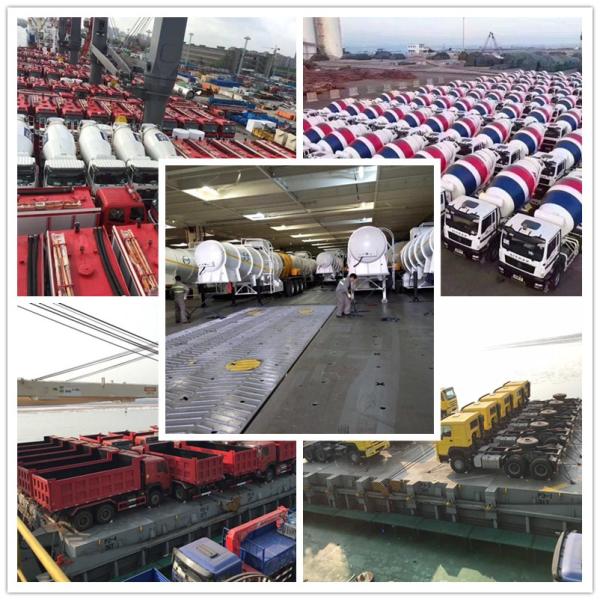

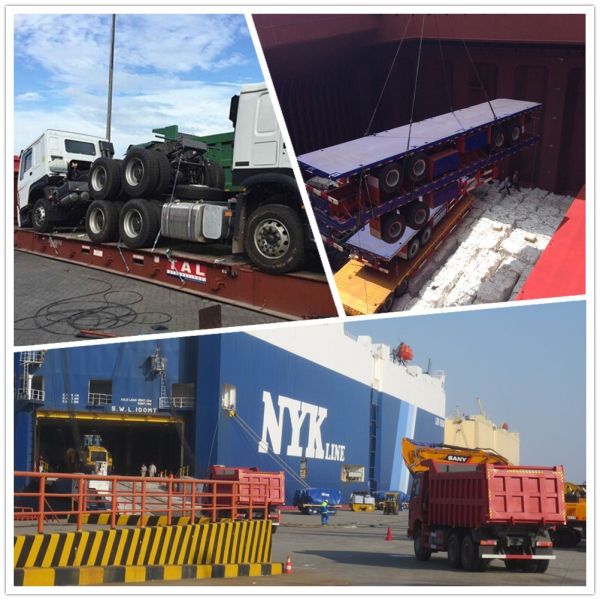

Packaging & Shipping

1.The main machine nude, attached parts and tools put into standard export box
2.Within 20 days deliver the goods to main Port
3. Ro-Ro ship or bulk ship or according to customer requiring
4.We have professional forwarding partners

Beiben famous brand 6x4 style 20T Heavy Duty Dump Truck 10 Forwards 2 Reverse

Other products:

Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( 54873020, 54798871, 54798867, 54633157, 54622108, 54621778, 54621524, water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
