Sinotruk HOWO ZZ3257M3857A 30T Load STR Axle 6x6 Tipper Truck Hyva Dumper Truck
Sinotruk HOWO ZZ3257M3857A 30T Load STR Axle 6x6 Tipper Truck Hyva Dumper Truck
Sinotruk HOWO ZZ3257M3857A 30T Load STR Axle 6x6 Tipper Truck Hyva Dumper Truck
Sinotruk HOWO ZZ3257M3857A 30T Load STR Axle 6x6 Tipper Truck Hyva Dumper Truck
Sinotruk HOWO ZZ3257M3857A 30T Load STR Axle 6x6 Tipper Truck Hyva Dumper Truck
Sinotruk HOWO ZZ3257M3857A 30T Load STR Axle 6x6 Tipper Truck Hyva Dumper Truck
Sinotruk HOWO ZZ3257M3857A 30T Load STR Axle 6x6 Tipper Truck Hyva Dumper Truck
Sinotruk HOWO ZZ3257M3857A 30T Load STR Axle 6x6 Tipper Truck Hyva Dumper Truck
Sinotruk HOWO ZZ3257M3857A 30T Load STR Axle 6x6 Tipper Truck Hyva Dumper Truck
Sinotruk HOWO ZZ3257M3857A 30T Load STR Axle 6x6 Tipper Truck Hyva Dumper Truck
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
6000 units per week
Delivery Time :
Within 35 days
Packaging Details :
Nude
Drive way :
6x6
Truck type :
ZZ3257M3857A
Horsepower :
290hp
Axle :
STR
Load capacity :
30T
Tire :
1200R20
Description

30T Load STR Axle 6x6 tipper truck hyva dumper truck

Description:

30T Load STR Axle 6x6 tipper truck hyva dumper truck

All-wheel drive sport utility vehicle series is China's heavy truck integrated use of the current world of advanced automotive technology,

the choice of proven components assembly developed a series of products.

HOWO6 × 6 all-wheel drive can be used as transport vehicles, various types of transport, fuel trucks, all types of transportation equipment chassis, suitable for off-road transport, towing equipment, transport operations oil, mining, forestry, fire fighting equipment and various types of special vehicle modification needs .

Specifications:

Model

6x6 dump truck Based on using STR technology

Cabin

Air suspension short flat cab, Hydraulic shock absorb adjustable seat, Safety belt,

Adjustable steering, Sunroof, sun cap, single bunk

Engine

Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.

Model:

290HP/280kw

WEICHAI engine

Displacement(L):

9.726liter

Max torque:

1460NM@1400-1600rpm

Bore/stoke:

126mm/130mm

Fuel consumption:

<198g /kwh

Gear box

American technology

Max torque:1600NM

Model:

HW15710C

Speed:

15speed, 2reverse

Axle(front/rear)

Front axle

9T STR technology non-driving steering axle

Tandem

16T STR technology double reduction, hub redactor driving axle

Clutch

D430 diaphragm type, single dry frictional disc, hydraulic boosting

Brake

Service brake: Double circuit pneumatic brake

Parking brake: Spring-Power drum brake

Engine brake: Engine exhaust brake (EVB)

Steering

ZF8118, driver sit at the Left hand side, RHD is optional

Electric Equipment

Operating voltage:

24Vnegative grounded

Starter:

24V,5.4KW

Alternator

28V,758W

Battery voltage

12V/135Ah, cigar lighter

Frame

Strengthen steel frame, designed according to tough road condition.

Tyre

10+1 spare tyre with rim

12.00-20 bias tyre

Suspension system: Strengthen heavy duty Leaf spring type

Front/Rear

10/12

Dump body: type of body :

Inside size of Body(mm): 5170x2300x1500, 8x6mm (thickness of floor and rail of the dump body)

Lifting type: HYVA front lifter type hydraulic system

Overall dimension(mm): 11868x2496x3250 (Length x width x height)

Wheelbase

3800+1400mm

Track:

Front/Rear

2036/1850

Approach/Departure angle

28/30

Front /Rear overhang

1525/1654

Max speed

90km/h

Curb weight:

12190kg

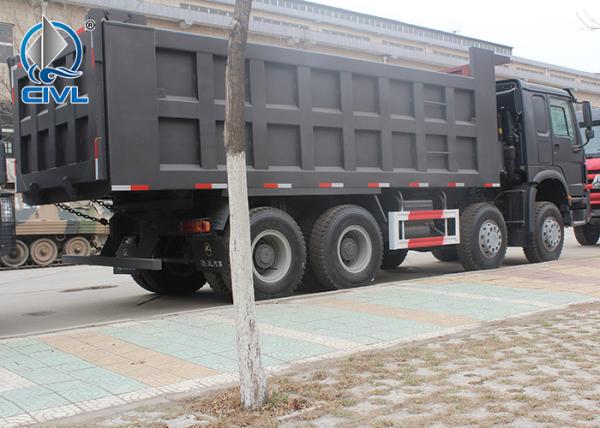

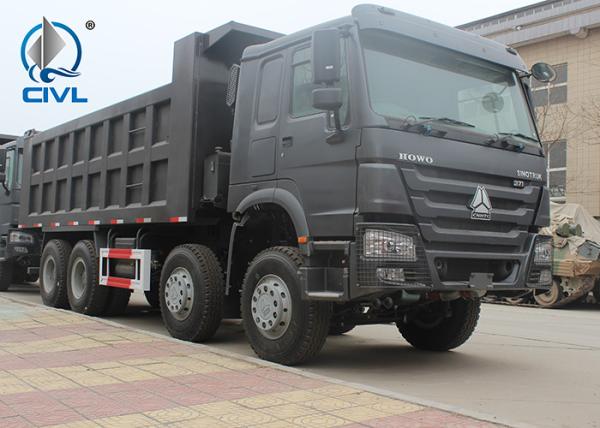

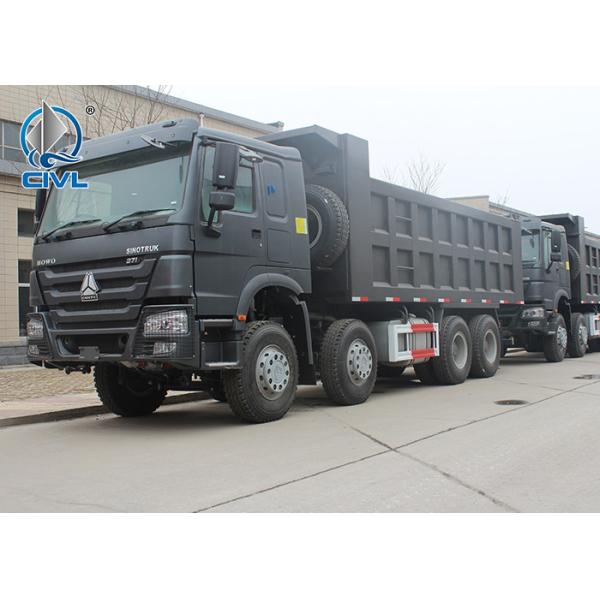

Details Photos:
Sinotruk HOWO ZZ3257M3857A 30T Load STR Axle 6x6 Tipper Truck Hyva Dumper TruckSinotruk HOWO ZZ3257M3857A 30T Load STR Axle 6x6 Tipper Truck Hyva Dumper TruckSinotruk HOWO ZZ3257M3857A 30T Load STR Axle 6x6 Tipper Truck Hyva Dumper Truck

About us:

CIVL SHARES is committed to international trade and cooperation.
We are a leader of solution providers for full sets of vehicles, construction machineries and auxiliary facilities.

Relying on the materials, equipments and vehicles needed for infrastructure,logistics and transportation as well as people's livelihood, We provide a complete set of solution from services in pre-sale,in-sale and after-sale to our customers.

Our products cover from transportation vehicles, special vehicles, passenger cars, pavement machinery, road maintenance equipment, port special tools, concrete production lines, etc. to the related-auxiliaries including various board houses, tents, steel structures, building materials, mobile fuel stations, etc.

our service:

1. Update truck production process and send pictures to you:

Chassis Complete - Arrives at Body Factory - Body Production - Finished and Tested Arrives Ships in Chinese Ports.

2. One year warranty for engine, gearbox and axle (failures caused by misoperation or human factors are not covered by the warranty.)

3. Provide a list of wearing parts immediately after the vehicle is completed

4. We focus on Sinotruk spare parts for more than 10 years.

If you need spare parts, you can buy them below market prices. Whether original or copy, we have many direct suppliers to choose from.

5. If your order is in bulk, such as more than 10 sets, we can provide online repair service.
