Beiben Dump Truck 6x4 Heavy Duty Dump Truck 1200R20 Tires Type 20 Cubic BeiBen 10 Wheels heavy tipper truck
Beiben Dump Truck 6x4 Heavy Duty Dump Truck 1200R20 Tires Type 20 Cubic BeiBen 10 Wheels heavy tipper truck
Beiben Dump Truck 6x4 Heavy Duty Dump Truck 1200R20 Tires Type 20 Cubic BeiBen 10 Wheels heavy tipper truck
Beiben Dump Truck 6x4 Heavy Duty Dump Truck 1200R20 Tires Type 20 Cubic BeiBen 10 Wheels heavy tipper truck
Beiben Dump Truck 6x4 Heavy Duty Dump Truck 1200R20 Tires Type 20 Cubic BeiBen 10 Wheels heavy tipper truck
Beiben Dump Truck 6x4 Heavy Duty Dump Truck 1200R20 Tires Type 20 Cubic BeiBen 10 Wheels heavy tipper truck
Beiben Dump Truck 6x4 Heavy Duty Dump Truck 1200R20 Tires Type 20 Cubic BeiBen 10 Wheels heavy tipper truck
Beiben Dump Truck 6x4 Heavy Duty Dump Truck 1200R20 Tires Type 20 Cubic BeiBen 10 Wheels heavy tipper truck
Specifications
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
2000units.month
Delivery Time :
Within 35 days
Packaging Details :
nude
Place of Origin :
China
Brand Name :
CIVL
Certification :
ISO,CCC
Model Number :
CIVL
color :
option
material :
Q345
lifting :
front
engine :
weichai
tire :
10+1 spare
Description

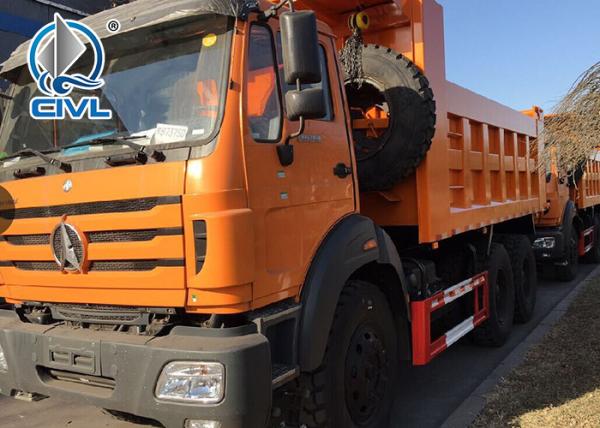

BeiBen 10 wheels beiben Dump Truck Heavy Duty 1200R20 tires 6x4 type 20 cubic

North-Benz NG80 10 wheels 6x4 type 20 cubic beiben dump truck

Horsepower: 340HP/250KW (WP10.340E32) Displacement: 9.726liter
Fuel Consumption: 193g/kw.h Speed: 12speed,2reverse
Tyre: 1200R20 Steering: ZJ120D

Features:

1. Best Chinese 6x4/8x4 Dump Truck Beiben NG80/V3 Tipper Truck with low price
2. Mercedes Benz Technology
3. Left handed drive and right handed drive available
4. High quality parts supply
5. Most professional service

6. New design
7. European vehicles security level
8. Stemping vehicle frame
9. Benz unique axle technique
10.High reliability fuel econ

Specifications:

Model 6x4 dump truck
Cabin Full steel skeleton structure, overall interior and instrumental platform, adjustable steering wheel , radio player; Can be tipped forwardly, A/C
Engine Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
MAX Horse power: 340HP/250KW (WP10.340E32)
Displacement(L): 9.726liter
Max torque: 1250NM@2200rpm
Bore/stoke: 126mm/130mm
Fuel consumption 193g/kw.h
Gear box Max torque:1600NM
Model: 12JS160T, mechanism, manual
Speed: 12speed,2reverse
Axle(front/rear)
Front axle 7.5 ton double-shoe pneumatic brake, non-driving steering axle
Tandem Double-shoe pneumatic brake, casting, double reduction driving axle
Clutch Single dry frictional disc, Hydraulic boosting
Brake Service brake: double circulation air brake system
Parking brake: Potential springs pressing on middle and rear wheels
Engine brake: Engine exhaust brake(EVB)
Steering ZJ120D, driver sit at the left hand side
Electric Equipment
Operating voltage: 24Vnegative grounded
Starter: 24V,5.4KW
Alternator 28V,758W
Battery voltage 12V/135Ah, cigar lighter
Frame Strengthen frame design as tough road, 300x90x8+6+8mm

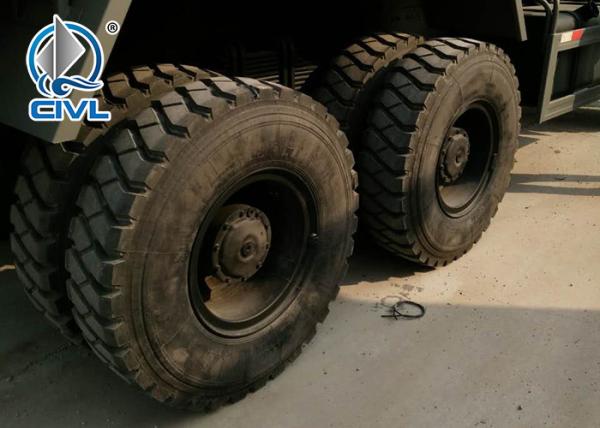

Tyre 10+1 spare tyre with rim
12.00R20 radial tyre
Suspension system: strengthen heavy duty Leaf spring type
Front/Rear 10/13
Dump body: type of body :
Inside size of Body(mm): 5600x2300x1500, 8x6mm, made of high intensity steel
Lifting type: HYVA front lifting type hydraulic system.
Overall dimension(mm): 8530x2500x3310(Length x width x height)
Wheelbase 3800+1450mm
Track:
Front/Rear 1995/1800
Approach/Departure angle 26/32
Front /Rear overhang 1410/1870
Max speed 90km/h
Kerb weight: 12200kg Fuel tank 300L

Shippment:

Beiben Dump Truck 6x4 Heavy Duty Dump Truck 1200R20 Tires Type 20 Cubic BeiBen 10 Wheels heavy tipper truck

FAQ:

Q: I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok? A: We can make the tyres as your requirement to suit your country's need.

Q: I want to transport the truck by container, is it ok? A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.

Q:How about your product quality? A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.

Q:How to transport the truck A:We mainly transport it by ro-ro ship or bulk ship

Q:I want to be your agent in my country , is that ok? A:It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok

Q:How to maintain the trucks? A:Every day to lubricate the truck, because the working condition is dusty. And you have to change engine oil and air filter when the trucks arrive at about 8000-10000km or 400-500 hours.

Q:Can you supply the spare parts of this truck A:Yes, We can supply the spare parts for all the trucks we selling, We have spare parts department professional for this,Once you need spare parts we can supply immediately.

Q:Do you have oversea service? A:When you have some problems which you can’t solve. we will arrange our engineers to your country to help you.

Q:How long is the delivery time for the truck? A:Mainly 30~40 days for shipment after received your deposit.
