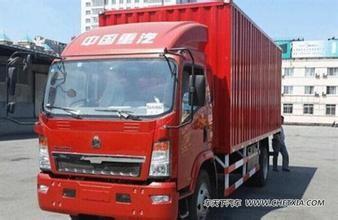

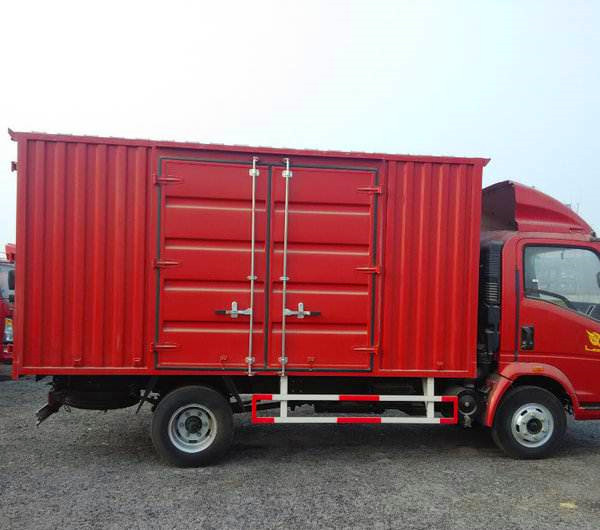

Water Cooling Heavy Duty Dump Truck Van Truck Diesel 4 Stocks 6 Cylinder
Water Cooling Heavy Duty Dump Truck Van Truck Diesel 4 Stocks 6 Cylinder
Water Cooling Heavy Duty Dump Truck Van Truck Diesel 4 Stocks 6 Cylinder
Water Cooling Heavy Duty Dump Truck Van Truck Diesel 4 Stocks 6 Cylinder
Water Cooling Heavy Duty Dump Truck Van Truck Diesel 4 Stocks 6 Cylinder
Water Cooling Heavy Duty Dump Truck Van Truck Diesel 4 Stocks 6 Cylinder
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
1000 set / every month
Delivery Time :
Within 35 days
Packaging Details :
IN NUDE
Vehicle name :
van truck
engine Number of cylinder :
6
Displacement :
9.726L
Engine oil filling quantiy :
40L
Description

The van truck 's main feature as below

Model ZZ1167M4617
Engine Vehicle name van truck
Diesel 4-stocks
Engine model WD615.62, Euro II or Euro III (EGR);
WD615.92E, emission standard
6-cylinder in-line with water cooling, turbo-charging and intercooling
Maximum output 266hp (196KW) at 2200 rpm
Maximum torque 1100Nm at 1100-1600 rpm
Number of cylinder 6
Displacement 9.726L
Bore 126mm
Stroke 130mm
Compression ratio 17.5:1
Specific fuel consumption 198g/KWh
Engine oil filling quantiy 40L
Clutch Single-plate dry coll-spring clutch, diameter 420mm, hydraulically operating
with air assistance
Transmission 8JS100B, synchromesh, 6 forward & 1 reverse
Front Axle Steering with double T-cross section beam
Rear Axles Pressed axle housing, single reduction with hub reduction and differential lock
Chassis Frame U-profile parallel ladder frame with section
of 300x80x8 mm, all cold riveted cross
members
Front Suspension 9 semi-elliptic leaf springs with hydraulic
telescopic double-action shock absorbers
and stabilizer
Rear suspension 15 leaf semi-elliptic leaf springs with hydraulic
telescopic double-action shock absorbers
Steering ZF8089, hydraulic steering with power asssistance
Ratio: 22.2-26.2
Braking System Service brake Dual circuit compressed air brake
Parking brake Spring energy, compressed air operation
(emergency brake) on rear wheels
Auxiliary brake Engine exhaust brake
Option ABS
Wheel & Types Rims 8.5-20, 10 hole-steel
Tyres 12.00-20 tube
Option 12R20 tube, 12.00-24 tube,
12R22.5 tubeless
Cab Standard cab
Electrical Syetem Operating voltage 24 V, negative grounded
Starter 24 V, 7.5 Kw
Alternator 28 V, 1500W
Batteries 2 X 12 V, 165Ah
Dimensions Wheel base 4600
Front wheel track 2022/2041
Rear wheel track 1850
Front overhang 1500
Rear overhang 2277
Approach angle (°) 23
Departure angle (°) 15
Overall length 8377
Overal width 2496
Overall heigth 3048
Cargo body size 6066x2300x600
Weight Loading capacity 8010
Chassis dead weight 7860
Gross vehicle weight 16000
Front axle loading capacity 7000
Rear axle loading capacity 13000
Performance Maximum driving speed 102
Maximum gradeability 39
Minimum ground clearance 298
Minimum turning circle 18.6
Fuel consumption 26

Water Cooling Heavy Duty Dump Truck Van Truck Diesel 4 Stocks 6 Cylinder

Tipper truck, tipper, dumper, dumper truck, side tipper truck, side dump truck, front lift tipper truck, side lift dumper,6 tires tipper, 10 tires tipper, 10T tipper truck, 25 T dump tru

ck,heavy dump truck
