Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Price :
$37000-$50000
Payment Terms :
L/C, T/T
Supply Ability :
3000 UNITS/ MONTH
Delivery Time :
Within 35 days
Packaging Details :
PACKAGE IN NUDE
Material :
High carbon Steel
Color :
White/Red/blue
Description

New Style SINOTRUCK HOWO 336/371 hp 6X4 heavy duty dump truck Front lifting

Transportation Trailer Multi Axle Trailers To Transport Stone Ore dumptruck

dorinyang@road-machine.com

Skype:dorinyang

Whatsapp/viber/Messenger No.:0086-18678785501

Specifications:

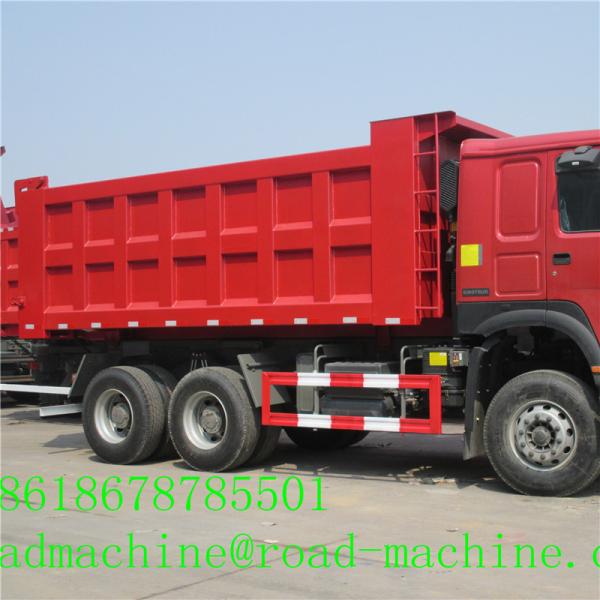

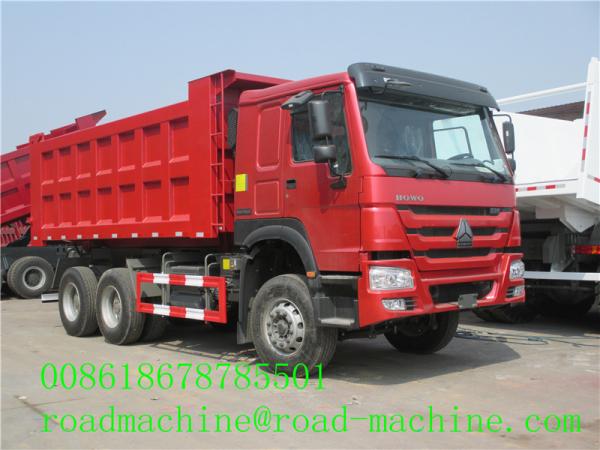

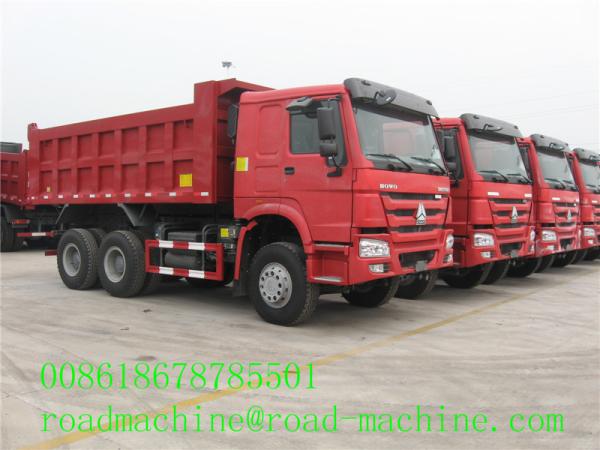

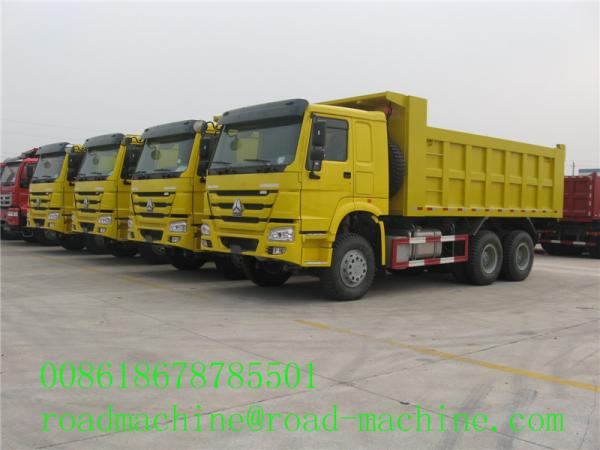

Sinotruk Howo 6x4 Dump Truck
Chassis Model ZZ3257N3247D1 (Left Hand Driving Type)
Production Year New truck.
Cabin HW76 cab, <
multi axle trailers
, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn,air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.
Engine

Make: SINOTRUK

Diesel 4-stroke direct injection diesel engine

Engine model: WD615.69, Euro 2, 336 HP

6-cylinder in-line with water cooling, turbo-charging and intercooling

Displacement: 9.726 L

Transmission

HW15710, 10F & 2R, with PTO

Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)

Steering ZF power steering, modol ZF8118, hydraulic steering with power assitance
Front Axle

HF9, 1x9000 KGS

Steering with doubleT-cross section beam

Rear Axle

HC16, 2x16000 KGS

Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.

Ratio:5.73

Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Chassis

Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members

Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer

Brake

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tyres 315/80R22.5, tubeless tyres with one spare tyre
Fuel Tank 300L
Cargo Body 6500*2300*1500 mm, 17.38 CBM, Floor 8 mm Side 6 mm.
Overall Dimension 10000*2550*3500 mm

Description:

1. Sinotruk dump truck adopt many key technologies both from home and abroad, and it can achieve the best design and be in good conditions.

2. Low oil consumption. Sinotruk adopt the engine that combine the MAN and technolgoy, it has the perfect oil performance.

3. Sufficient stocked spare parts are available for you when you need to repair your dump truck

4. with the same conditions, our dump truck can be used for a longer time as we used many world famous brand spare parts and assembly.

Applications:

It is suitable for in normal roads and tough roads, to transport and unload transport, stone, ore, and others loose materials.

Competitive Advantage

1. Our product can automatically detect faults and automatically store important operating data.
2. The reflection mirror of the HOWO dump truck is designed with reference to the most advanced foreign vehicle models. Electrically controlled operation and electric defrosting are available to choose. The large-field-of-view rear view mirror, right-side road mirror, and the front lower mirror enable the driver to fully grasp the driving environment.
3. The special door opening and closing mechanism, 90-degree maximum door opening angle,two side door handles, and two stainless steel non-slip pedals make it safer and more convenient to open the door and get on or off the vehicle.
4. The middle of the bumper is provided with a footboard that can be flipped, making it convenient to wipe the glass.
5. The reading lamp in the cab has proper lighting intensity and it adopts a multiposition layout, which brings much convenience to reading and working in the cab.
