WD615.47 70 Ton Mining Heavy Duty Dump Truck 6 X 4 12.00 - 20 Tires Mining Tipper Truck
WD615.47 70 Ton Mining Heavy Duty Dump Truck 6 X 4 12.00 - 20 Tires Mining Tipper Truck
WD615.47 70 Ton Mining Heavy Duty Dump Truck 6 X 4 12.00 - 20 Tires Mining Tipper Truck
WD615.47 70 Ton Mining Heavy Duty Dump Truck 6 X 4 12.00 - 20 Tires Mining Tipper Truck
WD615.47 70 Ton Mining Heavy Duty Dump Truck 6 X 4 12.00 - 20 Tires Mining Tipper Truck
WD615.47 70 Ton Mining Heavy Duty Dump Truck 6 X 4 12.00 - 20 Tires Mining Tipper Truck
WD615.47 70 Ton Mining Heavy Duty Dump Truck 6 X 4 12.00 - 20 Tires Mining Tipper Truck
WD615.47 70 Ton Mining Heavy Duty Dump Truck 6 X 4 12.00 - 20 Tires Mining Tipper Truck
Specifications
Brand Name :
SINOTRUCK HOWO
Model Number :
ZZ5707V3640CJ
Certification :
ISO CCC
Place of Origin :
CHINA CNHTC
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 units per week
Delivery Time :
Within 20-30 days after the receipt of the deposit
Packaging Details :
nude
Place of Origin: :
CHINA CNHTC
Brand Name: :
SINOTRUK HOWO
Model Number: :
CVZZ5707V3640CJ
Certification: :
ISO CCC
Minimum Order Quantity: :
1 unit
Price: :
Negotiable
Packaging Details: :
Nude
Description

WD615.47 70 TON MINING Heavy Duty Dump Truck 6 X 4 12.00-20 Tires

Description:

1.SINOTRUCK HOWO series trucks own the elegant appearance, strong operation system and excellent safety.

2.Sino Vehicle & Equipment Company Ltd is the authorized company of SINOTRUK(CNHTC), and mainly deal with

heavy duty trucks /all spare parts and service We supply HOWO, , KING, GOLDEN PRINCE, HOHAN series 4X2, 6X4, and 8X4 dump trucks, tractor trucks, cargo trucks, garbage trucks, oil tank trucks, water tank trucks, log trailers tractors, terminal tractors, etc. Our products arrange from 190 horse power to 410 horse power, and loading capacity cover from 5 tons to 50 tons.

Specification:

TAG: Special Dump Truck/dump truck /MINING DUMP TRUCK/MINING tipper truck/HOWO MINING DUMP T

Item

SINOTRUCK HOWO 70TON MINING DUMP TRUCK 6x4

Truck model

CVZZ5707V3640CJ

Max driving speed:

50km/h

Engine model

WD615.47,371HP, EURO II

Carriage internal size:

5800*3100*1800mm, 32.364m3

Front Axles

HF12, 12000KG

Rear Axles

AC26, 2X26000KG

Steering

ZF8098, GERMANY Ratio: 26.2-22.2

Tires

12.00-20 tube Option: 12R20 tube, 12R24 tube, 12R22.5 tubeless

Air conditioner

With safety belts for driver and co-driver;With air conditioner

Transmission

HW19710+HW70 PTO, 10 speed Ratio: 14.28, 10.26, 7.87,5.88, 4.38, 3.27, 2.43

Export Markets

South America, Southeast Asia, Africa, Mid East, Eastern Asia

Loading

Capacity

At least 70t

Driver's Cab

standard half cabin, with air conditioner

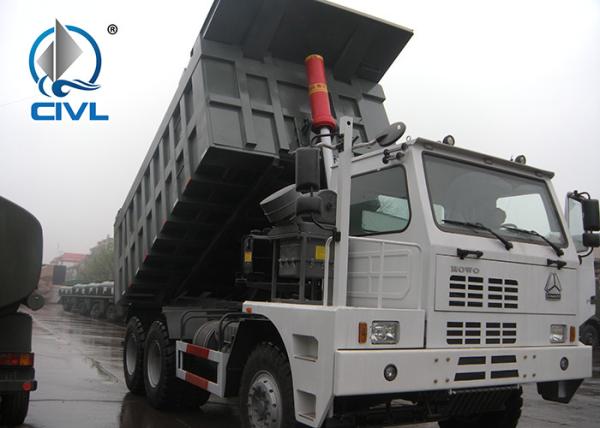

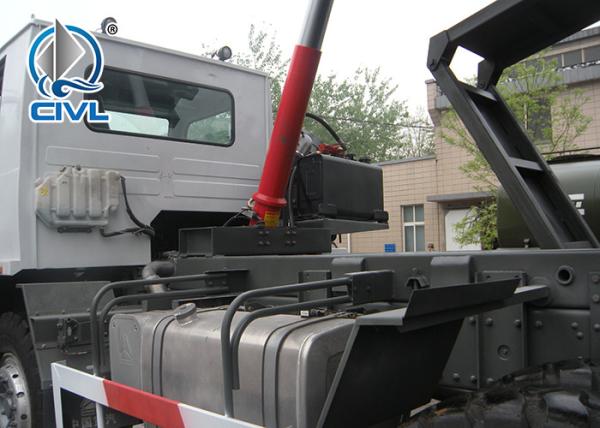

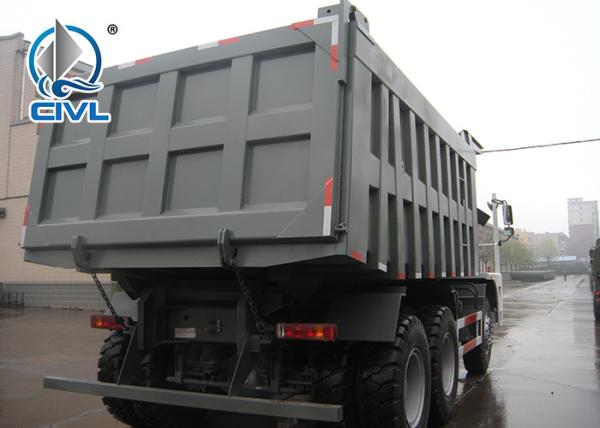

Detailed photos:

WD615.47 70 Ton Mining Heavy Duty Dump Truck 6 X 4 12.00 - 20 Tires Mining Tipper TruckWD615.47 70 Ton Mining Heavy Duty Dump Truck 6 X 4 12.00 - 20 Tires Mining Tipper Truck

Related Production:

Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( 55470323, 54640582, 54640443, 54622108, 54621778, 54621524, water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts

With over 51 years of experience , we have becoem one of the key manufacturers of trucks and road machiens in China .

Exporting to more than 50 countries for 14 years .

For more information ,contact us now.
