Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
1000units/month
Delivery Time :
Within 35 days
Packaging Details :
nude
material :
Q235
color :
option
brand :
Sinotruk
Product name :
Light Duty Cargo Truck
Type :
commercial vehicles
Color :
Requirements
Condition :
New
Drive wheel :
4x2
Capacity (load) :
1 - 10t
Description

3-7tons Carrier Refrigerator Truck/Cooler Van for Fresh Vegetable and Milk

Main specification
Product model and name SZD5070XLCB4 refrigerator truck
Gross weight(Kg) 7495 Drive type 4X2,LHD,RHD
Curb weight(Kg) 4300 Overall dimension(mm) 6995X2250X3200
Approach/departure angle(°) 23/15 Cargo box dimension(mm) 5150X2080X2000
Axle No. 2 Cab seats 3
Axle load(Kg) 3000/4495 Front/rear hang(mm) 1120/2075
Max speed(Km/h) 95 Wheelbase(mm) 3800
Chassis specification
Chassis model BJ1079 Manufacturer Foton Motor Co., Ltd
Brand name Foton Dimension(mm) 6800×2135×2330
Tire specification 7.50-16 Tire No. 6+1(One spare tire)
Steel spring number 9/11+7 Front track base(mm) 1685
Fuel type Diesel Rear track base(mm) 1630
Emission standard Euro III Transmission 5 forward gear
Cab One and half row,3 person allowed with power steering and A/C
Engine model Engine manufacturer Displacement(ml) Power(Kw)
YZ4102ZLQ Yangzhou Diesel Engine Co.,Ltd 2800 90(122HP)
Tank body0
Tank capacity(m³) 13-15 box material Fiber Reinforced Plastics
Box thickness 8mm accessories Stainless steel
temperature -18~30degree Refrigerating unit Famous brand
Main feature

1, Refrigerated truck is mainly used to transport fresh meat, vegetables and seafood etc. Special ones can also transport dangerous chemicals. Our truck has lots of advantages, flexible, easy to operate , efficient, large Carryings, safe and reliable.

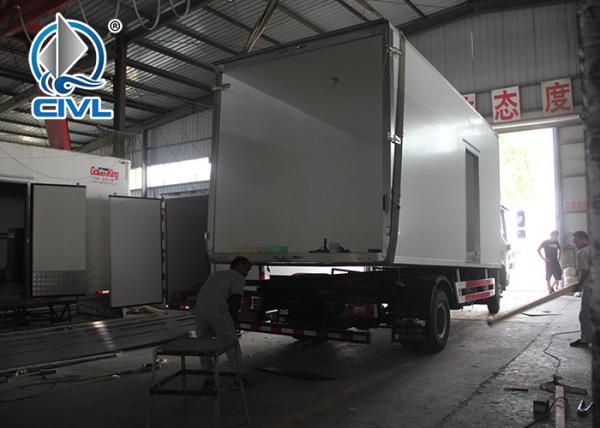

2,We product many kinds of refrigerated truck, the cargo body uses assembled technology with fully plastic and total enclosed composite material plates.

3, the inner and exterior thin-gauge skin of the cargo is glass epoxy, the sandwich panel is made of polyurethane foam insulation materials. The cargo body is adhered by glass epoxy and polyurethane foam materials with high-strength glue to make the cargo enclosed.

4, About the refrigerator unit, we choose domestic and thermo King, Carrier, Mitsubishi and other international famous brands.

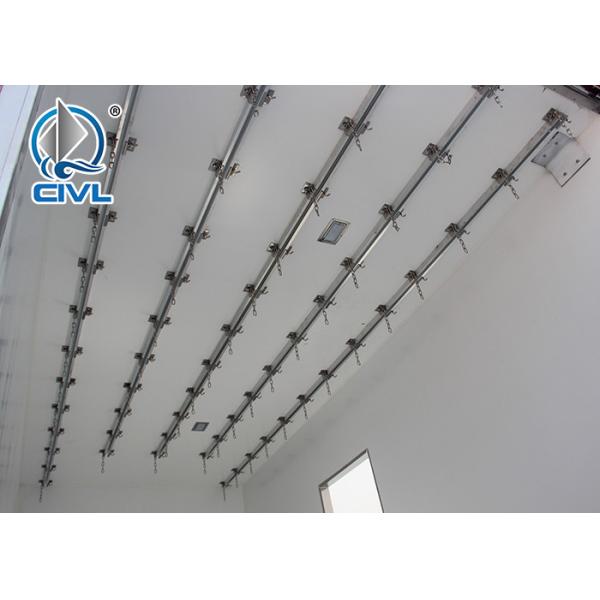

5, Choose to fix meat hooker, leading rails, ventilation slots.

Sinotruk 3 - 7 Ton Carrier Refrigerated Truck / Cooler Van For Fresh Vegetable And MilkSinotruk 3 - 7 Ton Carrier Refrigerated Truck / Cooler Van For Fresh Vegetable And MilkSinotruk 3 - 7 Ton Carrier Refrigerated Truck / Cooler Van For Fresh Vegetable And MilkSinotruk 3 - 7 Ton Carrier Refrigerated Truck / Cooler Van For Fresh Vegetable And Milk

Application:

The refrigerator/insulated truck can be widely applied to various types of refrigerated/insulation transport , such as supermarkets, cold storage, food plants, pharmaceutical companies and so on. we can offer one-stop solution for customers, such as free designing,manufacturing,transporting,after-sale servicing and free technical supporting.

Typical features:

1. Light weight and high strength

2. Fire retardant treatment

3. Shock resistance and scratch proof

4. Anti-corrosion and good chemical substances resistance

5. Easy clean and simple installation

6. Insect prevention and antibiosis

7. Weather proof and hail resistance

8. Excellent thermal character

Competitive Advantage:

1. The price is competitive; we are the direct channel to supply refrigerator truck.

2. Fast production period, and quick arrangement of delivery.

3. Professional Sales Team of trucks. Our target is not selling trucks; we help customers choose the best suitable trucks as per customer’s situation.
4. Professional team for spare parts and aftersales services.

5. Technique support and training.

6. Customization service, as per your request, we will customize our production for you.

Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
