Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000unit./month
Delivery Time :
Within 35 days
Packaging Details :
In nude, marine anti-corrosion packaging
MATERIAL :
Q345
LOGO :
OPTION
COLOR :
OPTION
ENGINE :
CUMMINS
Description

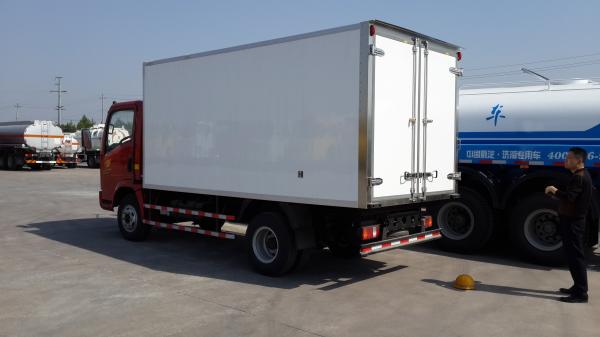

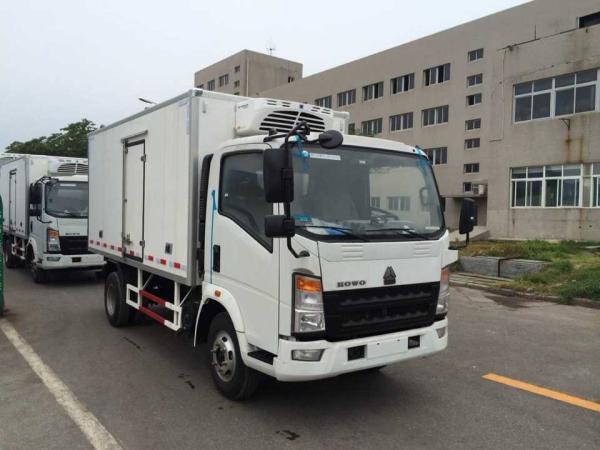

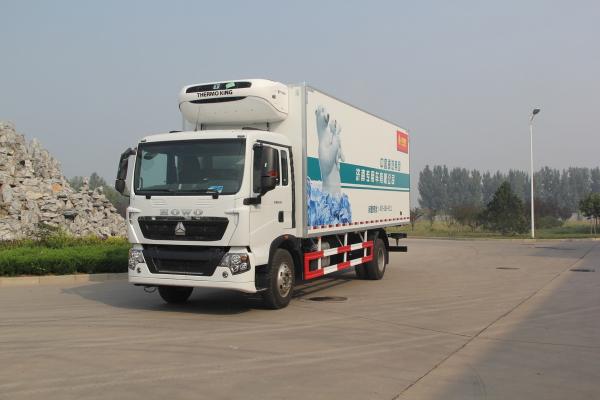

Euro 2 5 Ton Refrigerated Truck For Frozen Foods Transporting with Weichai engine

Description:

7 Tons Refrigerated Trucks And Vans LHD 4X2 Closed Van Truck With Frozen Box

Which can choose all kinds of Brand, Such as HOWO, Golden Prince, HOWO A7, Hohan, Engine

power have 266HP, 290HP, 336HP, 371HP and so on.

Acoording to the loading capacity we will equipped with suitable Refrigerator, we have many famouse brand, such as Carrier, Thermo and so on.

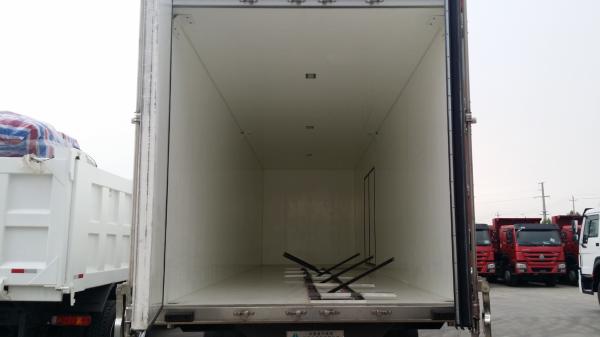

Refrigerated truck is one kind of closed van truck which is used to transport the frozen

or fresh goods, was fitted with the refrigerating unit device and polyurethane thermal

insulation van and it is refrigeration special use transport truck, usually used for

transporting frozen foods ( freezer truck ), dairy ( milk truck ), vegetables and fruits

( fresh goods transport vehicle ), vaccine and drug ( vaccine vehicles) etc.

Specification:

7 Tons Refrigerated Trucks And Vans LHD 4X2 Closed Van Truck With Frozen Box
Chassis Model ZZ1127G4215C1
Drive Type 4×2
Engine YC4E140, 140HP
Cabin 2080 lengthened cab(with one sleeper, air-conditioner and two new-style seat)
Transmission DC6J48TC(6 forwards & 1 reverses)
Front Axle 3.2 Tons
Driving Axle 8.2 Tons
Clutch hydraulically operating with air assistance
Rim/ Tire 8.25-20, 9.00R20
Wheel base 4200(mm)
Van board material polymer composites
Dimension of cargo body 5200*2300*2000mm, Bottom:3mm Side:1.5mm
Refrigerator XL-300, -18C0
Overall dimension 7128×2462×3375mm
The curb weight 6300(Kg)
Gross weight 12490 kg
Max. speed 95km/h
Color White, red, green, golden and so on.


Applications:

Refrigerated Truck can widespread use in transportation of all kind of frozen food, vaccinum, vegetables and fruit.

Competitive Advantage:

1) The "sandwich" structure (low thermal conductivity), good thermal

insulation effect. Using unsaturated polyester resin as binder, plus a cushion, with

rigid polyurethane foam insulation, heat conduction low coefficient, high strength. High

strength plate bonding, high sealing glue, forming a whole. The structure of the

refrigerator car is dominant in the domestic market, our company is using the technology

of refrigerated trucks.

2) Our company's production of circular easy brand refrigerator car introduced Italy,

Germany, the United States overall polyester foam technology, and high strength fiber

plastic and other material manufacturing technology and equipment
3) so that our company refrigeration, heat preservation technology level basic reached

world advanced water level.
4) Refrigeration, heat preservation car body with light, high strength, good heat

insulation performance, high temperature stability, no pollution, oxidation, easy

maintenance, but also has low noise, low energy consumption, low failure rate, food

preservation effect is good and so on a series of advantages
5) A lot of technical indicators and the world's advanced level is close to the fully

closed polyurethane plate bonded glass steel structure, this product is light weight,

low heat leakage.

6) with all kinds of truck model, which can fulfill your requirement
7) the key parts adopt the world's top technology products
8) based on strong technical support and top level technology make the trucks with high

quality and more reliable
9) competitive price, cost-effective

10) Fast delivery time

11) Quick spare parts supply
