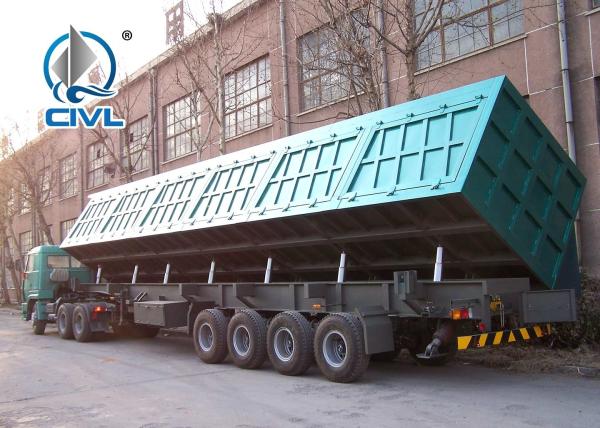

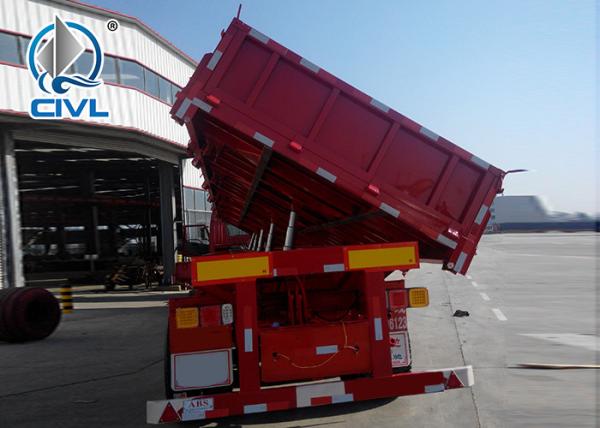

Side Dump 60 Ton 4 Axle Semi Trailer Trucks Mechanical Suspension
Side Dump 60 Ton 4 Axle Semi Trailer Trucks Mechanical Suspension
Side Dump 60 Ton 4 Axle Semi Trailer Trucks Mechanical Suspension
Side Dump 60 Ton 4 Axle Semi Trailer Trucks Mechanical Suspension
Side Dump 60 Ton 4 Axle Semi Trailer Trucks Mechanical Suspension
Side Dump 60 Ton 4 Axle Semi Trailer Trucks Mechanical Suspension
Side Dump 60 Ton 4 Axle Semi Trailer Trucks Mechanical Suspension
Side Dump 60 Ton 4 Axle Semi Trailer Trucks Mechanical Suspension
Side Dump 60 Ton 4 Axle Semi Trailer Trucks Mechanical Suspension
Side Dump 60 Ton 4 Axle Semi Trailer Trucks Mechanical Suspension
Side Dump 60 Ton 4 Axle Semi Trailer Trucks Mechanical Suspension
Side Dump 60 Ton 4 Axle Semi Trailer Trucks Mechanical Suspension
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Delivery Time :
Within 35 days
Packaging Details :
In nude
capacity :
40-50m3
condition :
new
Material :
Steel
Use :
Truck Trailer
Max payload :
60T
Suspension :
Mechanical Suspension
Color :
Custom's Requirement
Landing gear :
Standard 28Ton
King pin :
2" or 3.5" bolt-in or welded king pin
Brake system :
ABS Optional
Name :
side dump semi trailer
Description

Multi-axle Side Dump Semi Trailer Trucks Trailer With Front Lifting 60 Ton 4 Axle

The hydraulic cylinder of the Semi Trailer Dump Truck is made from the special

manufacturers, its material strength is much higher than the ordinary cylinder, improve

the use of the product cycle.

The rear panel of the vehicle is locked with a mechanical device, the lock hook and the

back plate are automatically opened at the time of unloading, and the blockage is avoided

when unloading, especially when the stone is unloaded, and the loss of the vehicle is

reduced.

50 CBM DUMP SEMI TRAILER
DIMENSIONS
Tare weight 15500kg Payload 40000kg
Overall length 9968 Overall width 2534mm Overall height 3566mm
SPECIFICATION
Chassis

Heavy duty and extra durability designed I beam;opting for high tensile steel Q345,welded by automatic submerged-Aac processes.
Top plate 18mm .bottom plate 20mm .middle plate 10mm .height:500mm
Axle Number 3 Brand HJ Capacity 13 T
Suspension Mechanical suspension
Leaf spring Leaf spring 12 pcs
Floor 8mm plate .side wall 6 mm
Tire 12R22.5 double star 12 pcs
Wheel rim 9.0 12 pcs
Kingpin 3.5’’ bolt-in king pin
Landing gear Fuwa two-speed,manual operating ,heavy duty landing gear 28
Cylinder HYVA 214-7130
Vehicular applications Sand and pebble and mineral transport
Drawing Including
Braking system WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
Paiting Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories One standard tool box

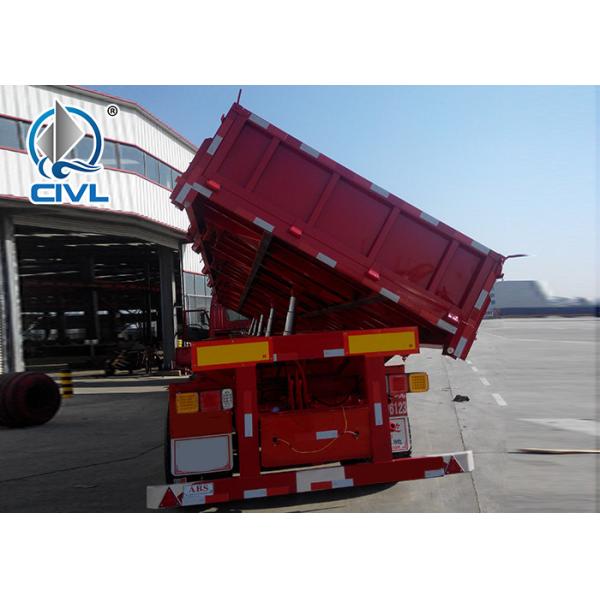

Some picture for you reference
Side Dump 60 Ton 4 Axle Semi Trailer Trucks Mechanical SuspensionSide Dump 60 Ton 4 Axle Semi Trailer Trucks Mechanical SuspensionSide Dump 60 Ton 4 Axle Semi Trailer Trucks Mechanical Suspension

Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
