SPECIFICATION
Type | Fuel Tanker with 3 axles | |
Model | CIVL9508TGR | |
Parameter | Dimension(mm) | Length x width x height:11000x2500x3850 |
King pin setting(mm) | 1100 | |
Fifth wheel height (mm) | 1240 | |
Wheel base (mm) | 5250+1360+1360 | |
Curb weight (kg) | 10000 | |
Pay loading (kg) | 50000 | |
OEM | Landing gear | CIVL 19”,option by CIVL factory |
kingpin | 2”JOST,exchangeable | |
Brake system | Dual air brake system,WABCO brake valve | |
ABS | Optional | |
Suspension | Mechanical suspension with 9 leaf spring | |
Axle | 13T x 3 | |
Tire | 11.00R22.5, 12 pcs | |
Rim | 8.25-22.5, 12 pcs | |
Tool box | One set on right side,1m steel | |
Spare tire carrier | Equipped 2 sets per chassis |
Specifications listed for reference only.please leave a message ,
email us or call us directly for your tailed solution now.
emi-trailer,CIVL fuel tanker,oil tanker semi-trailer,tanker semitrailer,fuel tanker semitrailer,semitrailer,oil tanker,Dry,Van,CIVL Van Trailer,3-axle Van Trailer,Aluminum Van Trailer,box trailer,box trailer for sale,van trailer for sale,van semitrailer,box semitrailer,van trailer,van semi trailer,dry van semitrailer, car carrier semi-trailer for 6 car,car carrier semi-trailer,car carrier, semitrailer,Two-axle Car Carrier Semi-trailer,car carrier semitrailer,6 car carrier semitrailer,two axle semitrailer,two axle car carrier.

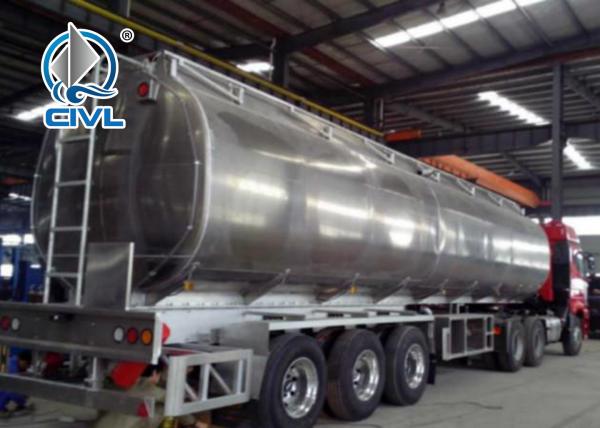

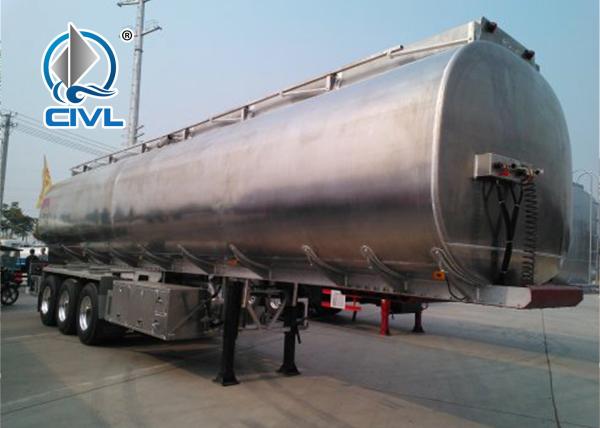

Three-axle Fuel Tanker Semi-trailer
Aluminum semi trailer
50CBM

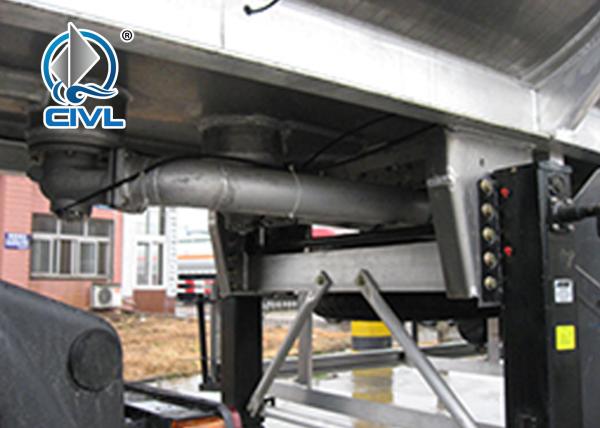

Bin valve
uel tanker s
Safe operation
1. Oil tank trucks should be equipped with special fire extinguishers, and should be equipped with towed subway chains and electric poles. When driving, the subway chain should touch the ground; when refueling or draining, the electric pole must be inserted into the wet ground.
2. The oil filler hole of the oil tank should be tightly sealed, the oil drain valve and the oil drain pipe should be free of leakage, the air vent of the oil tank should be unblocked, the oil inlet filter of the oil pump should be cleaned frequently, and the joints at both ends should be installed immediately after the oil delivery hose is used Cover, no dirt can enter.
3. The gasifier and exhaust pipe of the internal combustion engine must not be tempered. The exhaust pipe should be installed in front of the vehicle.
4. The staff of the tank truck shall not wear shoes with iron nails. It is strictly forbidden to smoke near the oil tank, and it is strictly forbidden to fire.
Refueling gun can be installed
