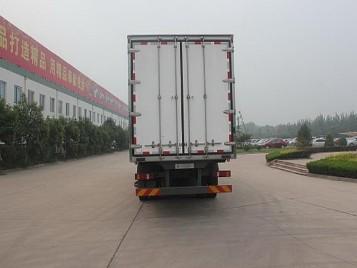

HOWO Refrigerated Box Truck With Air Intake System / Optional High Bumper
HOWO Refrigerated Box Truck With Air Intake System / Optional High Bumper
HOWO Refrigerated Box Truck With Air Intake System / Optional High Bumper
HOWO Refrigerated Box Truck With Air Intake System / Optional High Bumper
HOWO Refrigerated Box Truck With Air Intake System / Optional High Bumper
HOWO Refrigerated Box Truck With Air Intake System / Optional High Bumper
HOWO Refrigerated Box Truck With Air Intake System / Optional High Bumper
HOWO Refrigerated Box Truck With Air Intake System / Optional High Bumper
HOWO Refrigerated Box Truck With Air Intake System / Optional High Bumper
HOWO Refrigerated Box Truck With Air Intake System / Optional High Bumper
HOWO Refrigerated Box Truck With Air Intake System / Optional High Bumper
HOWO Refrigerated Box Truck With Air Intake System / Optional High Bumper
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Delivery Time :
Within 35 days
Packaging Details :
IN NUDE
Total weight(Kg) :
3100
Curb capacity(kg) :
13700
Max. drive speed (km/h) :
101
Color :
optional
Description

HOWO Refrigerator truck

The Refrigerator truck's main parameters as below

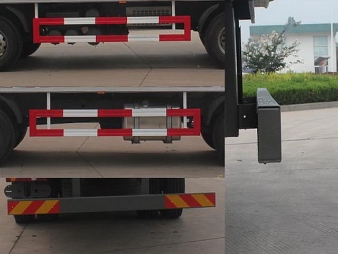

The top of truck the closed, cannot be opened.Optional common or half tall bridge.Options sun shade.Options dome.Other type refrigerating machine options.The machine can be installed in truck devices for department.Optional high bumper, supply air intake system, optional rear door structure.The compartments body side structure of supply single door or don't open the door.rear protective material is Q235, bolt connection;After the protective section size (width x height) : 70 * 160 (mm), height 545 mm from the ground.Installation running recorder with satellite positioning functions.

Vehicle name Refrigerator truck
Vehicle type Special truck
Vehicle model SHC5317XLCE1
Engine model MC11.32-50 Engine power 238
MC11.36-50 268
MC11.40-50 297
Engine displacement 10518 Engine manufacturers SINOTRUCK
10518
10518
Overall dimensions(L/W/H) 11995×2550×3995 Type of fuel Diesel
Total weight(Kg) 31000 Box(L/W/H) 9130×2385,2335×2445
Curb capacity(kg) 13700 Payload capacity 1.26
Approach/Departure angle 16/20 Permitted capcacity(kg) 17170
17105
Front/Rear overhang 1500/2545 1500/2570 Front passenger person) 2,3
Wheelbase(mm) 1950+3800+1400 Axle load 6500/7000/17500
1950+3825+1350
1950+4600+1400
1950+4625+1350
Axle nos 4 Max. drive speed (km/h) 101
Fuel consumption 41.1,41.3,41.5 Spring nos 11/11/12,4/4/5,4/4/-,11/11/-
Tyre nos 12 Tyre specification 315/80R22.5 16PR,295/80R22.5,12R22.5,12.00R20 16PR,12.00-20 16PR,11.00R20,11.00-20
Front wheel track 2022/2022,2041/2041 Rear wheel track 1830/1830
Steering model Steering wheel
Chassis standard GB17691-2005EUROⅤ,GB3847-2005
Identification code LZZ1BXND****** LZZ1BXSD****** LZZ1BXVD****** LZZ1BXNF****** LZZ1BXSF****** LZZ1BXVF******
