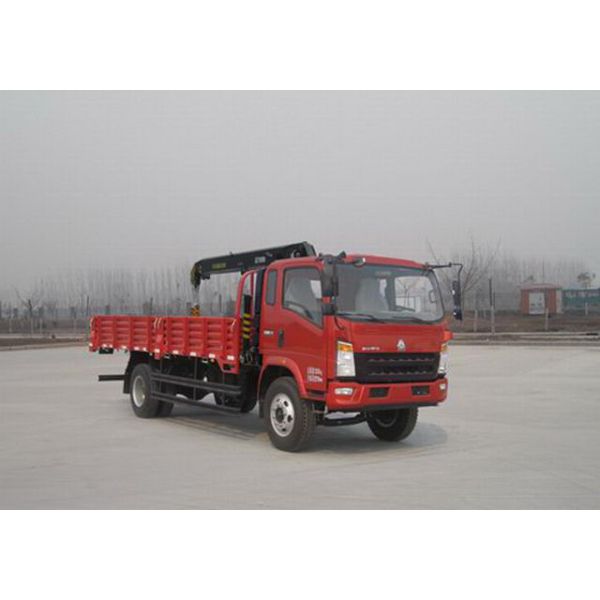

Light Duty Trucks Lorry Loading Crane Cummins Engine 11990 Kg
Light Duty Trucks Lorry Loading Crane Cummins Engine 11990 Kg
Light Duty Trucks Lorry Loading Crane Cummins Engine 11990 Kg
Light Duty Trucks Lorry Loading Crane Cummins Engine 11990 Kg
Light Duty Trucks Lorry Loading Crane Cummins Engine 11990 Kg
Light Duty Trucks Lorry Loading Crane Cummins Engine 11990 Kg
Light Duty Trucks Lorry Loading Crane Cummins Engine 11990 Kg
Light Duty Trucks Lorry Loading Crane Cummins Engine 11990 Kg
Light Duty Trucks Lorry Loading Crane Cummins Engine 11990 Kg
Light Duty Trucks Lorry Loading Crane Cummins Engine 11990 Kg
Light Duty Trucks Lorry Loading Crane Cummins Engine 11990 Kg
Light Duty Trucks Lorry Loading Crane Cummins Engine 11990 Kg
Light Duty Trucks Lorry Loading Crane Cummins Engine 11990 Kg
Light Duty Trucks Lorry Loading Crane Cummins Engine 11990 Kg
Light Duty Trucks Lorry Loading Crane Cummins Engine 11990 Kg
Light Duty Trucks Lorry Loading Crane Cummins Engine 11990 Kg
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Delivery Time :
Within 35 days
Packaging Details :
In nude
Price :
negotiable
Supply Ability :
100 units per month
Brand :
HOWO
Color :
Optional
Emission :
EURO Ⅳ
Total weight :
11990kg
Tyre nos :
6
Steering mode :
Steering Wheel
Description

Lorry loading crane 'sMain features as below

Vehicle name: Lorry loading crane
Vehicle type: Special vehicle
Vehicle model: ZZ5127JSQG451CD1
Brand: HOWO Manufacturer: Sinotruck
Engine model: ISF3.8s4154 Engine power: 115
ISF3.8s4R154 115
ISF3.8s4168 125
ISF3.8s4R168 125
MC05.16-40 118
MC05.18-40 132
Engine displacement: 3760 Engine manufacturer: Beijing Foton Cummins Engine Co. Ltd.
3760
3760
3760
4580 Sinotruck
4580
Fuel type: Diesel
Overall dimension(L/W/H): 7995×2450×3000 Box(L/W/H): 5200×2350×600
Total weight(Kg): 11990
Curb weight(kg): 5870 Permitted capacity(kg): 5925
Front passenger(Persons): 3
Approach/departure angle: 18/21 Front/rear overhang: 1160/2335
Wheelbase(mm): 4500 Axle load: 3900/8090
Axle Nos: 2 Max.drive speed(km/h) : 95
Oil consumption: 23.5,23.6,23.8,24.0 Spring nos: 8/9+6,11/9+7,11/11+7,9/12+9
Tyre nos: 6 Tire type: 8.25R20,9.00R20 14PR,9R22.5,10R22.5 14PR
Front wheel track: 176,118,051,845 Rear wheel track: 15,951,796
Steering mode: Steering wheel
Chassis standard: GB17691-2005EUROⅣ,GB3847-2005
Identification code: LZZ1BAFF××××××××× LZZ1BAGF×××××××××
Others: The bumper, crate plate structure, and rearview mirror are optional devices.the crane model,quality (kg),maximum rated lifting crane load (kg),vehicle kerb mass (kg)/(kg) and the rated load quality are ST090-040,1450,5925,4000,5870,respectively .the side and rear protective device made of Q235A, the connection methods are bolted connection, the sectional dimensions of the rear protective device is (width x height) :100mmx50mm, the height is 530mm from the ground. Fuel consumption to declare a value of the Engine ISF3.8 s4154 and ISF3.8s4R154 are both 23.5 L / 100km,the engine ISF3.8s4168 and ISF3.8s4R168 are both 23.6L/100km, the engine MC05.16-40 and MC05.18-40 are 23.8L/100km and 24.0L/100km,respectively.
