Sinotruk Howo 8m3 Concrete Mixing Transport Trucks 380 HP 6 X 4 10 Wheel Tyre,In White Color
Sinotruk Howo 8m3 Concrete Mixing Transport Trucks 380 HP 6 X 4 10 Wheel Tyre,In White Color
Sinotruk Howo 8m3 Concrete Mixing Transport Trucks 380 HP 6 X 4 10 Wheel Tyre,In White Color
Sinotruk Howo 8m3 Concrete Mixing Transport Trucks 380 HP 6 X 4 10 Wheel Tyre,In White Color
Sinotruk Howo 8m3 Concrete Mixing Transport Trucks 380 HP 6 X 4 10 Wheel Tyre,In White Color
Sinotruk Howo 8m3 Concrete Mixing Transport Trucks 380 HP 6 X 4 10 Wheel Tyre,In White Color
Sinotruk Howo 8m3 Concrete Mixing Transport Trucks 380 HP 6 X 4 10 Wheel Tyre,In White Color
Sinotruk Howo 8m3 Concrete Mixing Transport Trucks 380 HP 6 X 4 10 Wheel Tyre,In White Color
Sinotruk Howo 8m3 Concrete Mixing Transport Trucks 380 HP 6 X 4 10 Wheel Tyre,In White Color
Sinotruk Howo 8m3 Concrete Mixing Transport Trucks 380 HP 6 X 4 10 Wheel Tyre,In White Color
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Supply Ability :
150 Set/Sets per Month
Delivery Time :
Within 35 days
Packaging Details :
In nude
Brand :
Howo
Color :
White
Wheelbase (mm) :
3800+1350
Gear Box :
HW19710
Steering Mechanism :
ZF8118
Tyre :
12.00R20
Description

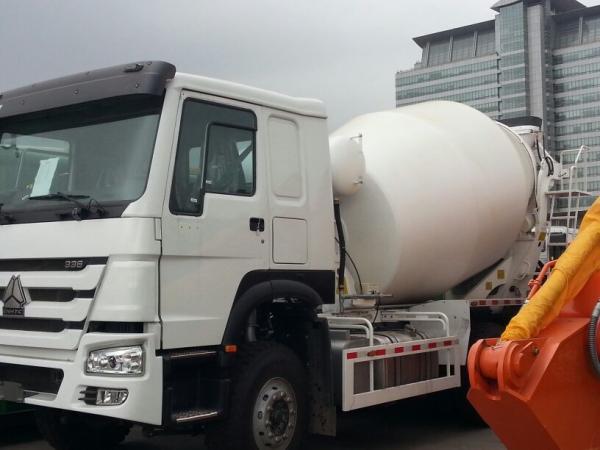

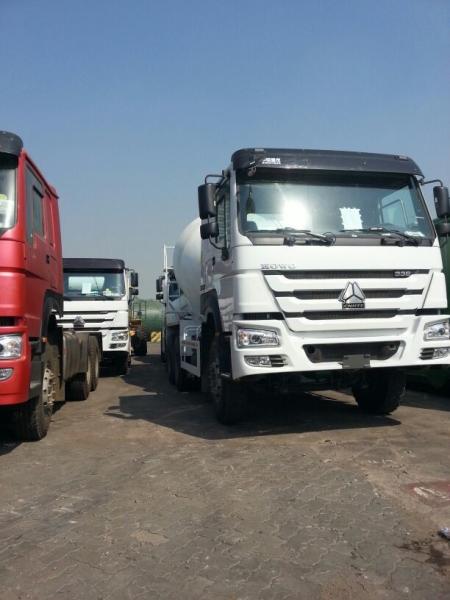

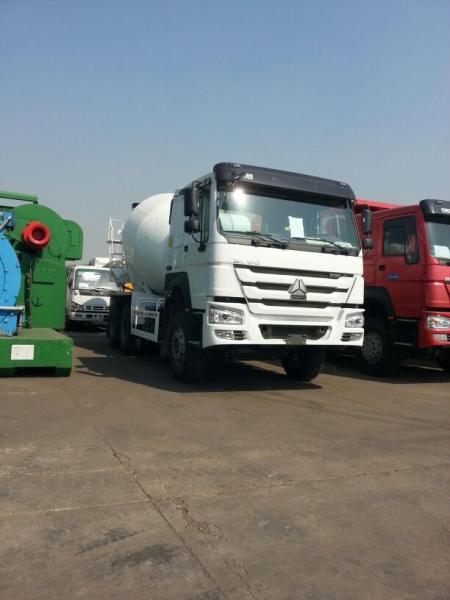

2019 Sinotruk howo 8m3 concrete mixing transport truck

Mixer concrete mixer truck, cement mixer, concrete mixer) used to transport construction of concrete special trucks;Because of its appearance, also often referred to as field.This kind of truck on device type cylinder concrete mixture mixing tube to carry.In the process of transportation will keep stirring drum rotation, to ensure the delivery of concrete will not set.After carrying the concrete, usually rinse mixing barrel inside, take up space, prevent hardening of the concrete mixing drum volume less and less.

Specification for concrete mixing transport truck

Model Sino howo 8m3 mixer truck
Whole Vehicle Performance & Parameters Chassis Sinotruk HOWO(Left hand driving)
Curb Weight (Kg) 10800
Total Vehicle Weight (Kg) 31000
Outline Dimension(L*B*H) (mm) 1038x2500x3850
Wheelbase (mm) 3800+1350
Max Traveling speed(km/h) 90
Vehicle Configuration Clutch Dry Single Disc Clutch (φ430)
Gear Box HW19710
Steering Mechanism ZF 8118
Service Brake Dual-circuit Air Brake
Parking Braking Spring-powered Air-cut-off Brake
Auxiliary Brake Engine Exhaust Brake
Tyre 12.00R20
Front/Rear Axle HF9/HC16
Cab HW76 cab, one sleeper with A/C.
Engine Parameters Model WD615.69 336hp
Type Diesel 4-stoke Direct injection, 6-cylinder in line, Turbo-charging, Inner cooling.
Emission Standard EuroII
Max Power (KW) 336HP(2200r/min)
Max Torque 1490 N.m
Mixing Drum Parameters Max Mixing Cubage (m3) 12
Feeding Speed (m3) ≥3
Discharging Speed (≥m3) ≥3
Leftover Rate <0.3%
Max Rotating Speed (r/min) 14---16
Mixing Drum Obliquity (°) 5--8
Max Mixing Drum Diameter (mm) φ2412
Driving System Hydraulic Pump Sao 100
Hydraulic Motor Sao 100
Speed reducer Italy TOP P90
Water supply mode Water pump; pneumatic pump
Sinotruk Howo 8m3 Concrete Mixing Transport Trucks 380 HP 6 X 4 10 Wheel Tyre,In White ColorSinotruk Howo 8m3 Concrete Mixing Transport Trucks 380 HP 6 X 4 10 Wheel Tyre,In White Color
Sinotruk Howo 8m3 Concrete Mixing Transport Trucks 380 HP 6 X 4 10 Wheel Tyre,In White Color
