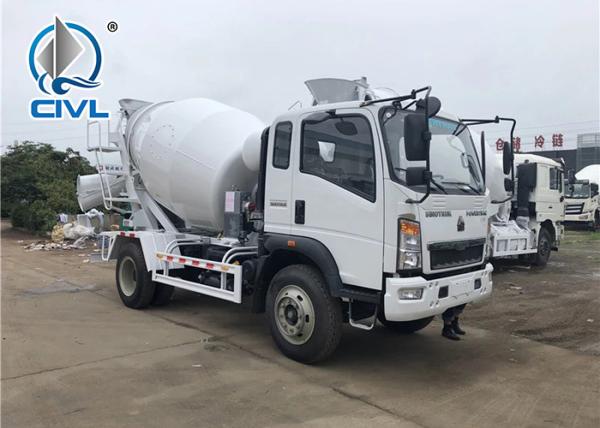

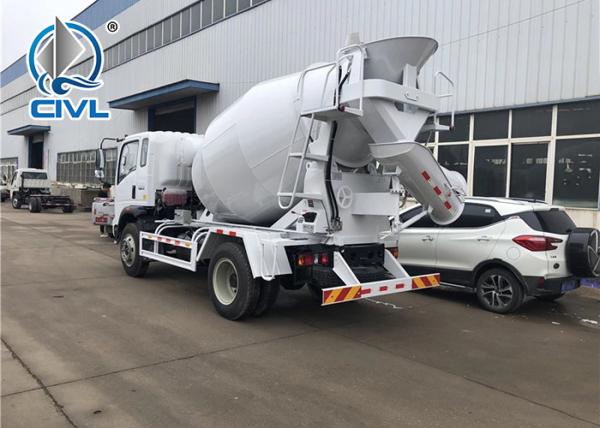

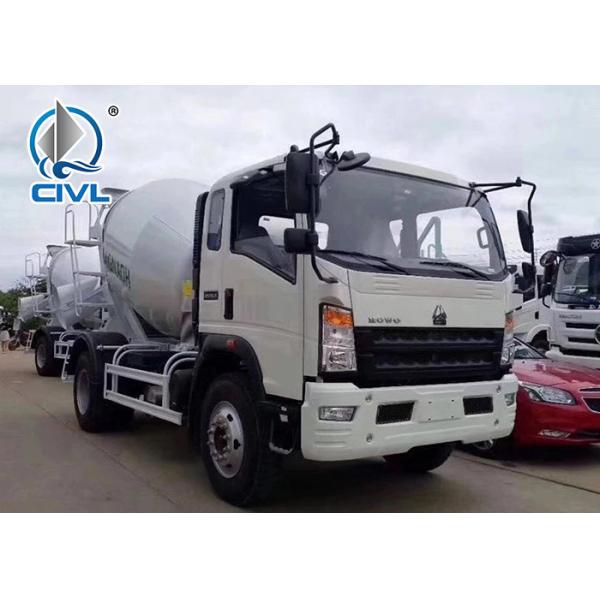

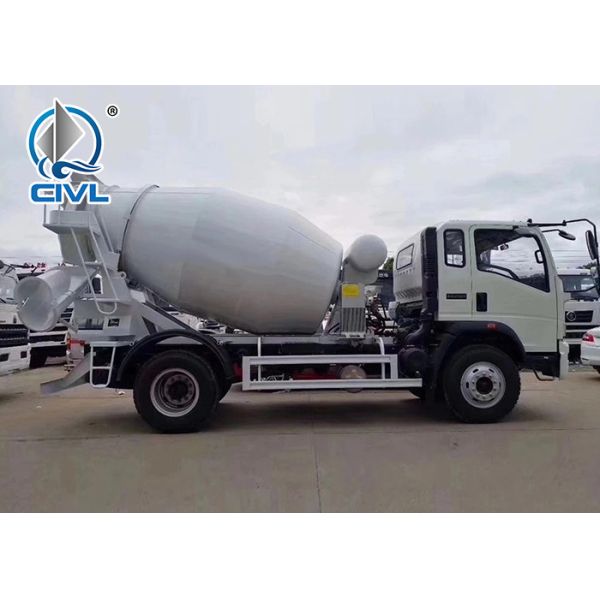

Howo 4x2 11-13 Degree Tilt 6 Wheel 6cbm PMP Pump Cement Concrete Truck Mixer
Howo 4x2 11-13 Degree Tilt 6 Wheel 6cbm PMP Pump Cement Concrete Truck Mixer
Howo 4x2 11-13 Degree Tilt 6 Wheel 6cbm PMP Pump Cement Concrete Truck Mixer
Howo 4x2 11-13 Degree Tilt 6 Wheel 6cbm PMP Pump Cement Concrete Truck Mixer
Howo 4x2 11-13 Degree Tilt 6 Wheel 6cbm PMP Pump Cement Concrete Truck Mixer
Howo 4x2 11-13 Degree Tilt 6 Wheel 6cbm PMP Pump Cement Concrete Truck Mixer
Howo 4x2 11-13 Degree Tilt 6 Wheel 6cbm PMP Pump Cement Concrete Truck Mixer
Howo 4x2 11-13 Degree Tilt 6 Wheel 6cbm PMP Pump Cement Concrete Truck Mixer
Specifications
Brand Name :
Sinotruck HOWO
Model Number :
4x2
Certification :
CCC ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 units /month
Delivery Time :
within 30 days after get the deposit
Packaging Details :
Nude
Driving mode :
4x2
Power of Engine :
160HP
Engine standard :
Euro II
Tilt :
11-13 degree
Dimension :
8000x2400x3500 mm (LWH)
Volume :
6m³
Color :
cutomised
Description

howo 4x2 11-13 degree tilt 6 wheel 6cbm PMP pump cement concrete mixer truck

Description:

howo 4x2 11-13 degree tilt 6 wheel 6cbm PMP pump cement concrete mixer truck

Cabin:Standard cab with One sleeper, with 4-point support fully

floating suspension and shock absorbers, with air conditioner

1. Concrete Mixer for sale


2. Brand: HOWO


3. Engine Power: 130/160/266/290/336/371Hp for choose.


4. Drive model: 4*2/6*4/8*4 for choose.


5. Drive Type: LHD/RHD for choose.


6. Volume: 3CBM-15CBM for choose.

Specification:

Cabin Driving type 4x2 LHD/RHD
2080 cabin with two seats with one bed, 70°hydraulically tillable to the front as attached photo for ref.
Main Dimensions Overall dimensions (L x W x H)mm 8000×2400×3500
Wheel base (mm) 3800
Weight in KGS Tare Weight 5,800
payload 10,000
Front axles loading capacity 5,000
Rear axles loading capacity 9,000
Max. driving speed(km/h) 87
Engine Brand YUCHAI
Model YC4D130-33
Type 4-stroke direct injection , in-line, water cooling, turbo charged
Horse Power(HP) 130HP
Emission standard Euro III
Gearbox WLY653H, 6 Forwards gear & 1 reverse gear
Tire 9.00R20 All Steel Meridian Tyre 7 pcs including one spare tire
Brakes Service brake: dual circuit compressed air brake
Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
Mixer volume 3cbm/5cbm/8cbm optional

Advantage:

1). Using hydraulic transmission device, do not rely on external force, easy to use, continuous rotation of the tank during transport, commercial concrete does not precipitate, not segregation.


2). Easy to operate, a handle to achieve centralized control of mixing tank, the configuration mature and reliable, easy maintenance.


3). Low noise, no smoke, safe and reliable.


4). The use of high-intensity wear-resistant steel plate mixing tank, durable.


5). Unique inlet setting, easy to spread material.


6). Small size, transport flexibility, easy operation and maintenance, power consumption, energy-saving effect is remarkable.


7). Blade design is reasonable, the discharge residue rate is low.

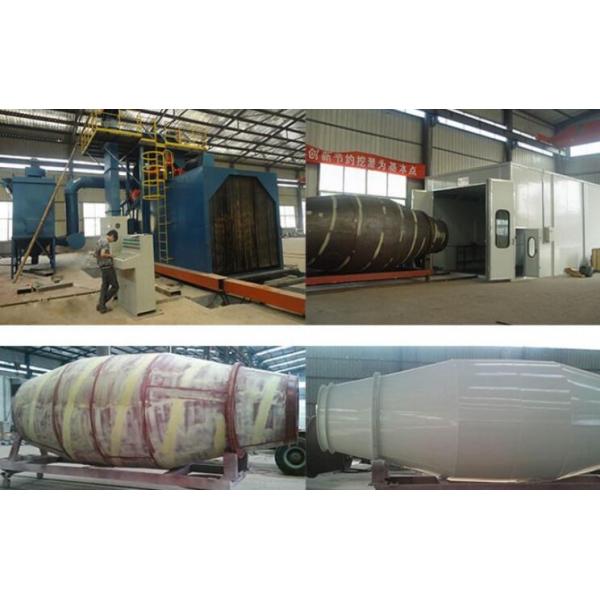

Details photos:

Howo 4x2 11-13 Degree Tilt 6 Wheel 6cbm PMP Pump Cement Concrete Truck MixerHowo 4x2 11-13 Degree Tilt 6 Wheel 6cbm PMP Pump Cement Concrete Truck Mixer

Howo 4x2 11-13 Degree Tilt 6 Wheel 6cbm PMP Pump Cement Concrete Truck Mixer

Pre-service:

  1. Inquiry and Consulting support.
  2. Sample testing support.
  3. View our factory.
  4. Design various solutions as buyer's requirement.


After-sale service:

  1. Training how to use and maintain the truck.
  2. Our engineers supply the support of technology.
  3. 12 months warranty for 3 key spare parts(Engine,Transmission,Axle)
  4. Parts supply on time.
  5. 24 hours service and technology support.

FOR SALE:
TIPPER TRUCK ;TANKER TRUCK ;MIXER TRUCK;TRACTOR TRUCK ;CARGO TRUCK.....ETC
ROLLOER ;LOADER;EXCAVATOR ;TRUCK CRANE ...ETC
LOWBED ;TANK ;BULK CEMENT ;CONTAINER ;FLATBED TRAILER ....ETC
SPARE PARTS ;TIRE ...ETC
