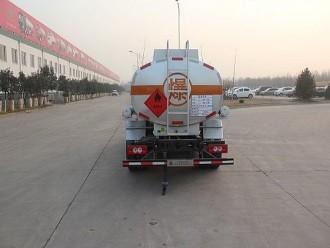

4.1 Cubic Meters 6 Wheel Oil Tanker Truck Liquid Tanker Truck , Fuel Oil Delivery Truck
4.1 Cubic Meters 6 Wheel Oil Tanker Truck Liquid Tanker Truck , Fuel Oil Delivery Truck
4.1 Cubic Meters 6 Wheel Oil Tanker Truck Liquid Tanker Truck , Fuel Oil Delivery Truck
4.1 Cubic Meters 6 Wheel Oil Tanker Truck Liquid Tanker Truck , Fuel Oil Delivery Truck
4.1 Cubic Meters 6 Wheel Oil Tanker Truck Liquid Tanker Truck , Fuel Oil Delivery Truck
4.1 Cubic Meters 6 Wheel Oil Tanker Truck Liquid Tanker Truck , Fuel Oil Delivery Truck
4.1 Cubic Meters 6 Wheel Oil Tanker Truck Liquid Tanker Truck , Fuel Oil Delivery Truck
4.1 Cubic Meters 6 Wheel Oil Tanker Truck Liquid Tanker Truck , Fuel Oil Delivery Truck
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets / every month
Delivery Time :
Within 35 days
Packaging Details :
IN NUDE
Type of fuel :
Diesel
Front/Rear overhang :
1120/1515
Axle nos :
2
Tyre nos :
6
Description

Refuelling truck ,Effective volume of tank 4.1 cubic meters,6 wheel

The refuelling truck 's parameters as the following

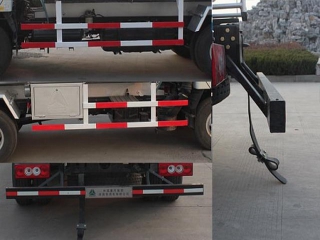

Effective volume of tank: 4.1 cubic meters, the shape of tank size (length x length short axis x axis) (mm) : 3900 (the actual length 3000, 900 of them long for installation of nc tanker) x 1650 x 1100. Medium: diesel oil, crude oil, gasoline; Medium density respectively: 830 kilograms/stere, 810 kg/m3, 700 kg/m3. The material of side and bottom side protective device for Q235, connections are bolted connection, after the section size of the lower protective device for (width x height) : 50 mm * 100 mm, and height from the ground is: 435 mm. Only use equipment front axle disc brake, speed limiter, ABS and radial tyre chassis. ABS system model: ECU: 4460043200; Electromagnetic valve: 4721950180; The car should be installed with the motion of the satellite positioning function recorder. The optional rearview mirror, optional dash.

Vehicle name Refuelling truck
Vehicle type Special vehicle
Vehicle model SHMC5070GJYD
Engine model ISF3.8s4R141 Engine power 105
Vehicle name 81
ISF2.8s4117V 87
Engine displacement 3760 Engine manufacturers Beijing fukuda cummins engine co., LTD
2771
2780
Overall dimensions(L/W/H) 5995*2080*2340 Type of fuel Diesel
Total weight(Kg) 7360 Payload capacity 3
Curb weight(kg) 3920 Permitted capacity 3310
3245
Spring nos 3+1/6+7,7/4+5 Front passenger(person) 2,3
Approach/Departure angle 21/16 Front/Rear overhang 1120/1515
Wheelbase(mm) 3360 Axle load 2945/4415
Axle nos 2 Max. drive speed (km/h) 80
Tyre nos 6 Tyre specification 7.00-16,7.00R16,7.50-16,7.50R16
Front wheel track 15,301,730 Rear wheel track 14,851,590
Steering model Steering wheel
Chassis standard GB17691-2005EURO IV,GB3847-2005
Identification code LVBV4JBB******

4.1 Cubic Meters 6 Wheel Oil Tanker Truck Liquid Tanker Truck , Fuel Oil Delivery Truck

tank car, watering cart, sprinkler,sprinkler truck ,water spraying

water tank truck, water tank lorry, tank water, tanker, tank truck, tank apparatus, water tanker
fuel tank car,oil tank truck,tank truck ,tanker,oil tank truck, oil tanker, refuel truck, refuelling truck,oil truck,fuel truck,petrol tanker, fuel vehicle, fuelling vehicle, fuel tanker truck,fuel-transport vehicles
