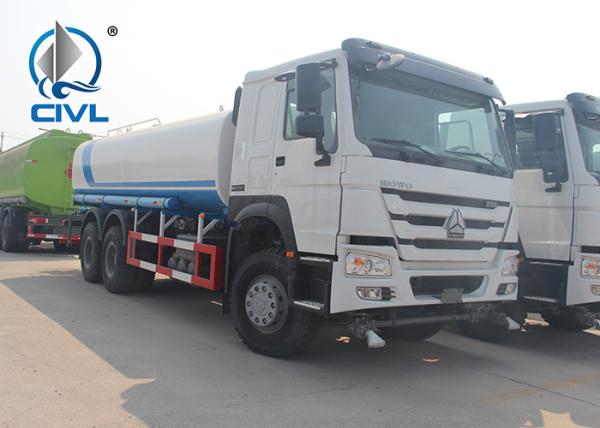

SINOTRUK HOWO 290HP 6X4 10 Wheels 20 Cubic Meters Water Tank Water Sprinkler Truck
SINOTRUK HOWO 290HP 6X4 10 Wheels 20 Cubic Meters Water Tank Water Sprinkler Truck
SINOTRUK HOWO 290HP 6X4 10 Wheels 20 Cubic Meters Water Tank Water Sprinkler Truck
SINOTRUK HOWO 290HP 6X4 10 Wheels 20 Cubic Meters Water Tank Water Sprinkler Truck
SINOTRUK HOWO 290HP 6X4 10 Wheels 20 Cubic Meters Water Tank Water Sprinkler Truck
SINOTRUK HOWO 290HP 6X4 10 Wheels 20 Cubic Meters Water Tank Water Sprinkler Truck
SINOTRUK HOWO 290HP 6X4 10 Wheels 20 Cubic Meters Water Tank Water Sprinkler Truck
SINOTRUK HOWO 290HP 6X4 10 Wheels 20 Cubic Meters Water Tank Water Sprinkler Truck
SINOTRUK HOWO 290HP 6X4 10 Wheels 20 Cubic Meters Water Tank Water Sprinkler Truck
SINOTRUK HOWO 290HP 6X4 10 Wheels 20 Cubic Meters Water Tank Water Sprinkler Truck
Specifications
Place of Origin :
CHINA CNHTC
Brand Name :
SINOTRUK HOWO
Certification :
ISO CCC
Model Number :
ZZ5207M3217N
MOQ :
1 unit
Price :
Negotiable
Packaging Details :
Nude
Delivery Time :
Within 20-30 days after the receipt of the deposit
Payment Terms :
LC/TT etc
Supply Ability :
100 units per week
Brand :
HOWO
Color :
Red|Green
Drive Wheel :
6X4
Emission Standard :
EURO 2/3/4
Fit for :
Water
Horsepower :
290HP
Maker :
SINOTRUCK
Product Name :
Water Tanker Truck
Tank Volume :
15000L
Description

SINOTRUK HOWO 290HP 6X4 10 Wheels 20 Cubic Meters Water Tank Water Sprinkler Truck

Techincal Service of HOWO Liquid Tank Truck:

First-class enterprise and first-class products can only be made with first-class R&D capability.

Customer demand has always been the driving force of Sinotruk's change and innovation and the

core of Sinotruk product research and development. Sinotruk R&D is devoted to providing

tailor-made solutions for our customers.

Specification of HOWO Liquid Tank Truck:
Product Name

SINOTRUK HOWO 6X4 Liquid Tank Truck
Chassis Model
ZZ1257M4347W
Driving Type
LHD (RHD is optional)

Cabin
HW76, with one sleeper and two seats, double arm windscreen wiper system with
three speeds, damped adjustable driver's seat, with heating and ventilating system,
exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner,
with transverse stabilizer, with four piont support floating suspension+shock absorber.
Engine
Make: SINOTRUK
Diesel 4-stroke direct injection diesel engine
Engine model: WD615.47, Euro 2, 371 HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 9.726 L
Transmission
HW19710, 10F & 2R, with PTO
Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering
ZF power steering, modol ZF8118, hydraulic steering with power assitance
Front Axle
HF9,1x9000 KGS
Steering with doubleT-cross section beam
Rear Axle
HC16, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction,with differential
locks between wheels and axles.
Ratio:5.73
Propeller Shaft
Double universal joint propeller shaft with gear-shaped coupling flange
Chassis
Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced
subframe all cold riveted cross members Front suspension:10 semi elliptic leaf
spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer
Brake
Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on
front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Electrics
Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

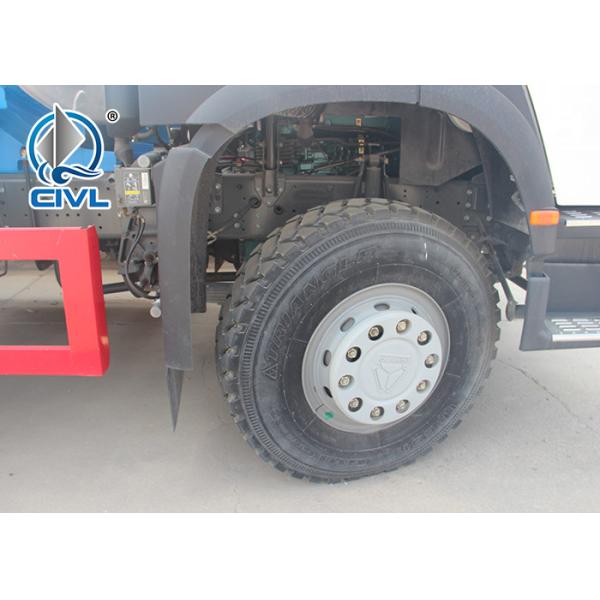

Tyres
295/80R22.5, tubeless tyres with one spare tyre
Fuel Tank
400
Oil Tank Body
20 Cubic Meters, with front and rear sprinkling system.
Overall Dimension
9400*2550*3400 mm
SINOTRUK HOWO 290HP 6X4 10 Wheels 20 Cubic Meters Water Tank Water Sprinkler TruckSINOTRUK HOWO 290HP 6X4 10 Wheels 20 Cubic Meters Water Tank Water Sprinkler TruckSINOTRUK HOWO 290HP 6X4 10 Wheels 20 Cubic Meters Water Tank Water Sprinkler Truck

Shipping Service of HOWO Liquid Tank Truck:

Sinotruk has established good strategic partnership with many shipping companies which have professional

logistics operation experience and are specialized in services for vehicle logistics, CKD, SKD, ect to

meet different requirements of different customers.
