Sinotruck ZZ1317M4611W

(Left Hand Driving Type)

Porous granular ANFO: ≥400; Powdery ANFO: ≥200

Charging speed: regulated and controllable

Charge transfer mode, range

feeding swing arm with delivery hose

HW76 cab (equivalent to), with two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn,air conditioner , with

transverse stabilizer,with 4-point support fully floating suspension + shock absorber.

Diesel 4-stroke direct injection diesel engine

/Engine model: WD615.87, Euro 2, 336 HP

6-cylinder in-line with water cooling, turbo-charging and intercooling (equivalent to)

Displacement: 9.726 L

Heater of engine before starting

HW19710, 10F & 2R.

Transfer disk: 1-Ф430мм

ZF power steering, model ZF8098, hydraulic steering with power

assistance (equivalent to)

HC16(equivalent to), 2x16000 KGS, Ratio:4.42HC16, 2x16000 KGS

Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. Ratio:4.42

2 чагтан голтой, араа хэлбэртэй холбогч бүхий кардан гол Double universal joint propeller shaft with gear-shaped coupling

flange

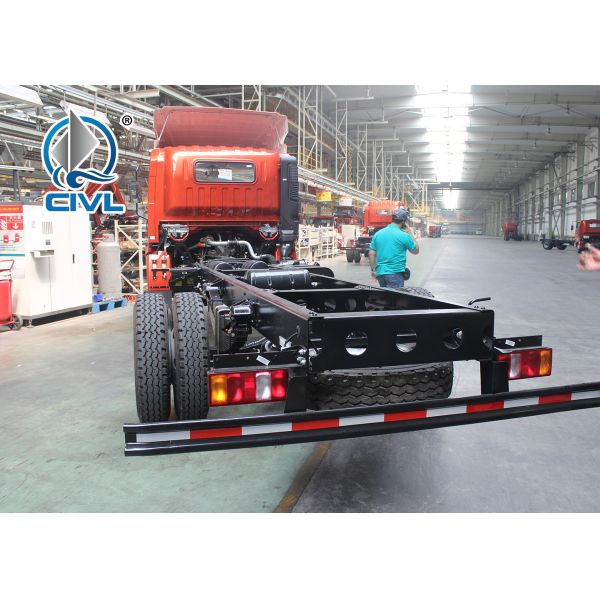

Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members

Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer

Service brake: dual circuit compressed air brake ABS

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brake

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Overall

Dimension

According to the standard regulation of safety and firefighting of

explosive carrier
