Major Technical Parameters

Features of concrete mixer

The forcing type concrete mixer with double horizontal shafts is applied to preordered construction element plants in medium-and-large scale and construction departments for industrial and civil architectural engineering of highways, bridges, water conservancy, ports and decks in mixing hard concrete, plastic concrete, liquid concrete, lightweight aggregate concrete and all kinds of mortar. Besides operating as an independent machine, it can combine with various batching machine to form simple mixing station.

1 Motion track

The revolution and rotation speed of the blades have been extensively studied and tested to give the mixer a high output causing the segregation of materials with different grain size and weight.The movement of the material inside the trough is smooth and continuous.

2 Observing port

There is an observing port on the maintaining door.You can observe the mixing situation without cutting off power.

3 Mixing device

Compulsory mixing is realized by composite moves of extruding and overturning driven by rotating planets and blades.Mixing blades are designed in parallelogram structure (patented),which can be turned 180o for reuse to increase service life.Specialized discharge scraper has been designed according to discharge speed in order to increase productivity.

4Discharging device

According to the different demands of customers,the discharging door can be opened by hydraulic,pneumatic or by hands.The number of discharging door is three at most.And there is special sealing device on discharging door to ensure the sealing reliable.

6 The hydraulic power unit

A special designed hydraulic power unit is used to provide power for more than one discharging gates.On emergency,these discharging gates can be opened by hand.

7 Maintaining door and security device

In order to improve the security of using the product,reliable high-sensitive security switches are in the maintaining door to make the maintaining work safe and convenient.

8 Water spray pipe

The special designed sprayer is installed on the water pipe.The spraying water cloud can cover more area and also make the mixing more homogeneous.

9 Security identifier

Based on years of accumulated experience,a variety of security identification are attached to the mixer,user-friendly design concept ,enabling customers to use more secure,more at ease.

Features

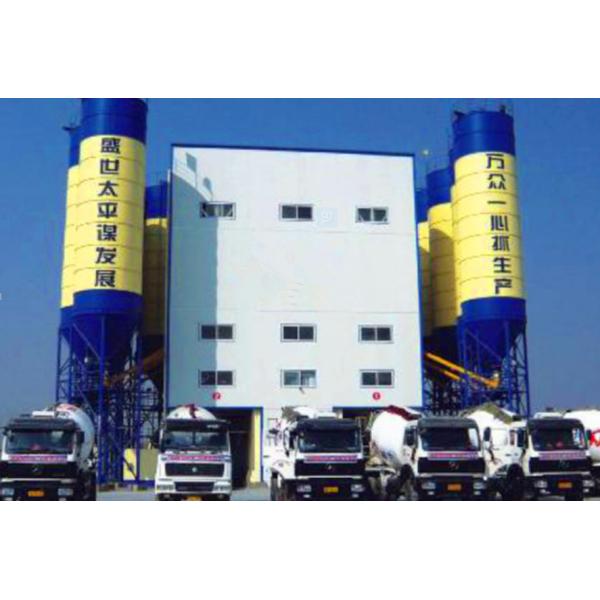

1.HLS series second-order concrete mixing plant adopts biaxial horizontal double-shaft compulsory concrete mixer with even better mixing quality.

2.Lump-sum aggregate equipped with the same capacity of mixer,the productivity was 15%-30%higher than HZS series.

3.Aggregate, water and additive weighing, control, signal conversion device are imported components, high precision sensor, automatic computer control, referred to as a separate weighing (or total weight), the weighing accuracy is high and stable working performance

4.The machine can be controlled by computer, automatic control and manual operation.

5. The tower look orderly and magnificent, with main body closed with insulation board or single-layer color coated sheet ; the tower inside is easy to clean, and the operating room was closed, with air conditioning, cool in summer and warm in winter, greatly improved the working environment.

Note: All the electrical components are based on 380V/50Hz.

Shipment: By Ship

Country of Origin: China

Warranty: One year warranty for all mechanical parts (Wearing and electric parts are not included in warranty).

Installation: After finished the delivery, The Buyer shall inform The Seller the time and place for supervision to installation, commissioning and training. The seller shall send technician to supervise the erection, commissioning and test-run of the contract equipment. The round-trip air ticket (from China to the destination), accommodation and travel expenses should be at buyer’s cost, while the wages will be borne by the seller.

Delivery Time: Within 20-27 working days delivery after our receipt of deposit.
