51 M Cement Pump Truck Cement Transport Trucks 4 Sections Arms 50m³ Output, HB52B/HB52A-I
51 M Cement Pump Truck Cement Transport Trucks 4 Sections Arms 50m³ Output, HB52B/HB52A-I
51 M Cement Pump Truck Cement Transport Trucks 4 Sections Arms 50m³ Output, HB52B/HB52A-I
51 M Cement Pump Truck Cement Transport Trucks 4 Sections Arms 50m³ Output, HB52B/HB52A-I
51 M Cement Pump Truck Cement Transport Trucks 4 Sections Arms 50m³ Output, HB52B/HB52A-I
51 M Cement Pump Truck Cement Transport Trucks 4 Sections Arms 50m³ Output, HB52B/HB52A-I
51 M Cement Pump Truck Cement Transport Trucks 4 Sections Arms 50m³ Output, HB52B/HB52A-I
51 M Cement Pump Truck Cement Transport Trucks 4 Sections Arms 50m³ Output, HB52B/HB52A-I
51 M Cement Pump Truck Cement Transport Trucks 4 Sections Arms 50m³ Output, HB52B/HB52A-I
51 M Cement Pump Truck Cement Transport Trucks 4 Sections Arms 50m³ Output, HB52B/HB52A-I
Specifications
Brand Name :
CIVL
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Supply Ability :
1000 units/month
Delivery Time :
Within 35 days
Packaging Details :
Waxed on deck
Model Number :
CIVL
Certification :
ISO,CCC
Overall Dimension :
12000×2490×3800
Engine Power :
310HP
Working Output Heigth :
15.1M
Rotation Angle :
+-160°
Total Weight :
30000Kg
Driving Mode :
6x4
Chassis :
Mercedes Benz/ Volvo/ Hino/ HOWO
Height :
51m
Description

51 M Vertical Cement Pumping Truck With 4 Sections Arms And 50m³ Output

Feature

1. Diesel Engine: LOVOL, Sino-British Joint Brand

2. Main oil pump: Japanese Kawasaki

3. Seal parts: American Parker

4. Main electric parts: original Omron or LS electrical devices

5. Manual switch of high pressure and low pressure is equipped

6. Pipe joints: American Eaton

7. Spare parts and tools

8.The power system is consisted by technical diesel engine or electrical engine.

9.It can drive the pumping system directely which samplized the linkage structure and improved the efficiency.

10.Strong power system reduced the rate of occuring faults;

11.The elements of electrical controlling system is adopted Japan and Gemany's original parts.The excellent assembly

quality fully guaranteed the function of electrical controllingsystem.

12.The special design of hopper and vane reduces the space of mixing blind angle thus makes the machine suitable for many kinds of concrete.;

Specifications

e

unit

HDT5281THB-37/4

HDT5291THB-37/4

HDT5291THB-39/4

output in theory

m3/h

125

125

125

index of the pump carry capacity

Mpa.m3/h

586

586

586

theoretic pumping pressure

Mpa

8.5

8.5

8.5

bucket volume

L

700

700

700

height of top surface of bucket

mm

1370

1370

1370

model of dirstribution valve

S Valve

S Valve

S Valve

max. operation radius

m

32.6

32.6

34.7

max. operation height

m

36.6

36.6

38.7

max. operation depth

m

25.5

25.5

27

open height of boom

mm

8450

8450

8830

distance between front landing legs

mm

7058

7058

6800

distance between rear landing legs

mm

6848

6848

7000

distance between front & rear landing legs

mm

6790

6790

7432

diameter of delivery pipe

mm

125

125

125

length of hose pipe

m

4

4

4

rotary range of boom

370°

365°

365°

quantity of boom

4

4

4

rotary angle of each boom

°

92/180/180/270

92/180/180/270

91/180/180/180/270

wire line control distance

m

33

33

33

romote control distance

m

200

200

200

max. speed

km/h

85

90

90

min. turn radius

mm

8800

8800

8800

brake distance

m

7

7

7

approach angle

°

16

16

16

departure angle

°

11

11

11

chassis model

ISUZU CYZ51Q

HOWO ZZ5307N4647C

HOWO ZZ5307N4647C

, wheel base between the first & the second axle

mm

4595

4600

4600

,wheel base between the second & the third axle

mm

1310

1350

1350

front tread

mm

2065

2022

2022

rear tread

mm

1850

1830

1830

max. engine output power

kw

265(1800r/min)

247(2200r/min)

247(2200r/min)

max. engine output torque

n.m

1422(1100r/min)

1350(1100-1600r/min)

1350(1100-1600r/min)

max, gradient ability

%

37

35

35

fuel consumption

L/100km

36.6

34

34

(××)out dimension(L×W×H)

mm

12000×2490×3800

12000×2490×3850

12500×2490×3950

total weight

kg

28000

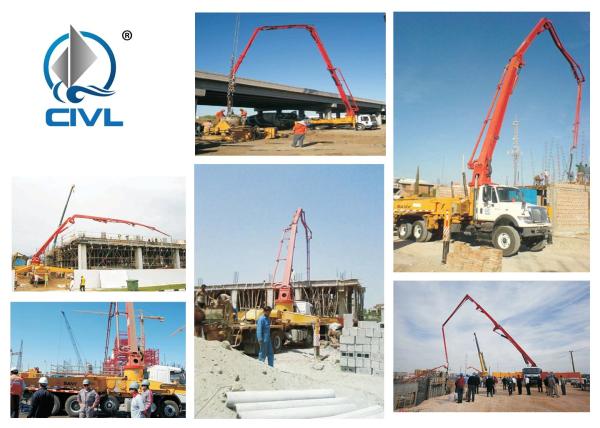

Photos

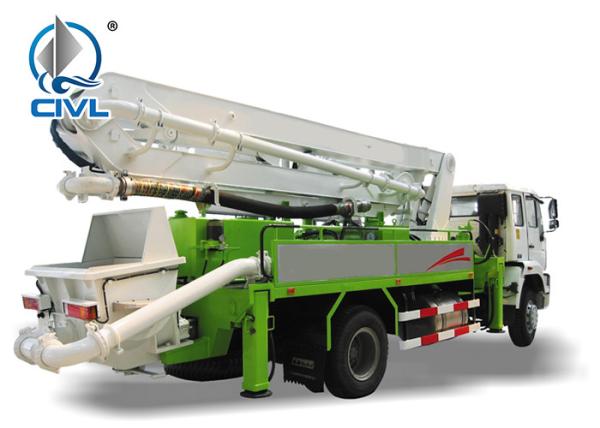

51 M Cement Pump Truck Cement Transport Trucks 4 Sections Arms 50m³ Output, HB52B/HB52A-I

Other Construction machinery can be provide according to your request, freely contact me for the informations and quotations.

The main products we deal with now are SINOTRUK HOWO, XCMG, SHANTUI, ZOOMLION and SANY.
Truck series:

1.dump trucks; cargo trucks
2. tractor trucks;
3. tanker trucks,( water tanker and oil tanker)
4. mixer trucks and concrete pump truck
5. mine dump trucks( 4x2 off-road mine tipper, 6x4 70T mine dump truck, 6x6 articualted dump trucks)
6. full drive trucks( 4x4. 6x6 and 8x8 Trucks)
7, garbage trucks( garbage compector truck, suction trucks)
8. truck cranes(normal road truck crane, truck mounted crane)
9. special trucks( wrecker trucks, military trucks...)
10. truck trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11. truck spare parts( howo, howo A7, golden prince all series trucks parts supplying)

Machine series:

1.Wheel loader,Backhoe loder, brick making machine

2.Roller,

3.Motor Grader,

4.Bulldozer,

5.Excavator,

6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane),

7,forklift and 45t contain reach stacker

8,paver and so on

International Market:Ethiopia/Africa/Uganda/Chad/Zambia/Tanzania/Liberia/Myanmar

/Cambodia/Thailand/Malaysia
