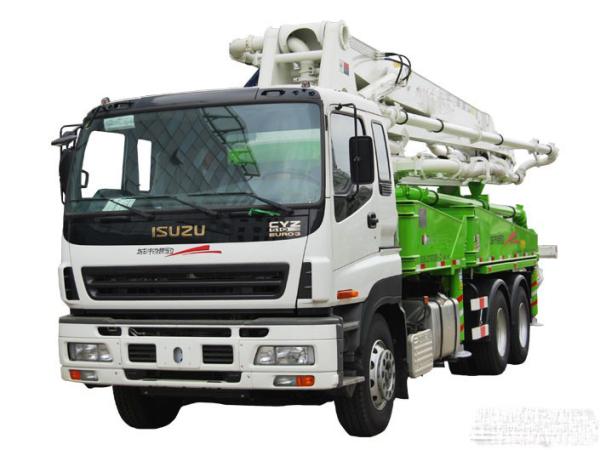

Heavy Duty Concrete Pump Truck With 52m / 56m Boom Isuzu CYH51Y
Heavy Duty Concrete Pump Truck With 52m / 56m Boom Isuzu CYH51Y
Heavy Duty Concrete Pump Truck With 52m / 56m Boom Isuzu CYH51Y
Heavy Duty Concrete Pump Truck With 52m / 56m Boom Isuzu CYH51Y
Heavy Duty Concrete Pump Truck With 52m / 56m Boom Isuzu CYH51Y
Heavy Duty Concrete Pump Truck With 52m / 56m Boom Isuzu CYH51Y
Heavy Duty Concrete Pump Truck With 52m / 56m Boom Isuzu CYH51Y
Heavy Duty Concrete Pump Truck With 52m / 56m Boom Isuzu CYH51Y
Specifications
Place of Origin :
China
Brand Name :
CIVL
Certification :
ISO,CCC
Model Number :
CIVL
MOQ :
1
Price :
Negotiable
Packaging Details :
Nude
Delivery Time :
Within 35 days
Payment Terms :
LC/TT
Supply Ability :
300 units per week
color :
customised
transportation :
by bulk ship
Description

Heavy Duty Concrete Pump Truck With 52m / 56m Boom Isuzu CYH51Y

International Market:Ethiopia/Africa/Uganda/Chad/Zambia/Tanzania/Liberia/Myanmar

/Cambodia/Thailand/Malaysia

Description:

1. In 1982, the China’s first concrete pump truck rolled off the production line in Shantui Chutian.

2. Sino Heavy Machinery CO., LTD(SHMC) is the authorized company of Shantui. In 2013, Shantui-SHMC S9

concrete pump trucks made greater achievements.

3. Advantages:

A. Energy Saving. Supporting overall power matching and automatic adjustment of engine and oil pump; Design

with a motor-driven radiator to ensure automatic control, high efficiency and energy conservation; Average

fuel consumption for pumping operation reduced by 20%.

B. Stand wear and tear.

End elbow-designed with patented technology to ensure prolonged life time up to 30,000m3.

Concrete piston- Made of high-strength composite materials to ensure prolonged life time to 25,000m3.

Glasses plate-Mounted with cemented carbide to ensure prolonged life time up to 50,000m3.

Cutting ring-Mounted with cemented carbide to ensure prolonged life time up to 25,000m3.

Conveyor cylinder-Inner chrome-plated coating 30um, hardness>HV900, with extended life cycle up to 15,000m3.

Heavy Duty Concrete Pump Truck With 52m / 56m Boom Isuzu CYH51YHeavy Duty Concrete Pump Truck With 52m / 56m Boom Isuzu CYH51Y

Specifications:

Model

SHMCHJC5410THB-52/56

Dimension L*W*H

13850*2500*4000

Truck GVW

42000kg

Folding Type

6 sections RZ-type

Boom Swirling Angle

90/180/180/240/220/110.

Boom Vertical Height

53m

Boom Horizontal Length

48m

Boom Vertical Depth

34m

Minimum Boom Height(Extended)

12.5m

Turntable Rotation Angle

±360.

Outrigger Operating Method

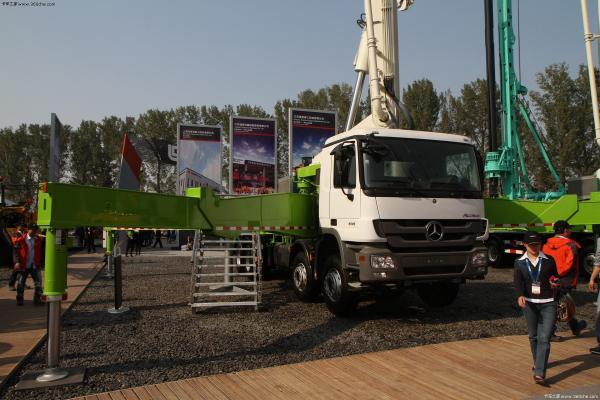

X-shaped outrigger

Maximum Span Front Outrigger(Extended)

9.51m

Maximum Span Rear Outrigger(Extended)

12.8m

Theoretical Concrete Output

120m3/h with high pressure

170m3/h with low pressure

Theoretical Pumping Pressure

High pressure: 12Mpa

Low pressure:8.3Mpa

Conveyor Cylinder Bore

260mm

Conveyor Cylinder Stroke

2200mm

Hopper Capacity

800L

Oil Pressure

32Mpa

Remote controller

Germany HBC

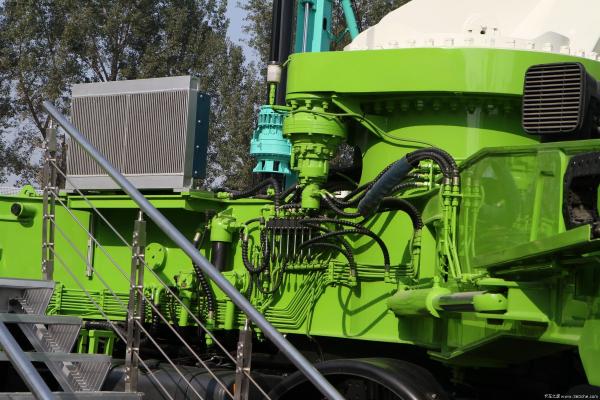

Hydraulic Oil Cooling

Air cooling

Model of chassis

Isuzu CYH51Y

Engine Power

287kw/1800rpm

Emission Standard

Euro III
