Specifications
Brand Name :
CIVL
Model Number :
CIVLZ3257N3857C1
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
5000 units per month
Delivery Time :
Within 35 days
Packaging Details :
Nude
Drive way :
6x6
Truck type :
CV3257N3857C1
Horsepower :
300hp/option 336hp/371hp
Axle :
3 pcs
Load capacity :
30T
Tire :
1200R20/ option
Container length :
5.17m
Product name :
Dumper Truck /tipper truck
Description

6x6 Dumper Truck 300hp Engine New Dumper Lorry 25tons Tip Lorry Stone Transportation Of Sand And Gravel

Description:

Tipper truck, the structure of the engine, chassis and cab is the same as that of general trucks.

The cargo box can tip over backwards or sideways

Drive type: 6X6

Engine model: WD615.97C

Maximum horsepower: 300 horsepower

Transmission model: HW15710C

Forward gear: 10th gear

Container length: 5.17m

Chassis Specifications (option):
chassis information Announcement model: ZZ3257N3857C1/T2WA
Drive type: 6X6
Wheel base: 3800+1400mm
Body length: 8.238m
Body width: 2.496m
Body height: 3.25m
Track width: front track width: 2022, rear track width: 1830mm
Vehicle weight: 12.49 tons
Rated load: 12.38t
Maximum total mass: 25 tons
Approach angle: 32 degrees
Departure angle: 41 degrees
Origin: Jinan, Shandong
remarks:
box information Container length: 5.17m
Width of cargo box (bucket): 2.3m
Height of cargo box (bucket): 1.2m
Container type: rear tipping and self dumping
engine Engine: CNHTC WD615.97C
Number of cylinders: 6
Fuel type: diesel
Displacement: 9.726L
Emission standard: National III/European III
Maximum horsepower: 300 horsepower
Maximum output power: 221KW
Torque: 1350N · m
Maximum torque speed: 1100-1600RPM
Rated speed: 2200RPM
Engine type: in-line, six cylinder, water-cooled, four stroke turbocharged and intercooled direct injection diesel engine, common rail national three emission
gearbox Gearbox: CNHTC HW15710C
Forward gear: 10
Number of reverse gears: 2
tire Number of tires: 10
Tyre specification: 12.00-20
oil tank Oil tank capacity: 400L
chassis Rear axle description: 16t wheel side reduction tandem drive axle with inter wheel and inter axle differential lock
Allowable load of rear axle: 16000KG
Rear axle speed ratio:
Number of springs: 9/12

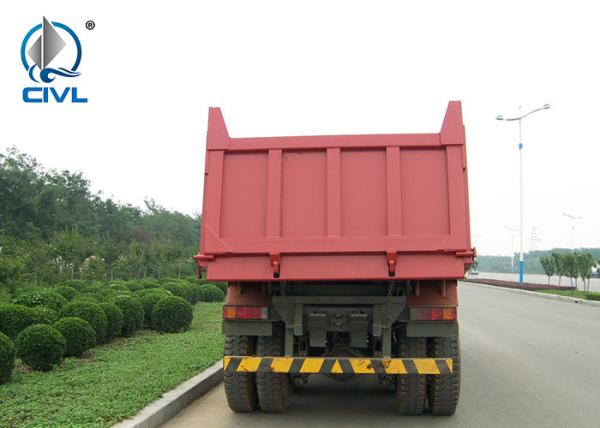

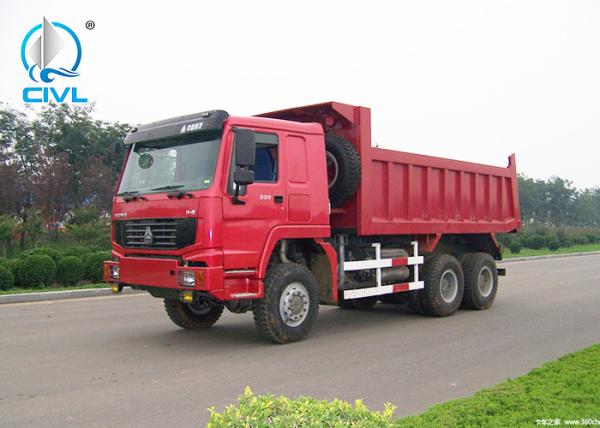

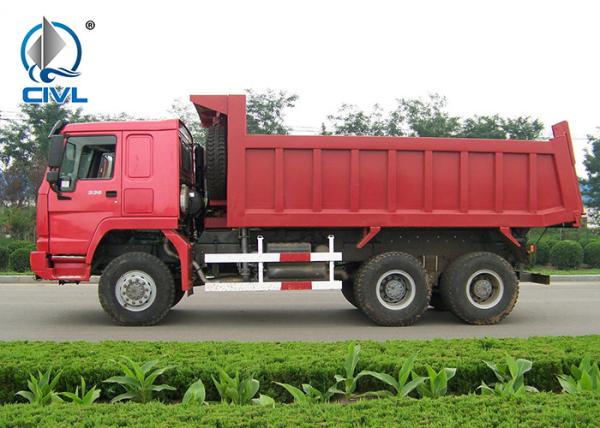

Cargo box Photos:
