Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
LC/TT etc, T/T, L/C
Supply Ability :
100 units per week
Delivery Time :
Within 35 days
Packaging Details :
Nude
engine :
weichai
material :
Q345
logo :
option
color :
red ,yellow ,white ,blue ...etc
Fuel type :
Diesel
Emission standard :
Euro 2,Euro 3
Transmission type :
Manual
Condition :
New
Drive wheel :
6x4
Description

Specifications

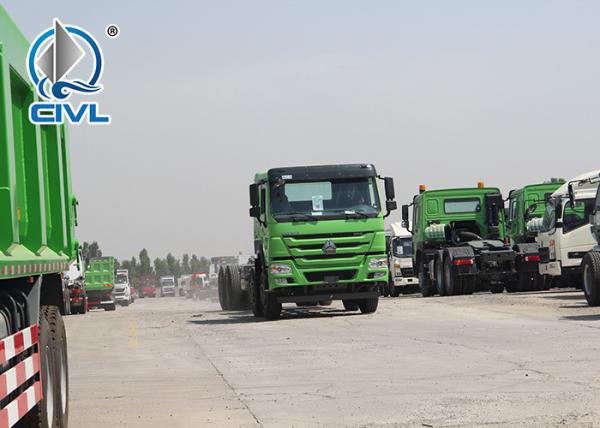

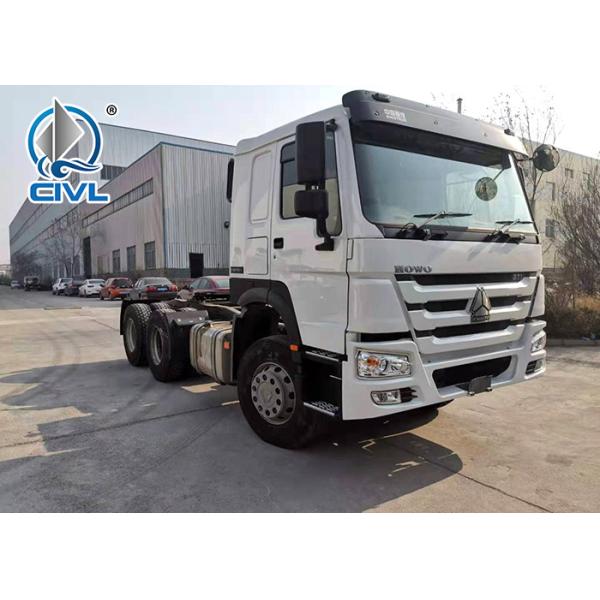

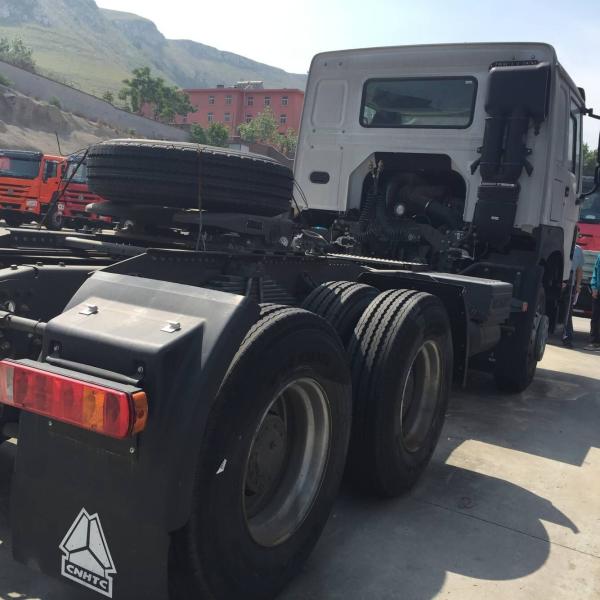

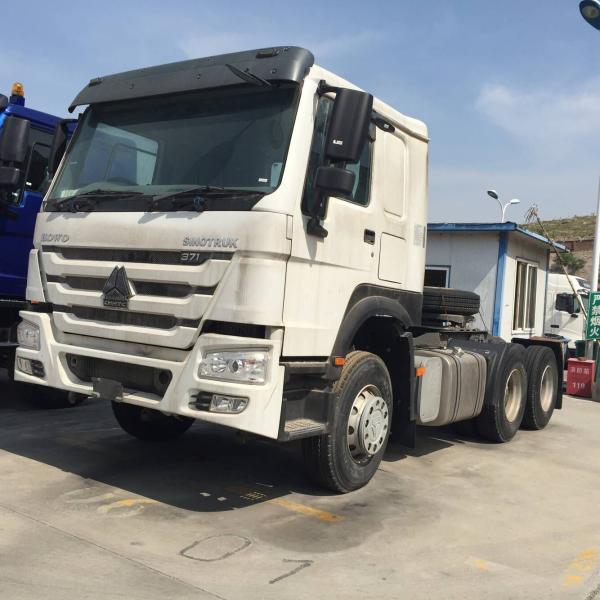

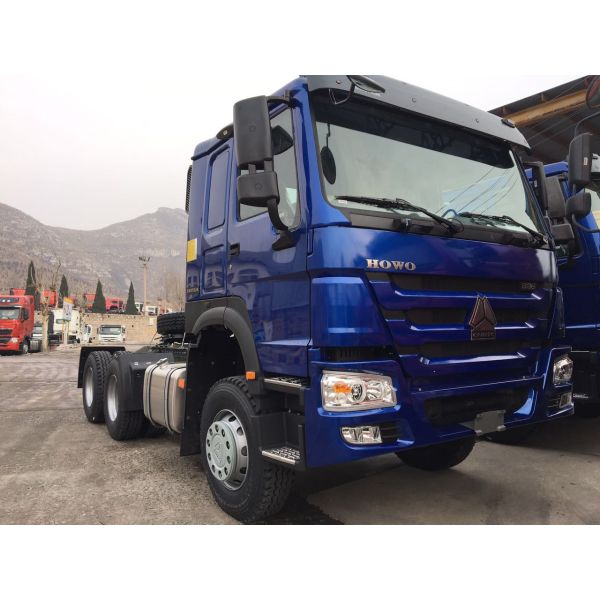

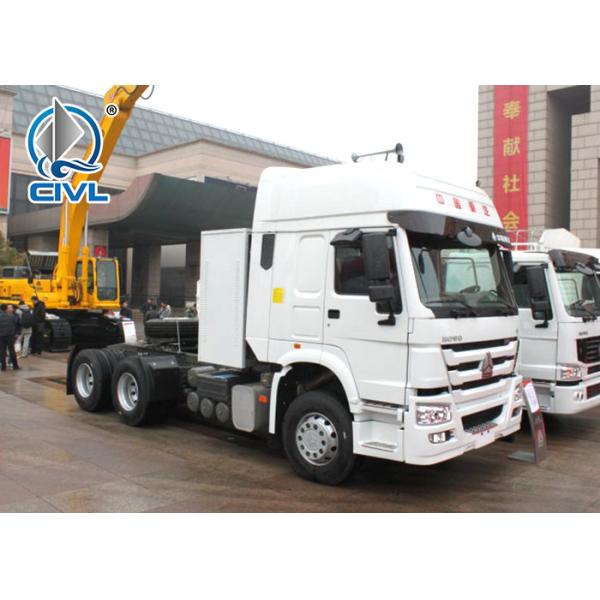

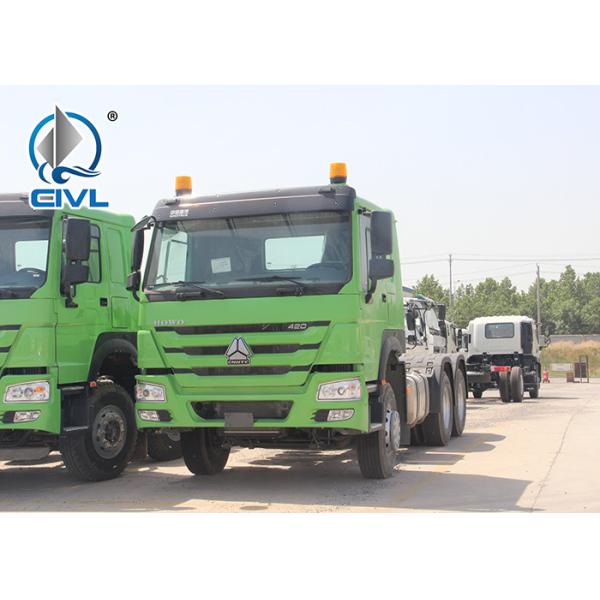

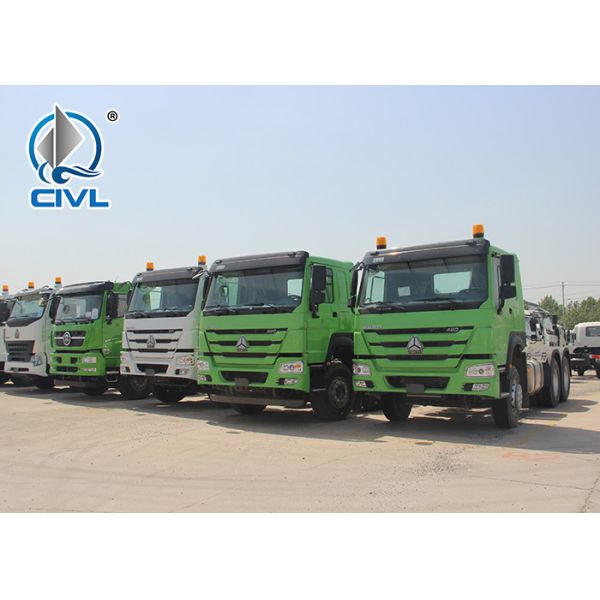

Sinotruk Howo Tractor Truck 6x4
Chassis Model ZZ4257S3241W (Left Hand Driving Type)
Production Year New truck.
Cabin HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn,air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.
Engine

Make: SINOTRUK

Diesel 4-stroke direct injection diesel engine

Engine model: WD615.47, Euro 2, 371 HP

6-cylinder in-line with water cooling, turbo-charging and intercooling

Displacement: 9.726 L
Transmission

HW19710, 10F & 2R.

Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering ZF power steering, modol ZF8098, hydraulic steering with power assitance
Front Axle

HF9, 1x9000 KGS

Steering with doubleT-cross section beam
Rear Axle

HC16, 2x16000 KGS

Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.

Ratio:4.42
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Chassis

Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members

Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer
Brake

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brake
Electrics

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres 315/80R22.5, tubeless tyres with one spare tyre
Fuel Tank 400L

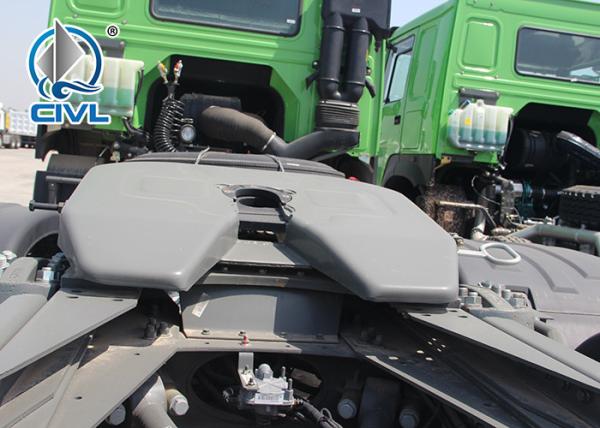

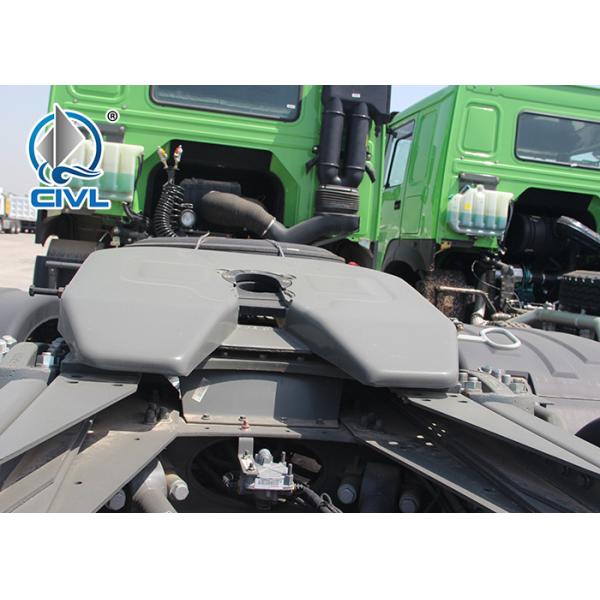

Fifth Wheel 90#
Overall Dimension 6900*2550*3200 mm

2017 NEW HOWO7 6X4 Tractor Head Tow Trucks with 10tires 371HP and Air pod 90# kingpin2017 NEW HOWO7 6X4 Tractor Head Tow Trucks with 10tires 371HP and Air pod 90# kingpin2017 NEW HOWO7 6X4 Tractor Head Tow Trucks with 10tires 371HP and Air pod 90# kingpin2017 NEW HOWO7 6X4 Tractor Head Tow Trucks with 10tires 371HP and Air pod 90# kingpin2017 NEW HOWO7 6X4 Tractor Head Tow Trucks with 10tires 371HP and Air pod 90# kingpin2017 NEW HOWO7 6X4 Tractor Head Tow Trucks with 10tires 371HP and Air pod 90# kingpin
Description:

1. Sinotruk tractor truck adopt many key technologies both from home and abroad, and it can

achieve the best design and be in good conditions.

2. Humanization.easy and convenient to drive, there are many key close to touch, and it save human labors and also can make the drive focus on the driving

3. Low oil consumption. Sinotruk adopt the engine that combine the MAN and technolgoy, it

has the perfect oil performance.

4. Sufficient stocked spare parts are available for you when you need to repair your tractor trucks.

Applications:

Towing of vehicle with a traction device, designed for towing all kinds of semi-trailers

Competitive Advantage

1. Professinal Sales Team of trucks. Our target is not selling trucks, we help customers choose the best suitable trucks.
2. Fast production period, and quick arrangement of delivery.
3. Professional team for spare parts and aftersale services.
