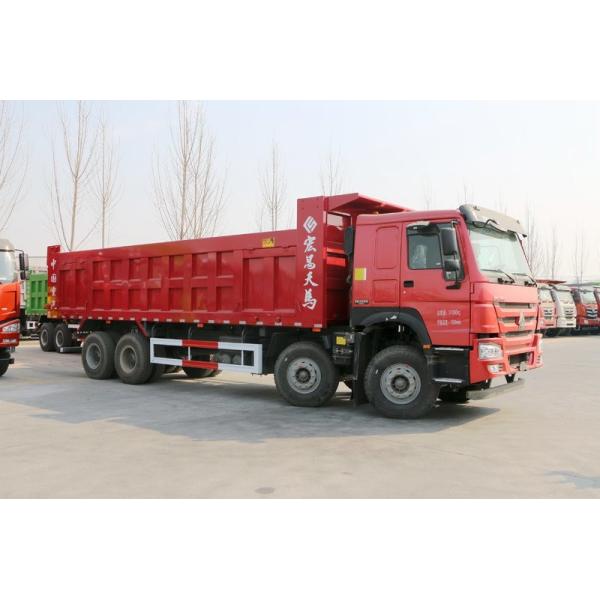

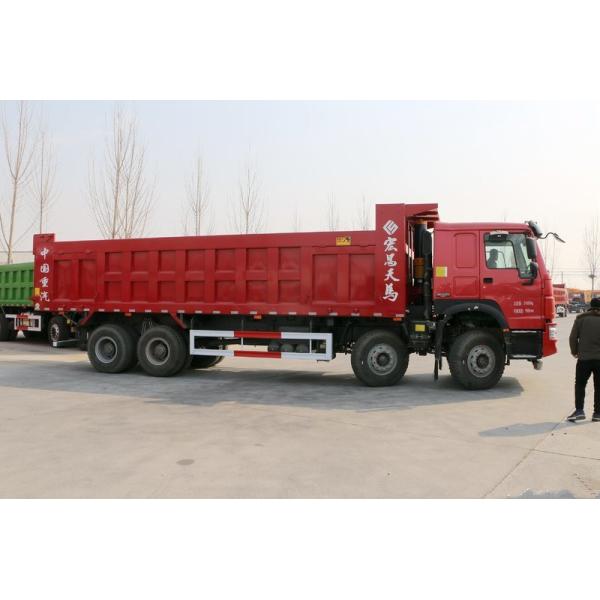

Sinotruck Howo 8x4 12-Wheel Dump Truck Capacity 40ton With red color
Sinotruck Howo 8x4 12-Wheel Dump Truck Capacity 40ton With red color
Sinotruck Howo 8x4 12-Wheel Dump Truck Capacity 40ton With red color
Sinotruck Howo 8x4 12-Wheel Dump Truck Capacity 40ton With red color
Sinotruck Howo 8x4 12-Wheel Dump Truck Capacity 40ton With red color
Sinotruck Howo 8x4 12-Wheel Dump Truck Capacity 40ton With red color
Sinotruck Howo 8x4 12-Wheel Dump Truck Capacity 40ton With red color
Sinotruck Howo 8x4 12-Wheel Dump Truck Capacity 40ton With red color
Sinotruck Howo 8x4 12-Wheel Dump Truck Capacity 40ton With red color
Sinotruck Howo 8x4 12-Wheel Dump Truck Capacity 40ton With red color
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
1000sets/ per year
Delivery Time :
Within 35 days
Packaging Details :
In nude
Brand :
Sinotruck
Condition :
New
Wheelbase (mm) :
1800+4200+1350
Max speed(km/h) :
75
Vehicle Curb weight(kg) :
15480
Gross mass (kg) :
31000
Description

Sinotruck howo 8x4 12-wheel dump truck capacity 40ton

Our company belong to SINOTRUK sales department and we have specialized in sinotruk trucks and spare parts for many years.The famous brand of sinotruk are HOWO series,HOWO A7 series,HOHAN series.We can supply tractor truck,dump truck,cargo truck,concrete mixer truck,fire tanker truck,water truck,fuel tank truck,bulk cement truck,sewage suction truck and also different types of semi trailers.

SINOTRUK is located in Jinan city and was founed in 1956.It once manufactured china’s first heavy duty truck.In 1960,sinotruk introduced the technology using on engine and axle from Austria.Later,sinotruk established cooperation with German man group and wobaco company.Today,sinotruk has developed into china’s largest heavy duty truck manufacturing base and made significant contributions to the development of china’s heavy duty truck industry and national economic growth.

If any interest ,welcome to enquire.

Sinotruck howo 8x4 12-wheel dump truck capacity 40ton

Product Description

SINOTRUK HOWO 371HP 8x4 dump truck
Truck Model ZZ3317N4267A
Steering type Left hand drive
Dimension of box (LxWxH) 7800x2300x1500 mm
Thickness of box (mm) Deck:8mm;side:6mm
Lifting Type of carriage Front lifting,Chinese cylinder 180
Overall dimensions (LxWxH) 10820*2496*3450 mm
Approach angle/Departure angle(°) 19/22
front/rear suspension (mm) 1500/1975
Wheelbase (mm) 1800+4200+1350
Max speed(km/h) 75
Vehicle Curb weight(kg) 15480
Gross mass (kg) 31000

Engine

 Model

SINOTRUK WD615.47,

4-stroke direct injection diesel engine,

6-cylinder in-line with water cooling,

turbo-charging and intercooling
Power, max(kw/rpm) 371 HP
Emission Euro2
Transmission/Gear box Model HW19710, 10 speeds forward ,2 reverse

Brake system

 Service brake Dual circuit compressed air brake
Parking brake spring energy, compressed air operating on rear wheels
Auxiliary brake Engine exhaust brake
Steering system Model 8118,hydraulic steering with power assistance
Front axle HF 9,drum type
Driving axle HC16,16ton double reduction
Tire 12.00R20,radial tyres,13pcs (one spare)
Clutch φ430 diaphragm spring clutch,hydraulic control air power assisted
Cab

HW76,one bed,with A/C.

VOLVO technology ,comfortable cab.

4-point support floating suspension and shock absorbers,

up/down and front/back adjustable steering wheel,

VDO instrument and control module,safety belt ,

air horn,outer sun visor.

Electric system

 Battery 2x12V/165Ah
Alternator 28V-1500 KW
Starter 7.5 Kw/24 V
Color red,white,yellow. Optional as per customer’s requests.

Sinotruck Howo 8x4 12-Wheel Dump Truck Capacity 40ton With red colorSinotruck Howo 8x4 12-Wheel Dump Truck Capacity 40ton With red color

Packaging & Shipping

packaging for dump truck:nude.polish with wax before shipping

shipping for dump truck:bulk ship or RORO ship
