-SWZ Heavy Duty Dump Truck WD615 Diesel Engine 18 CBM Yellow Colur Tipper Truck Loading Capacity 20 Tons
-SWZ Heavy Duty Dump Truck WD615 Diesel Engine 18 CBM Yellow Colur Tipper Truck Loading Capacity 20 Tons
-SWZ Heavy Duty Dump Truck WD615 Diesel Engine 18 CBM Yellow Colur Tipper Truck Loading Capacity 20 Tons
-SWZ Heavy Duty Dump Truck WD615 Diesel Engine 18 CBM Yellow Colur Tipper Truck Loading Capacity 20 Tons
-SWZ Heavy Duty Dump Truck WD615 Diesel Engine 18 CBM Yellow Colur Tipper Truck Loading Capacity 20 Tons
-SWZ Heavy Duty Dump Truck WD615 Diesel Engine 18 CBM Yellow Colur Tipper Truck Loading Capacity 20 Tons
-SWZ Heavy Duty Dump Truck WD615 Diesel Engine 18 CBM Yellow Colur Tipper Truck Loading Capacity 20 Tons
-SWZ Heavy Duty Dump Truck WD615 Diesel Engine 18 CBM Yellow Colur Tipper Truck Loading Capacity 20 Tons
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Delivery Time :
Within 35 days
Packaging Details :
In nude
Engine :
WD615
Horsepower :
251 - 350hp
Transmission Type :
Manual
Fuel Type :
Diesel
Emission Standard :
Euro 2
Description

Sinotruk Golden Prince 6x4 Dump Truck/Tipper Truck

Product Description

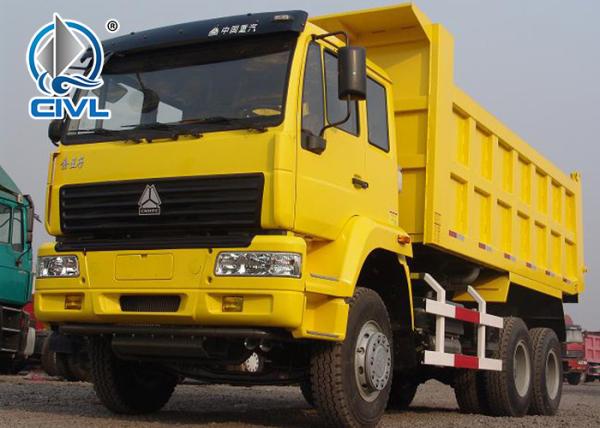

SINOTRUK Golden Prince 6×4 dump truck
Model ZZ3251M3441W
Engine Maker: SINOTRUK tech.
Diesel 4 stroke direct injection diesel engine,6 cylinder in-line with water cooling,turbo-charging & intercooling

Engine model: WD615.87
EURO II emission standard
Maximum output: 290hp
Number of cylinder:6
Displacement: 9.726L
Clutch Single-plate dry coil-spring clutch,diameter 420mm,hydraulically operating with air assistance
Transmission HW15710 transmission. 10 forward & 2 reverse.
Propeller Shaft Double universal joint properller shaft with gear-shaped coupling flange
Front Axle HF7, 7T loading capacity drum brake
Rear Axle HC16 16T double reduction drive axle
Chassis Frame: U-profile parallel ladder with U-profile riveted cross members
From suspension:9 semi-elliptic leaf springs and stabilizer
Spare wheel carrier: with one spare wheel
Fuel tank: with one 300L lockable fuel tanks
Steering ZF,power steering,hydraulic steering with power assistance
Wheel & Types Rims:8.0-20
Tyres:11.00-20 bias tube tire
Optional: 12R22.5/12.00R20//315/80R22.5
Radial tire is optional
Driver's cab High deck cabin, single sleeper without A/C (A/C is optional)
Electrics Operating voltage: 24V,negative grounded
Dimensions in mm Wheel base : 3400+1350
Overall size: 7840×2500×3450
Weight in kg Kerb mass: 11500
Loading capacity: 25T
Performance Maximum driving speed(km/h) 90
Body

Inner size (mm): 5200x2300x1500
Capacity: 18 CBM
Thickness of steel (mm): bottom 8, side 6
Tipping system: Middle tipping F tipping type

-SWZ Heavy Duty Dump Truck WD615 Diesel Engine 18 CBM Yellow Colur Tipper Truck Loading Capacity 20 Tons-SWZ Heavy Duty Dump Truck WD615 Diesel Engine 18 CBM Yellow Colur Tipper Truck Loading Capacity 20 Tons-SWZ Heavy Duty Dump Truck WD615 Diesel Engine 18 CBM Yellow Colur Tipper Truck Loading Capacity 20 Tons
