Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
500 sets per month
Delivery Time :
Within 35 days
Packaging Details :
In nude
Capacity (Load) :
25T
Condition :
New
Emission Standard :
Euro 2
Engine Capacity :
> 8L
Horsepower :
336HP
Description

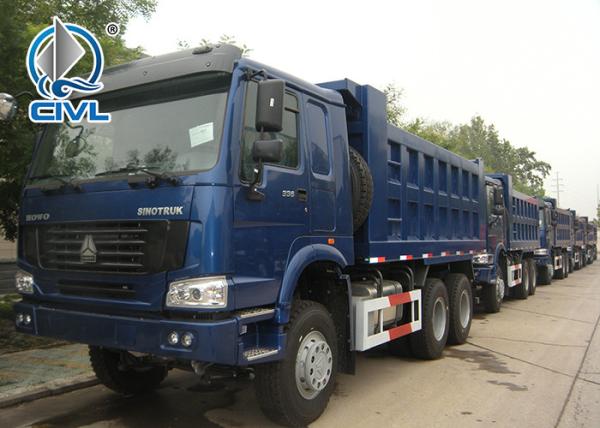

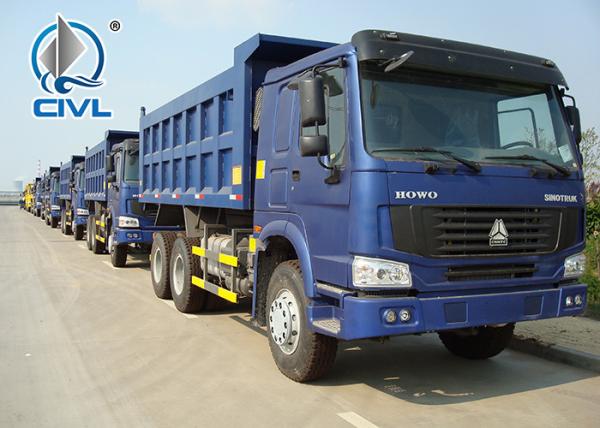

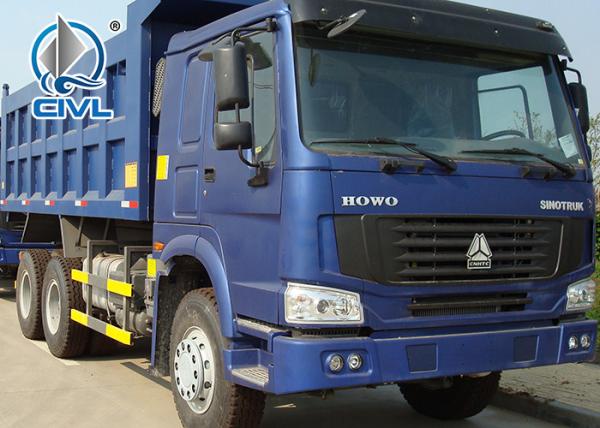

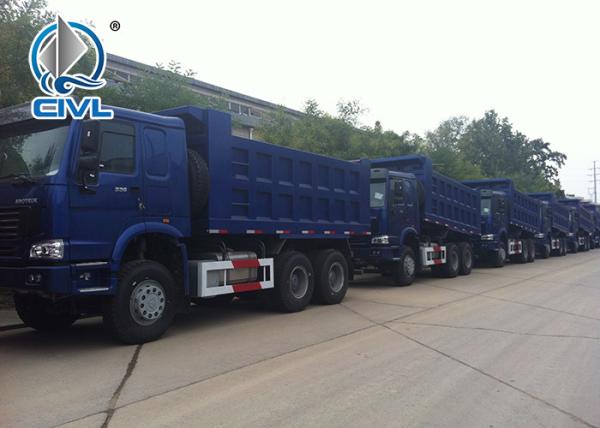

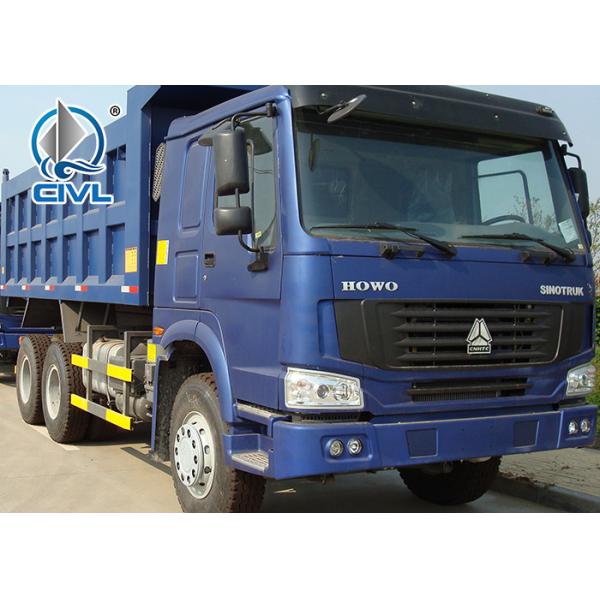

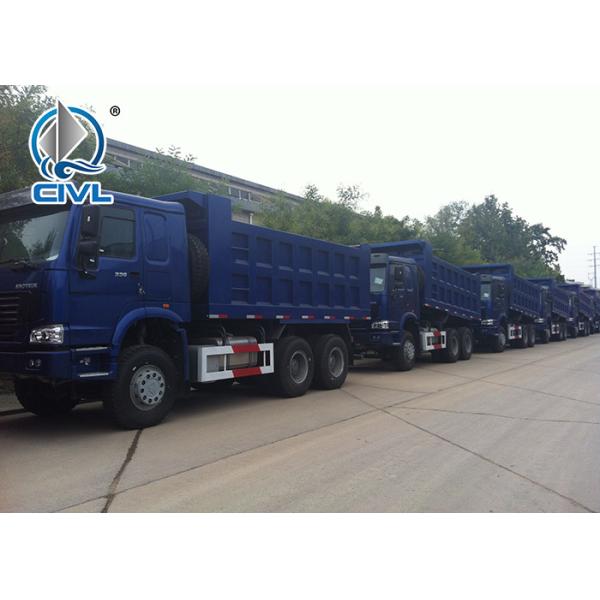

HoWo 6x4 16.14m3 Dump Truck Tipper Truck 336Hp,left hand drive

Product Description

A dump truck is a truck used for transporting loose material for construction, such as sand, gravel, or demolition waste . A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic rams to lift the front, allowing the material in the bed to be dumped on the ground behind the truck at the site of delivery. It is also known as a tipper, tipper lorry, tipper truck.

Specification:

Truck Model ZZ3257N3647A (LHD)
Truck Brand SINOTRUK-HOWO
Dimension(Lx W xH)(unloaded)(mm) 8500X2500X3450
Cargo body size (L*W*H, mm(mm) 5200X2300X1350
Cargo body thickness(mm) bottom:8mm, side:6mm,
Lift type of Carriage Ventral lifting T type

Approaching angle/Departure angle(°)

19/26
Overhang(front/rear) (mm) 1500/1670
Wheel base (mm) 3625+1350
Max speed(km/h) 75
Curb weight(kg) 124500
Loading Weight(kg) 250000
Fuel tanker capacity (L) 300L with locking fuel cap
Fuel consumption(L/100km) 20-40 L/100 km
Clutch Single-plate dry clutch Φ430mm

Engine Model

( technology, made in China)

Model WD615.69,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and intercooling
Horse Power, max(kw/rpm) 336HP, 2200
Emission Standard EUROII
Transmission Model HW 19710,10 forwards and 2 reverse

Brake system

Service brake Dual circuit compressed air brake
Parking brake spring energy, compressed air operating on rear wheels
Auxiliary brake

Engine exhaust brake

Steering system

Model ZW8118 hydraulic steering with power assistance
Front axle

HF9 , Steering with double T-cross section beam

Loading capacity:9000KG

Rear axle HC16, Casting axle housing, central double reduction with differential locks between axles and wheels
Color Red
Tire 12.00R20 tubelee tyre 11 pieces

Electrical system

Operating voltage 24V,negative grounded
Starter 24V,7.35KW
Alternator 28V,1500W
Batteries 2*12V.165Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light.
Cab HW76 cabin, with one sleeper.

new Howo 6x4 18m3 Heavy Duty Dump Truck Tipper 336hp/371hp , Left Hand Drive Blue Color  Heavy Duty Dumpernew Howo 6x4 18m3 Heavy Duty Dump Truck Tipper 336hp/371hp , Left Hand Drive Blue Color  Heavy Duty Dumper

Our Services

1: Our company promise a one-year warranty period, during this period, under normal use if there is damage to the accessories, we will provide our customers new accessories with free.

2: Operational problems, technical configuration issues, etc., We will promptly provide feasible solutions for our customers. We are investing in the construction of a number of foreign service department, will serve the global customers better.

3: We are serious about after-sales service.

Packaging & Shipping

new Howo 6x4 18m3 Heavy Duty Dump Truck Tipper 336hp/371hp , Left Hand Drive Blue Color  Heavy Duty Dumper

Other products:

Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( 54873020, 54798871, 54798867, 54633157, 54622108, 54621778, 54621524, water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
