Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
1000 set s/per month
Delivery Time :
Within 35 days
Packaging Details :
In nude, marine anti-corrosion packaging
Drive Wheel :
6x4
Horsepower :
251 - 350hp
Transmission Type :
Manual
Fuel Type :
Diesel
Engine Capacity :
8L
Name :
Heavy Duty Dump Truck
Engine capacity :
> 8L
Dimensions (l x w x h) (mm) :
8450*2500*3310
Condition :
New
Gross vehicle weight :
25000
Capacity (load) :
31 - 40t
Emission standard :
Euro 2,Euro 3
Product name :
SINOTRUK heavy duty 336HP 6x4 drive wheel HOWO dump truck
Transmission :
HW19710 Manual 10forward +2 Reverse
Color :
Customer's Request
Engine :
336hp
Driving type :
LHD,RHD is optional
Description
Long Life Heavy Duty Dump Truck Philippines Hydraulically Assisted Steering Gear
Packaging & Delivery

Packaging Details

nude

Port

Tianjin,Qingdao

Lead Time :

Quantity(Units) 1 - 1 >1
Est. Time(days) 45 To be negotiated

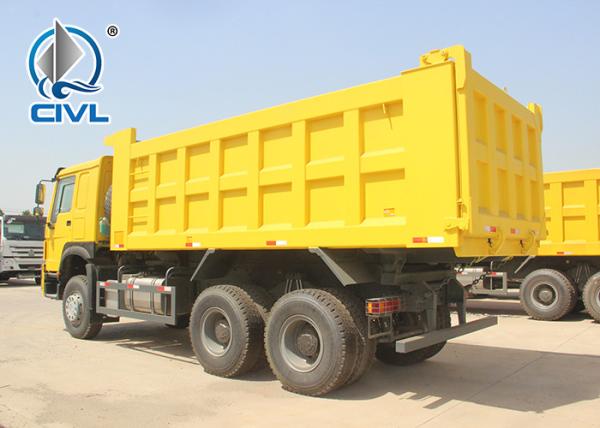

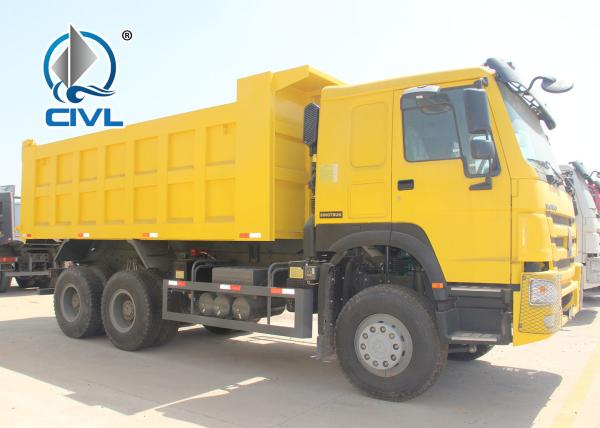

Vehicle series T5G 6x4 Dump Truck
Cab T5G-M
Engine Model MC07
Power(Ps/rpm) Euro 3/4/5 (280-336)/2300
Maximum torque(Nm/rpm) Euro 3/4/5 (1100-1250)/1200-1800
Displacement(L) 6.87
Transmission HW13710 10-speed manual control gearbox
Ratio:1 14.08,2 10.47,3 7.82,4 5.82,5 4.35,6 3.24,7 2.41,8 1.80,9 1.34,10 1.00,R1 12.67,R2 2.91
Optional:ZF9T1280 OD 9-speed manual control gearbox with synchronizer Ratio:1 12.56,2 7.85,3 5.02,4 3.43,5 2.91,6 2.21,7 1.46,8 1.00,9 0.85,R1 11.34
Clutch Φ430 diaphragm spring clutch,Single plate
Front axle 153, forging I-beam front axle,Drum brake/HF7, forging I-beam front axle,Drum brake
Rear axle 457, central single reduction,Drum brake i=5.833, optionali=5.286/HC16, central + hub double reduction,Drum brake i=5.73
Steering gear D39,hydraulically assisted
Suspension Steer Axle Semi-elliptical leaf springs with shock absorbers and stabilizer
Drive Axle Bogie leaf springs with integrated balance shaft and stabilizer
Braking system Type Air brake system
Service brake Dual-circuit air brake
Parking Brake Spring energy, compressed air operating on rear wheels
Auxiliary brake Exhaust valve braking(EVB)
Electric system Type SINOTRUK CAN bus system with VDO instrument
Voltage 24V
Batteries 2 x 12V,165 Ah
Alternator Power 28V/80A
Starter Power 5 KW
Optiona 180AH batteries 12V electric socket
Wheels & Tyres Tyres 11.00-20
Wheels 8.00-20
Fuel Tank Capacity 300 Liter
Type Rectangular, lockable
Frame Material High tensile steel
Section 3000 x 80 x (8+5) mm
Frame width Front 965mm / rear 865 mm
Weights (kg) Complete vehicle kerb weight 12130/12180
Chassis kerb weight 8180/8210
Gross Vehicle Weight 30000
Front axle loading capacity (153/HF7) 5500/7000
Rear axle loading capacity (457/HC16) 25000/32000
Vehicle Dimensions (mm) Overall length x Overall width x Overall height without air spoiler 8170/8430 x 2496 x 3450
Wheelbase 3600/3800
Front overhang/Rear overhang 1430/850
Wheel track of front axle 2022
Wheel track of rear axle 1860
Performance Maximum speed(km/h) 74
Maximum gradeability(%) 35
Minimum turning diameter(m) 17000
Comprehensive fuel consumption(L/100km) 32 ~ 37
