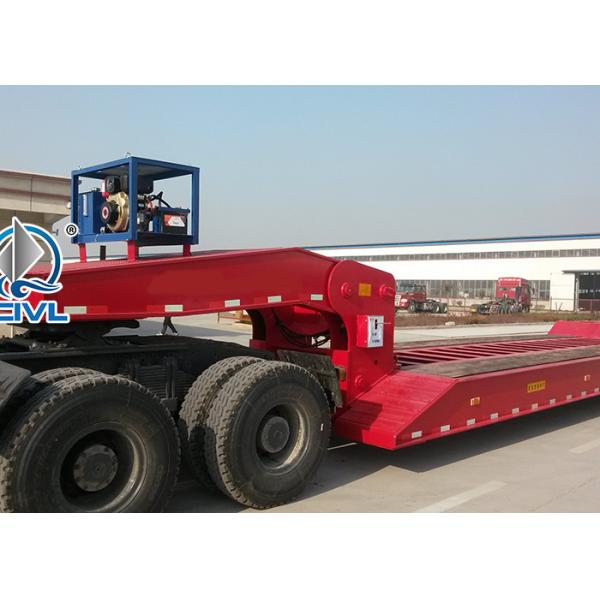

3 Line 6 Axles Fuwa Axles Low Bed 100T Semi Trailer Trucks For Equipment Transportation
3 Line 6 Axles Fuwa Axles Low Bed 100T Semi Trailer Trucks For Equipment Transportation
3 Line 6 Axles Fuwa Axles Low Bed 100T Semi Trailer Trucks For Equipment Transportation
3 Line 6 Axles Fuwa Axles Low Bed 100T Semi Trailer Trucks For Equipment Transportation
3 Line 6 Axles Fuwa Axles Low Bed 100T Semi Trailer Trucks For Equipment Transportation
3 Line 6 Axles Fuwa Axles Low Bed 100T Semi Trailer Trucks For Equipment Transportation
3 Line 6 Axles Fuwa Axles Low Bed 100T Semi Trailer Trucks For Equipment Transportation
3 Line 6 Axles Fuwa Axles Low Bed 100T Semi Trailer Trucks For Equipment Transportation
3 Line 6 Axles Fuwa Axles Low Bed 100T Semi Trailer Trucks For Equipment Transportation
3 Line 6 Axles Fuwa Axles Low Bed 100T Semi Trailer Trucks For Equipment Transportation
3 Line 6 Axles Fuwa Axles Low Bed 100T Semi Trailer Trucks For Equipment Transportation
3 Line 6 Axles Fuwa Axles Low Bed 100T Semi Trailer Trucks For Equipment Transportation
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
LC/TT etc
Supply Ability :
100 units per week
Delivery Time :
Within 35 days
Packaging Details :
Nude
color :
optional
axle :
fuwa
brand :
sinotruk
Suspension type :
Common mechanical
Tool box :
2 set standard tool box
Loading Capacity :
100T
Description

3 Line 6 Axles low bed semi trailer for equipment transportation

Description:

Made in China, assembly in local, our products include: Car Carrier Trailer,Flatbed Trailer,Low Bed Trailer,Dump Trailer,Canvas Trailer,Bulk Cement Trailer,Cement Mixer Trailer,Tank Trailer,Vacuum Tank Trailer, and more. Over these ten years, our semi-trailer projects have proven successful in regions like UAE and Saudi Arabia. All the main part of the trailer will be prefabricated in our manufacturing base in China. After shipment, our qualified and experienced assembly team will go to oversea customers' workshop for assembly. Local workers will also be trained during the flatbed trailer assembly.

As a mature and famed manufacturer of semi-trailer in China. We are specialized in
this field for many years.


Specification

3 line 6axle Low bed Semi Trailer
Assembly Name Composition Specifications
ChassisMain beam

Q345Steel;The height of the beam is 500mm;
Upper plate;18mm;Middle plate is 12mm;Down plate is 20mm.

Cross beam14# channel steel
Side beam25# channel steel
King Pin2”(50mm)or 3.5”(90mm)traction pin
Dimensions(L*W*H)13000*3000*1550mm
Floor 4mm diamond steel plate
Fence 1.5m steel plate 600mm height, fence 1000mm+20mm top

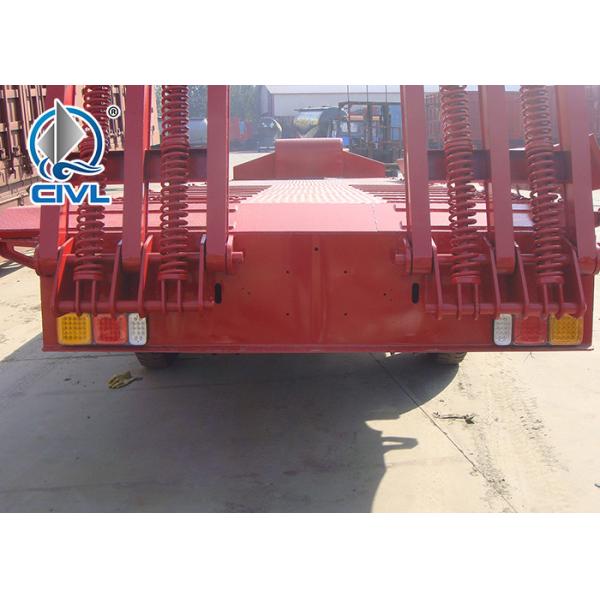

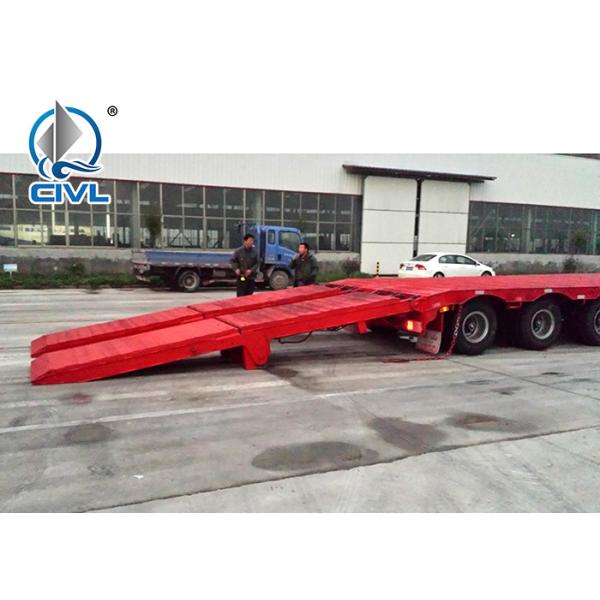

Ladder 60T Heavy duty Mechanical ladder(optional hydraulic ladder
SuspensionSuspension typeCommon mechanical
Steel Spring 10/10/10
Running systemAxle6 Axle ,Fuwa Brand
Wheel Rim9.0-22.5 steel wheel rim
Tire Spe:12R22.5; Number of Tire:24 pieces
Brake systemBrake Chamber12 big chamber
Brake ValveKTL Brand/WABCO
Brake systemDual Line Brake system
Other Tool box2 set standard tool box
LightTail lamp with turn signal ,brake light & reflector, side lamp etc.
Painting1 coat of anticorrosive prime, twice coats of final paint.
Spare Tire Carriers2 pieces
Leading gear28T Manual operating, Heavy duty landing gear
Weight Tare Weight12000Kg
Loading Capacity100T
Axle weight load13T

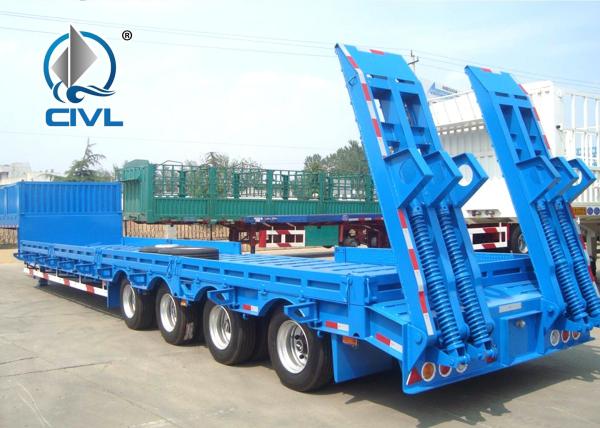

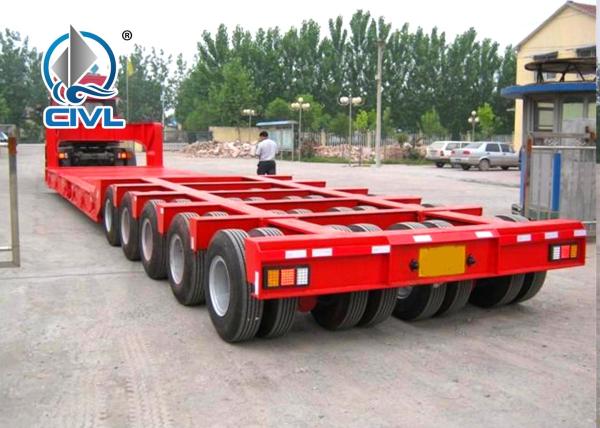

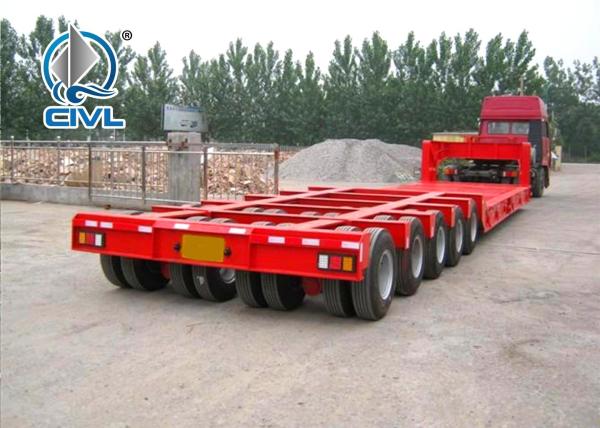

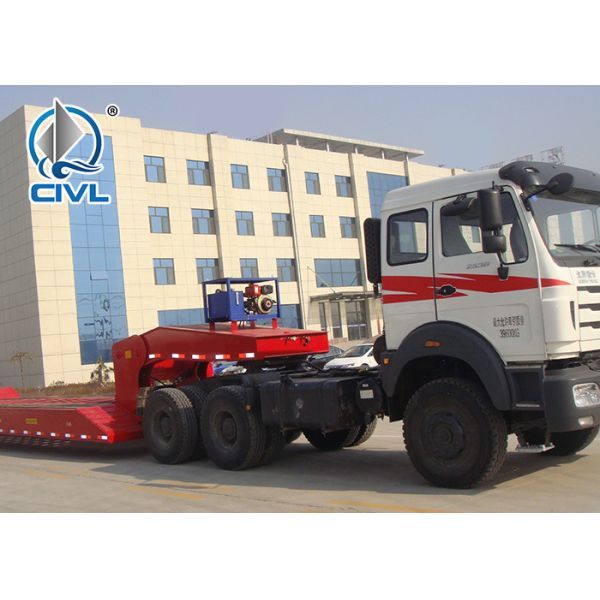

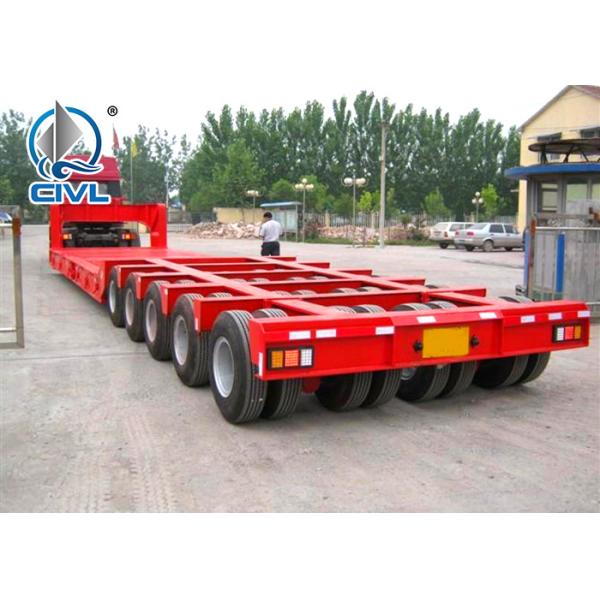

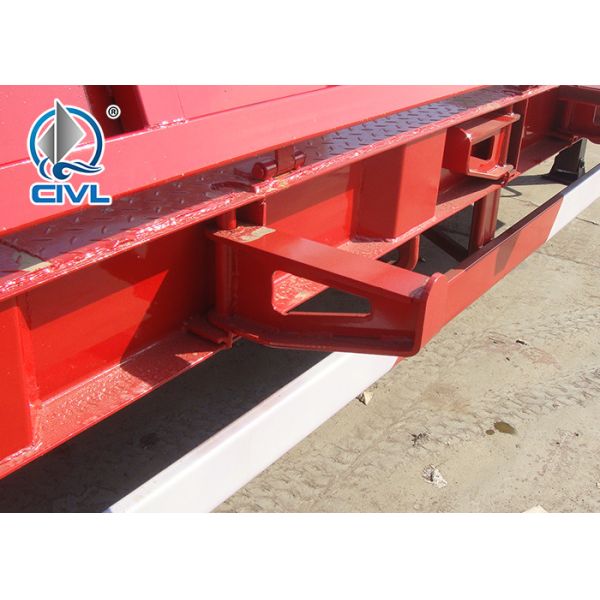

Details photo:

3 Line 6 Axles Fuwa Axles Low Bed 100T Semi Trailer Trucks For Equipment Transportation3 Line 6 Axles Fuwa Axles Low Bed 100T Semi Trailer Trucks For Equipment Transportation3 Line 6 Axles Fuwa Axles Low Bed 100T Semi Trailer Trucks For Equipment Transportation3 Line 6 Axles Fuwa Axles Low Bed 100T Semi Trailer Trucks For Equipment Transportation3 Line 6 Axles Fuwa Axles Low Bed 100T Semi Trailer Trucks For Equipment Transportation3 Line 6 Axles Fuwa Axles Low Bed 100T Semi Trailer Trucks For Equipment Transportation
International Market:

Ethiopia/Sudan/Algeria/Djibouti/Kenya/Tanzania/Uganda/Rwanda/Seychelles
/Mauritania/Senegal/Mali/Gambia/Sierra Leone/Liberia/Ivory Coast/Ghana/Benin/Ghana/Niger
/Nigeria/Chad/Cameroon/Guinea/Gabon/Congo/Zambia/Zimbabwe/Malawi/Angola/Mozambigue
/Botswana/Namibia/Swaziland/Lesotho/Africa


Pre-service:

  1. Inquiry and Consulting support.
  2. Sample testing support.
  3. View our factory.
  4. Design various solutions as buyer's requirement.


After-sale service:

  1. Training how to use and maintain the truck.
  2. Our engineers supply the support of technology.
  3. 12 months warranty for 3 key spare parts(Engine,Transmission,Axle)
  4. Parts supply on time.
  5. 24 hours service and technology support.
