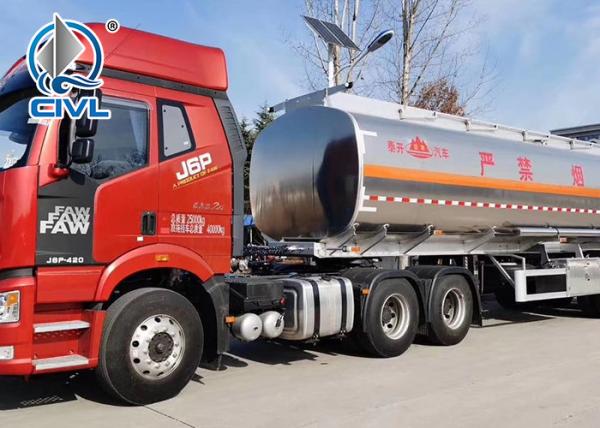

Round Or Square Shape Chemical Liquid Tanker Trailer Three Axles 30,000L- 33,000L
Round Or Square Shape Chemical Liquid Tanker Trailer Three Axles 30,000L- 33,000L
Round Or Square Shape Chemical Liquid Tanker Trailer Three Axles 30,000L- 33,000L
Round Or Square Shape Chemical Liquid Tanker Trailer Three Axles 30,000L- 33,000L
Round Or Square Shape Chemical Liquid Tanker Trailer Three Axles 30,000L- 33,000L
Round Or Square Shape Chemical Liquid Tanker Trailer Three Axles 30,000L- 33,000L
Round Or Square Shape Chemical Liquid Tanker Trailer Three Axles 30,000L- 33,000L
Round Or Square Shape Chemical Liquid Tanker Trailer Three Axles 30,000L- 33,000L
Specifications
Brand Name :
SINOTRUK
Model Number :
30000L tank truck
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
USD 1- USD 38900/unit
Payment Terms :
L/C, T/T
Supply Ability :
1000 units per month
Delivery Time :
25-45 work days
Packaging Details :
Nude
Shape :
Round or Square
Dimension :
12500mm*2500mm*1550mm
Bottom Valve :
Aluminum API Pneumatic Bottom Valve
axle :
three
axle brand :
FUWA BPW
Landing gear :
28T
Description

Three axles 30,000L- 33,000L chemical liquid tanker trailer for sale / liquid tanker trailer truck

1. Welding by one side in shape by two sides: Clean and beautiful seam on both sides, welding joint are best quality without splashing.

2. Working scene of the tanker curling machinery.

3. Tank boday automatic welding equipment.

4. Painting: Rust removing-Sand blasting-two layer of primer painting-two layer of top coat painting-Roast painting.

5.All the parts are standard for fuel tanks trailer, you can get it from your location,also easy maintain and durable service life.

Specifications:

Tank Body

Shape Round or Square
Dimension 12500mm*2500mm*1550mm (The exact size depends on the final design)
Tare Wight About 8000kg-128000kg
Total Volume(m³) 25-60m3
Tanker Body Material 5mm or 6mm/Q235 carton steel
End Plate 5mm or 6mm/Q235 carton steel
Manhole Cover Carbon steel or aluminum alloy API manhole cover, 500mm(diameter)
Bottom Valve Aluminum API Pneumatic Bottom Valve
Discharge Valve Diameter is 3 or 4 inch
Compartments 2 compartmets, 22500/22500L
Discharging Pipe 4" rubber hose, 2pcs, 6m/each
Cat Walk

With (Common model or Special design)
Chassis
Main Beams Welded design or Special design I beam, connected by bolts and nutsq345 carton steel material
Axle 2 or 3 axles, BPW/FUWAbrand
Landing Gear JOST (D200T) or China brand 28T
King Pin JOST 2.00 or 3.5 inch bolt-in kingpin
Suspension Mechanical suspension/Germany or America type/air suspension
Leaf Spring 90(w)mm*13(Thickness)mm*10layers or 10mm*12mm*12 without
Pneumatic Braking System WABCO RE 6 raly valve; Spring brake chamber (TKL brand); one piece of 45L air tank
Rim 9.00-22.5/8.00-20/8.5-20 China Brand
Tire 12.00R22.5/11.00R20/12.00R20 Brand can be Optional
ABS Optional
Painting Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and layers of top coast.
Accessories One standard tool box
Shipping Terms By bulk cargo, RORO, or 40HQ Container
Tank Body
Shape Round or Square
Dimension 12500mm*2500mm*1550mm (The exact size depends on the final design)
Tare Wight About 8000kg-128000kg
Total Volume(m³) 25-60m3
Tanker Body Material 5mm or 6mm/Q235 carton steel
End Plate 5mm or 6mm/Q235 carton steel
Manhole Cover Carbon steel or aluminum alloy API manhole cover, 500mm(diameter)
Bottom Valve Aluminum API Pneumatic Bottom Valve
Discharge Valve Diameter is 3 or 4 inch
Compartments 2 compartmets, 22500/22500L
Discharging Pipe 4" rubber hose, 2pcs, 6m/each
Cat Walk With (Common model or Special design)
Chassis
Main Beams Welded design or Special design I beam, connected by bolts and nutsq345 carton steel material
Axle 2 or 3 axles, BPW/FUWAbrand
Landing Gear JOST (D200T) or China brand 28T
King Pin JOST 2.00 or 3.5 inch bolt-in kingpin
Suspension Mechanical suspension/Germany or America type/air suspension
Leaf Spring 90(w)mm*13(Thickness)mm*10layers or 10mm*12mm*12 without
Pneumatic Braking System WABCO RE 6 raly valve; Spring brake chamber (TKL brand); one piece of 45L air tank
Rim 9.00-22.5/8.00-20/8.5-20 China Brand
Tire 12.00R22.5/11.00R20/12.00R20 Brand can be Optional
ABS Optional
Painting Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and layers of top coast.
Accessories One standard tool box
Shipping Terms By bulk cargo, RORO, or 40HQ Container

Round Or Square Shape Chemical Liquid Tanker Trailer Three Axles 30,000L- 33,000LRound Or Square Shape Chemical Liquid Tanker Trailer Three Axles 30,000L- 33,000L

Service:

Pre-service:

  1. Inquiry and Consulting support.
  2. Sample testing support.
  3. View our factory.
  4. Design various solutions as buyer's requirement.


After-sale service:

  1. Training how to use and maintain the truck.
  2. Our engineers supply the support of technology.
  3. 12 months warranty for 3 key spare parts(Engine,Transmission,Axle)
  4. Parts supply on time.
  5. 24 hours service and technology support.
