Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
3000units/month
Delivery Time :
Within 35 days
Packaging Details :
nude
Material :
Q235
axle :
3pcs
leg :
Jost
color :
option
warranty :
1 year
Description
Hydraulic Flatbed International Semi Truck Trailer 80 Tons 17m Strong Loading Construction Machines
Detailed Product Description
Product Name: Low-bed Semi Trailer Truck Model: 3 Axles 50-80Tons
Fifth Wheel: #50, #90 Loading Capacity: 50-80tons
Dimension Of Flat: 13000*3000mm Axles: 3X16 Tons
Material: Carbon Steel Or Mn Steel Landing Gear: 28T JOST

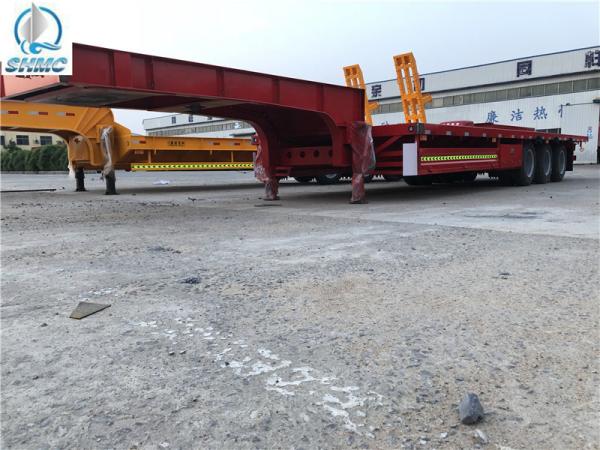

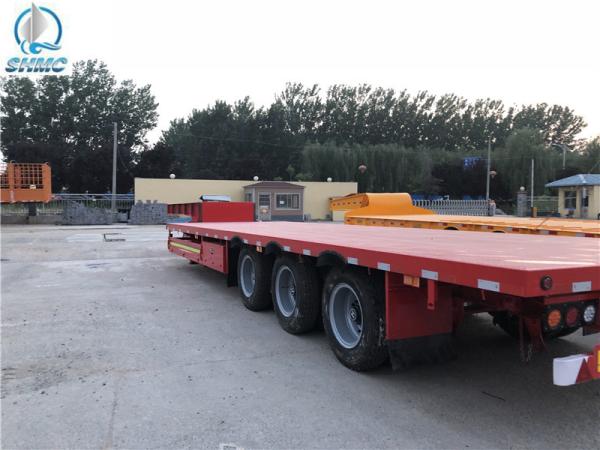

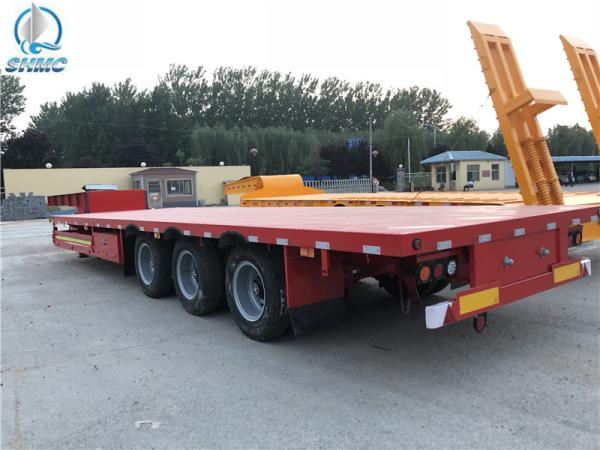

Low-bed Semi Trailer Truck 3 Axles 80Tons 17m for Loading construction machines

Description:

Low-bed Semi Trailer Truck 3 Axles 80Tons 17m for Loading construction machine

Our company's Low bed semi trailer which exported to so many countries, such as Asia countries, Africa countries, South America countries and so on.

Which is popular used in Mining industry, Construction business and so on.

Specification:

Low-bed Semi Trailer Truck 3 Axles 80Tons 17m for Loading construction machines
Model 3 Axles 60Tons
Axle FUWA brand, 16ton, 2 Sets
Main beam

Beam height: 500mm

Upper plate: 10mm

Double Middle plate: 6 mm

Down plate: 12mm
Dimension of Flat 13000*3000*6mm
Material Carbon steel or Mn steel
Gross vehicle weight 75000kgs
King pin #90
Support leg JOST Standard 28T
Suspension Normal suspension
Thickness leaf spring 10/10/10
Tire/Rim 1200R20, 13pcs, 8.5, 12 pcs
Brake Chamber Standard 6 pcs
Spare wheel carrier 2 pcs
Tool box 1 pcs
Electrical System Chinese standard 24C lighting system
Side Maker Lamp LED lamp
Painting Polyurethane Paint
Overall dimension 16000×2500×3880(mm)
Color White, red, green, golden and so on.


Applications:

Low bed semi trailer for a variety of mechanical equipment, large objects, highway construction equipment, large tanks, power station equipment for various steel transportation.

Competitive Advantage:

1) Our company produces low flat semitrailer divided into flat, concave beam and tire exposed structure, beam adopts flat type or goose neck. The frame is ladder type, the beam cross-section is

I-shaped, has high anti breaking strength and bearing capacity.

2) The main plane of the frame is low, which ensures the smooth transportation, and is suitable for carrying all kinds of engineering machinery, large equipment and steel.

3)Using three axis balance, double axis balance or rigid suspension, the mass balance block is arranged

between the front and rear leaf springs.

4) the key parts adopt the world's top technology products

5)based on strong technical support and top level technology make the trucks with high quality and more

reliable
