40 Feets Double - Function Flatbed Trailer Tansporting Containers semi truck flatbed trailer
40 Feets Double - Function Flatbed Trailer Tansporting Containers semi truck flatbed trailer
40 Feets Double - Function Flatbed Trailer Tansporting Containers semi truck flatbed trailer
40 Feets Double - Function Flatbed Trailer Tansporting Containers semi truck flatbed trailer
40 Feets Double - Function Flatbed Trailer Tansporting Containers semi truck flatbed trailer
40 Feets Double - Function Flatbed Trailer Tansporting Containers semi truck flatbed trailer
40 Feets Double - Function Flatbed Trailer Tansporting Containers semi truck flatbed trailer
40 Feets Double - Function Flatbed Trailer Tansporting Containers semi truck flatbed trailer
Specifications
Brand Name :
CIVL
Certification :
CCC/ISO9001
Place of Origin :
China
MOQ :
1 unit
Supply Ability :
1000 units/ month
Delivery Time :
Within 30 days
Packaging Details :
waxed on deck
Price :
Negotiable
Dimension :
13000x2300x1600mm
Curb Weight :
6000kg
Loading Capacity :
30000KG
Colour :
Optional
Axles :
Fuwa
Landing Gear :
Jost
Description

3Axles/4Axles Double -Function Flatbed Trailer For Tansporting Containers Or Goods

The vehicle body,made of high qualified steel Q235, T700 optional.
Frame girder structure, made of Q345 steel, T700 , SSAB high stress steel optional.
Independent steel plate stamping type rigid suspension, air suspension optional.

Pls Notice: this is for your consideration only

Actual datas depend on your actual requst!

Specifications

Basic Information

Model

3 Axle Double-Function Fladbed Trailer

Overall Dimension (L*W*H)

13000*2500*1600mm

Carriage Dimension(L*W*H)

12800*2360*550 mm

Curb Weight

6000 KG

Total Weight

39900KG

Axle

3*13000KG FUWA

Rated Loading capacity

35000KG

Wheelbase

6780+1310+1310mm

King-pin size

3.5inch, heigth from earth 1600mm 90#

Wheel Base

3225mm +1350mm

Tires

11.00R22.5 tire

Landing Gear Brand

Jost

Brake System

Air Reservoir

40L

Emergency relay valve

Jiwei

Air-chamber

Four double and two single

Main Structure

Upper wing plate

18mm with 16MN steel

Low wing plate

20mm with 16MN steel

Main beam heigth

530mm

Baseboard

3mm thickness steel plate

Light

7 wire harness 24V LED light

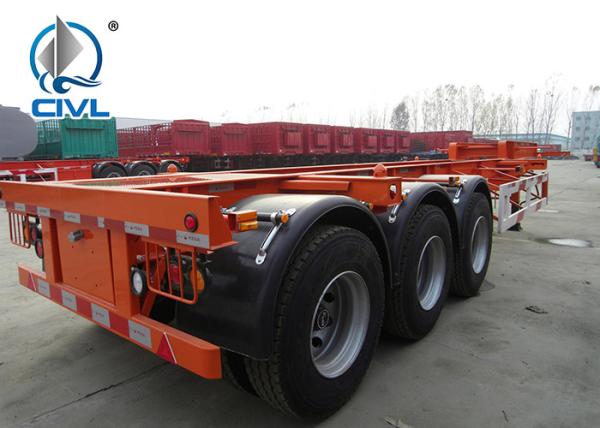

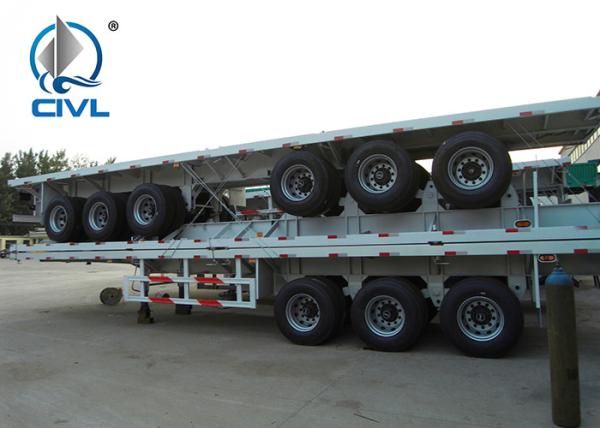

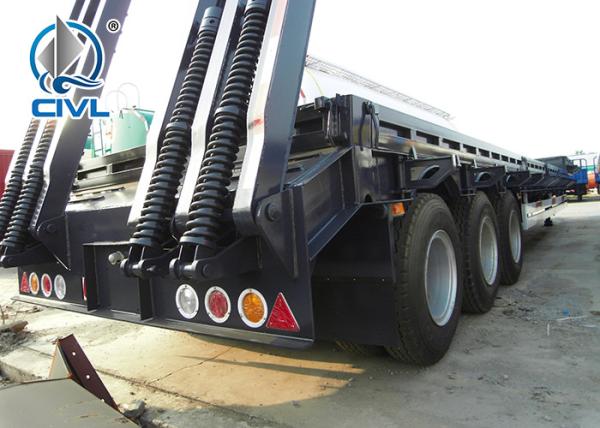

Photos

40 Feets Double - Function Flatbed Trailer Tansporting Containers semi truck flatbed trailer

40 Feets Double - Function Flatbed Trailer Tansporting Containers semi truck flatbed trailer

Other Truck can be provide according to your request, freely contact me for the informations and quotations.

Other products:

Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( 54873020, 54798871, 54798867, 54633157, 54622108, 54621778, 54621524, water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
