Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
2000units/year
Delivery Time :
Within 35 days
Packaging Details :
nude
color :
option
warranty :
1 year
condition :
new
axle :
fuwa
Description

3axles Flat Bed Flatbed Deck Semi Trailer for container 25-40T CImc

Flatbed Container Semi Trailer dedicated to the transport of various containers, and also can be used to transport ordinary growth goods with its platform. It has sufficient strength, and mainly used in transport system, such as ships, ports, routes, highways, transit stations, bridges, tunnels, multimedia transport system.
40ft Flatbed Container Trailer can carry 40ft and two 20ft containers.The flatbed trailer capacity ranges from 20 tons to 80 tons with 2 axle, 3 axles, and 4 axles.

We use high quality tensile steel to reduce beam fracture probability.The main beam is opting for high tensile steel Q345B and axle can be selected of BPW or FUWA brand.
Customization is well accepted.

General specification for 3 axles 40ton 40ft flat bed container flatbed semi trailer
Overall Dimension 12500mm*2490mm*1600mm
Tare Weight 6750kg Pay Load 40ton
King Pin Setting 1120mm Rear Overhang 1690mm
Track 1840mm Wheel base 7080mm+1310mm+1310mm

Running Gear
Suspension Tri-axle 10-pcs leaf spring suspension with equalizer beam
Tires 11.00-20, 11.00R20,12.00-20,12.00R20,, 12units
Axles FUWA, BPW axle, 13T capacity
Brakes Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake

Under Frame
Main Beam I shape, Mild Alloy (16Mn) by Automatic submerged arc welding.
Cross Beam Mild Alloy Q235
King Pin Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled
Landing Gear Single side operation or double side operation, Static capacity 30Ton
Twist Locks 12 lock positions with 8 twist locks
Appendix 1 tool box, length 1.0m

Electrical & Paint
Lights & Reflectors Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring 24V, 6 lines
Air/Elec. Connector ISO standard air connector, 24V 7 pin plug socket
Paint Sand blasting before painting, color upon request

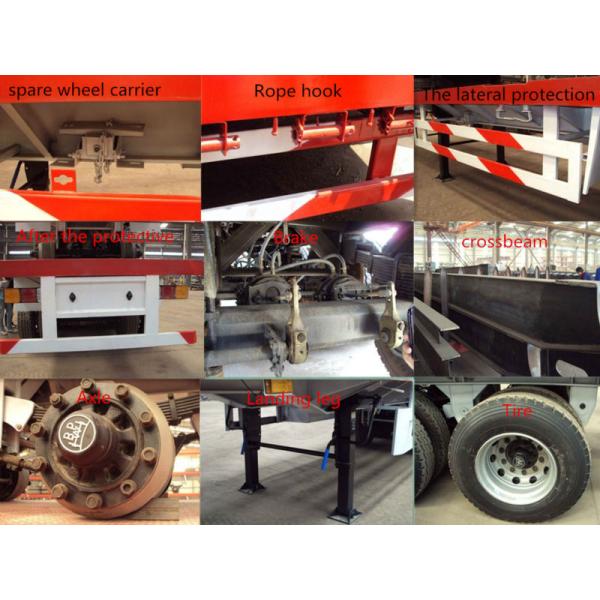

The Detail of 3 axles 40ton 40ft flat bed container flatbed semi trailer
New Flat Bed Deck Semi Trailer For Container 25 - 40T CImc Heavy Truck Transportation

Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts


New Flat Bed Deck Semi Trailer For Container 25 - 40T CImc Heavy Truck Transportation
New Flat Bed Deck Semi Trailer For Container 25 - 40T CImc Heavy Truck Transportation
