40-60 ton low flatbed semi-trailer hydraulic ladder for transporting construction machinery
40-60 ton low flatbed semi-trailer hydraulic ladder for transporting construction machinery
40-60 ton low flatbed semi-trailer hydraulic ladder for transporting construction machinery
40-60 ton low flatbed semi-trailer hydraulic ladder for transporting construction machinery
40-60 ton low flatbed semi-trailer hydraulic ladder for transporting construction machinery
40-60 ton low flatbed semi-trailer hydraulic ladder for transporting construction machinery
40-60 ton low flatbed semi-trailer hydraulic ladder for transporting construction machinery
40-60 ton low flatbed semi-trailer hydraulic ladder for transporting construction machinery
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
500 units per month
Delivery Time :
Within 35 days
Packaging Details :
nude
color :
option
axle :
fuwa
tire :
triangle
leg :
jost
warranty :
1year
Use :
Truck Trailer
Type :
low flat semi-trailer
Axle :
3 pcs
Condition :
New
Description

40-60 Ton 3 axles Low Flatbed Semi-Trailer Hydraulic Ladder For Transporting Construction Machinery

Description:

Low flatbed semi-trailers are usually used to transport heavy vehicles (such as tractors, buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, construction machinery (such as excavators, bulldozers, loaders, road pavers, cranes, etc.) ) and other heavy loads, the lower the center of gravity, the better the stability and safety, and the greater the ability to transport super high loads and pass overhead obstacles.

Specifications
Dimension
11000mm-16000mm x 3000-3500mm x 1650 mm (Standard or Customized )
Loading Capatity
60-120 Tons
Axle
13T/16T, BPW/FUWA/Chinese brand
Rim
6.5-20 / 7.5-20 / 8.00-20 / 8.5-20
Tire
8.25R20 / 10.00R20 /11.00R20 / 12.00R20
Suspension
Tri-axle Mechanical suspension or Air Suspension (Chinese brand or BPW brand)
King Pin
JOST brand 2.0 or 3.5 inch (bolted or welded type)
Landing Gear
JOST brand or Chinese brand 28 Tons
Main Beam
Height:450mm-580mm Q354B steel
Side Beam
16mm-30mm "I" Steel
Ladder
Manually operated or Hydraulic type
Surface Coating
Sandblasted, anti-rust chassis surface is avaible with 1 layer of anticorrosive primer and 2 layers of top coats.
Rmark
The specification just for your reference, we can bulid trailer as your specific requirements

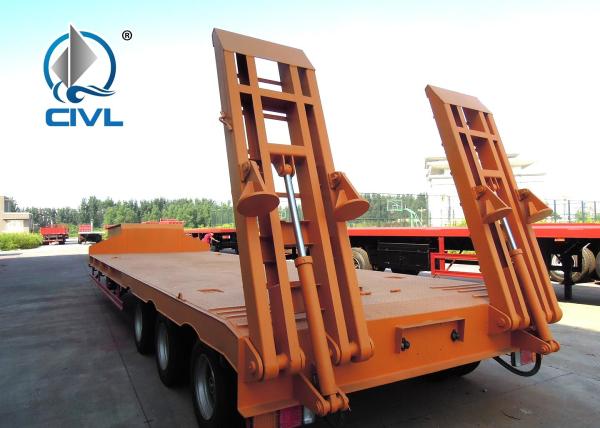

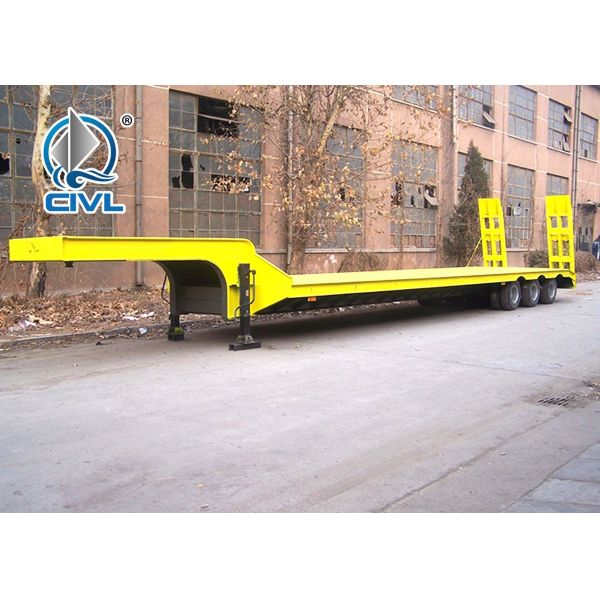

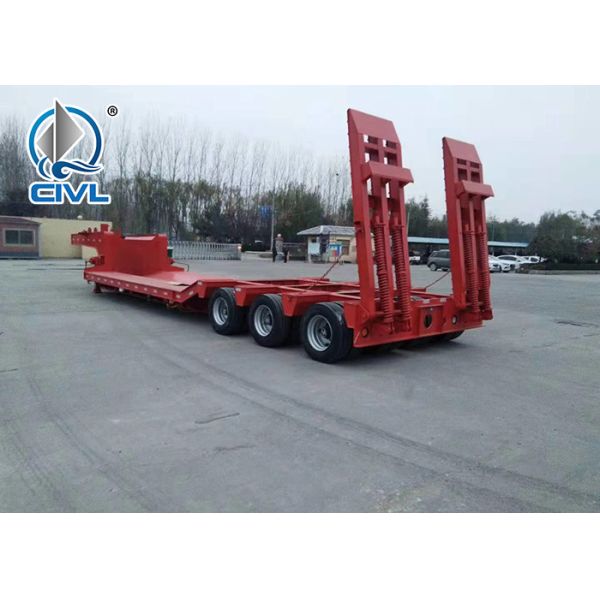

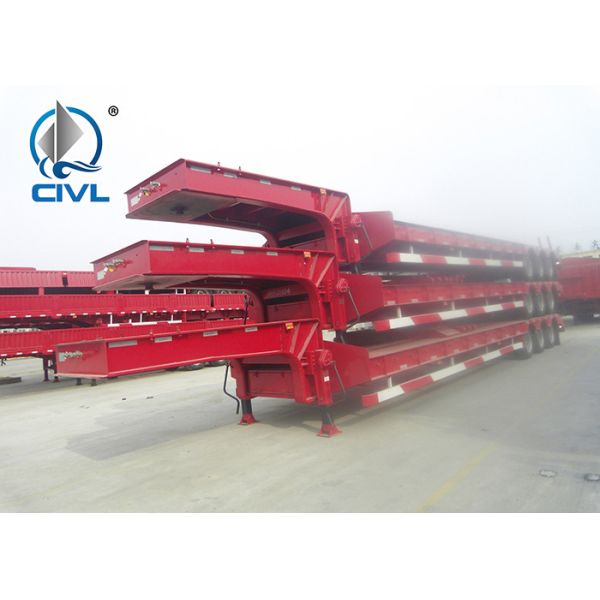

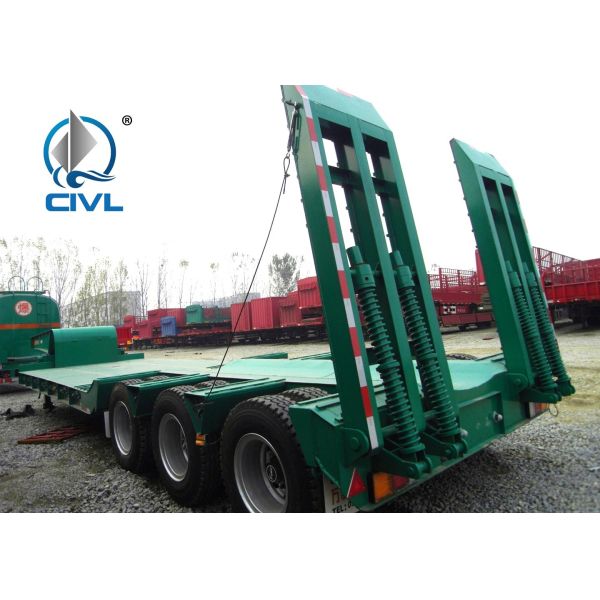

Photos:

40-60 ton low flatbed semi-trailer hydraulic ladder for transporting construction machinery40-60 ton low flatbed semi-trailer hydraulic ladder for transporting construction machinery
40-60 ton low flatbed semi-trailer hydraulic ladder for transporting construction machinery40-60 ton low flatbed semi-trailer hydraulic ladder for transporting construction machinery

About us:

CIVL SHARES is committed to international trade and cooperation.
We are a leader of solution providers for full sets of vehicles, construction machineries and auxiliary facilities.

Relying on the materials, equipments and vehicles needed for infrastructure,logistics and transportation as well as people's livelihood, We provide a complete set of solution from services in pre-sale,in-sale and after-sale to our customers.

Our products cover from transportation vehicles, special vehicles, passenger cars, pavement machinery, road maintenance equipment, port special tools, concrete production lines, etc. to the related-auxiliaries including various board houses, tents, steel structures, building materials, mobile fuel stations, etc.

Other products:
Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
