Fuwa Three Axle Flat Bed Side Wall Semi Trailer Trucks 40 - 50T 2.5mm Thick Chequer Plate
Fuwa Three Axle Flat Bed Side Wall Semi Trailer Trucks 40 - 50T 2.5mm Thick Chequer Plate
Fuwa Three Axle Flat Bed Side Wall Semi Trailer Trucks 40 - 50T 2.5mm Thick Chequer Plate
Fuwa Three Axle Flat Bed Side Wall Semi Trailer Trucks 40 - 50T 2.5mm Thick Chequer Plate
Fuwa Three Axle Flat Bed Side Wall Semi Trailer Trucks 40 - 50T 2.5mm Thick Chequer Plate
Fuwa Three Axle Flat Bed Side Wall Semi Trailer Trucks 40 - 50T 2.5mm Thick Chequer Plate
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
50000units/year
Delivery Time :
Within 35 days
Packaging Details :
nude
axle :
fuwa
leg :
Jost
color :
option
Description

3 axle flatbed side wall semi truck trailer 40-50T

Dimension:
Size: 12,500*2500*1500mm,side wall height 600mm or as client's request
Weight:
Payload: 40,000kg
Tare weight: Approx. 7,500kg
G.V.W.R.: Approx. 47,500kg
Frame & Structure:
Main beam: Material Q345B. Fabricated “H” beam height 500mm, Top flange thickness 12mm, Middle web thickness 6mm, Bottom flange thickness 14mm
Side beam: 14# channel steel
Platform: 2.5mm thick chequer plate with supporting channel
Cross beam: 80*40mm square tube
Kingpin: JOST 2”SAE Kingpin, bolted in type
Twist lock: 12 sets twist locks

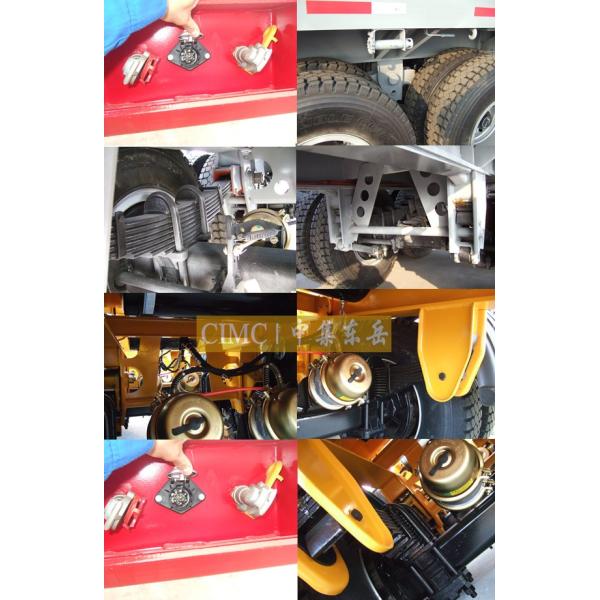

Running gear:
Suspension: JMCG mechanical suspension, leaf spring 13mmx90mm, China
Axle: FUWA 150x150 square beam axle, 3pcs*13 ton capacity, China
Brake system: Dual line pneumatic brake, SAE hose and connector
Air tank: 40L, 2 pcs, China
Emergency relay valve: Wabco rela4y valve
Tire: Triangle brand, 12R22.5, 12 pcs. China
Rim: 9.00*22.5 steel disc wheel, 10 holes ISO, 12 pcs. China
Landing gear: JOST E100 two speed telescopic manual landing gear
Details Image

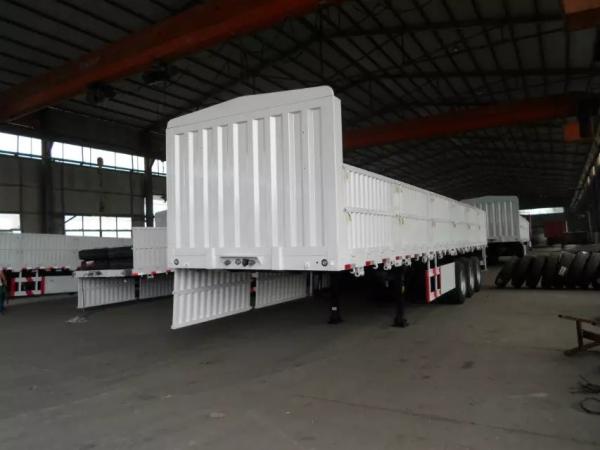

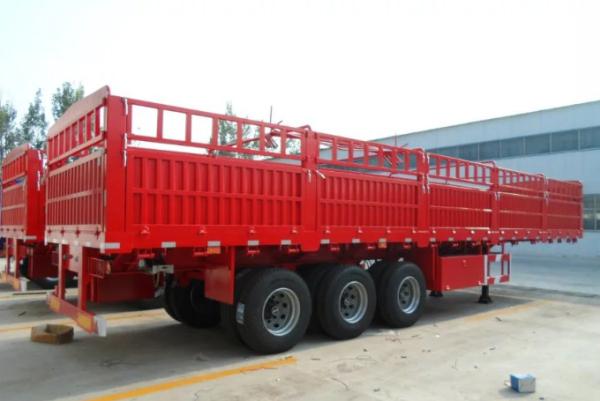

3 axle flatbed side wall semi truck trailer

Fuwa Three Axle Flat Bed Side Wall Semi Trailer Trucks 40 - 50T 2.5mm Thick Chequer PlateFuwa Three Axle Flat Bed Side Wall Semi Trailer Trucks 40 - 50T 2.5mm Thick Chequer Plate

Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
