3 Axles 22MT Aluminum Fuel Tank Semi trailer Oil Tanker Trailer
3 Axles 22MT Aluminum Fuel Tank Semi trailer Oil Tanker Trailer
3 Axles 22MT Aluminum Fuel Tank Semi trailer Oil Tanker Trailer
3 Axles 22MT Aluminum Fuel Tank Semi trailer Oil Tanker Trailer
3 Axles 22MT Aluminum Fuel Tank Semi trailer Oil Tanker Trailer
3 Axles 22MT Aluminum Fuel Tank Semi trailer Oil Tanker Trailer
3 Axles 22MT Aluminum Fuel Tank Semi trailer Oil Tanker Trailer
3 Axles 22MT Aluminum Fuel Tank Semi trailer Oil Tanker Trailer
3 Axles 22MT Aluminum Fuel Tank Semi trailer Oil Tanker Trailer
3 Axles 22MT Aluminum Fuel Tank Semi trailer Oil Tanker Trailer
Specifications
Brand Name :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
500units/month
Delivery Time :
Within 35 days
Packaging Details :
nude
Model Number :
CIVL
material :
Q345
color :
option
axle :
fuwa brand
leg :
jost brand
Color :
Customers Optional
Condition :
New
Keywords :
Liquid transport tank trailer
Wheel :
3 axle
Description

Description:

Our fuel tanker trailer choose Q345B carbon high-tensile steel material, welded by automatic Submerged-Arc processes.According to clients' requirements, we can customize different volume and compartment.

Aluminum tanker trailer can transport more oil than carton steel tanker trailer.Customized fuel tank trailer can be produced.

Tanker trailer will be inspected before painting ensure every detail in good condition.

Besides the tanker trailer,we also have container trailer,sidewall trailer,low bed trailer,cement trailer etc. for choice.

We usually adopt shipping by bulk cargo,flat rack and Roro ship.

Specification:

Model Name 50000 liters 3 axles 22MT fuel tank semi oil tanker trailer
Function oil and fuel
Overall Dimension (L*W*H) 11900*2500*3900mm
Volume 50m3
Tare weight 10500KG
Tank body Q235/4mm steel
End plate Q235/6mm steel sheet
Axle 3 axle 13T Fuwa Brand
Suspension system Mechanical Suspension
Steel Spring 10/10/10 leaf spring suspension
Manhole cover 500mm manhole cover 2 sets
Tire 12R22.5 12pcs
Rims 9.0, 12 pieces
Discharge valve 4''disc valve ,3pcs
Discharge pipe 4''seamless steel tube ,3pcs
Spare Wheel Bracket 2'' bolt-in king pin
Landing gear Fuwa brand two-speed,manual operating ,heavy duty landing gear 28t
Tool box one piece
Compartment Three
Braking system RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
Electrical system voltage:24V 2.Receptacle:7ways(7wire harness)
Tail lamp with turn signal,brake light&reflector,side lamp etc.
One set 6-core standard Cable
Accessories One standard tool box.fire extinguisher 2 pcs
Painting Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Main beams Opting for high tensile steel Q345B welded by automatic submerged-arc processes
Packing Polish with wax before shipping

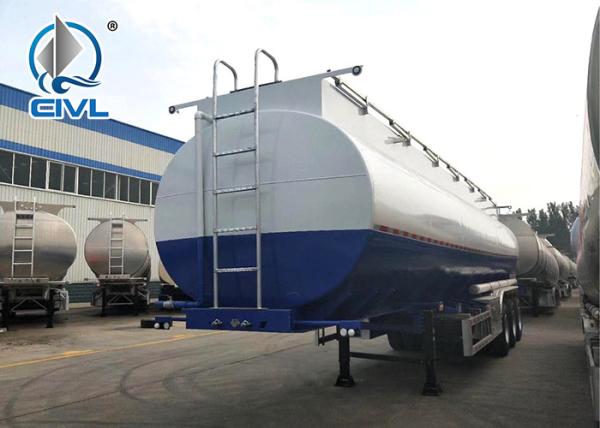

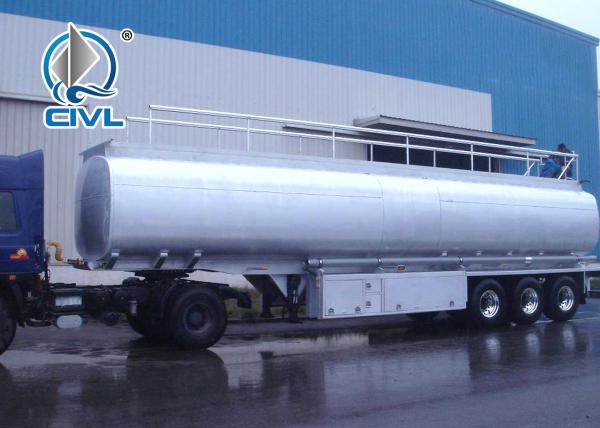

Photos:

3 Axles 22MT Aluminum Fuel Tank Semi trailer Oil Tanker Trailer3 Axles 22MT Aluminum Fuel Tank Semi trailer Oil Tanker Trailer3 Axles 22MT Aluminum Fuel Tank Semi trailer Oil Tanker Trailer3 Axles 22MT Aluminum Fuel Tank Semi trailer Oil Tanker Trailer

Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
