Heavy Duty 3 Axles 40Ft Container Semi Trailer For Transport / Low Flatbed Truck
Heavy Duty 3 Axles 40Ft Container Semi Trailer For Transport / Low Flatbed Truck
Heavy Duty 3 Axles 40Ft Container Semi Trailer For Transport / Low Flatbed Truck
Heavy Duty 3 Axles 40Ft Container Semi Trailer For Transport / Low Flatbed Truck
Heavy Duty 3 Axles 40Ft Container Semi Trailer For Transport / Low Flatbed Truck
Heavy Duty 3 Axles 40Ft Container Semi Trailer For Transport / Low Flatbed Truck
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
500 Unit/Units per Month low flatbed container semi-trailer
Delivery Time :
Within 35 days
Packaging Details :
In nude
Material :
Q345B
Tare weight :
7000kgs
Type :
40ft flatbed semi trailer
Axle :
3x13ton, heavy duty axle
Spare tire carrier :
2 pieces tire carrier
Color :
Blue
Description

3 Axles 40Ft Container Semi Trailer Widely Used New Condition Low Flatbed Container Semi-Trailer For Transport

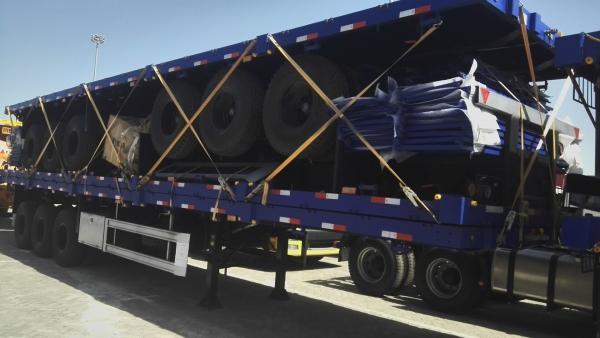

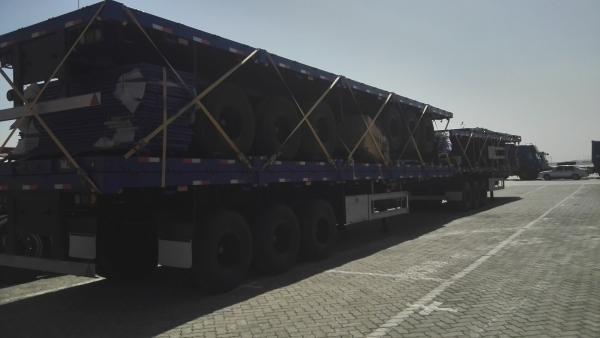

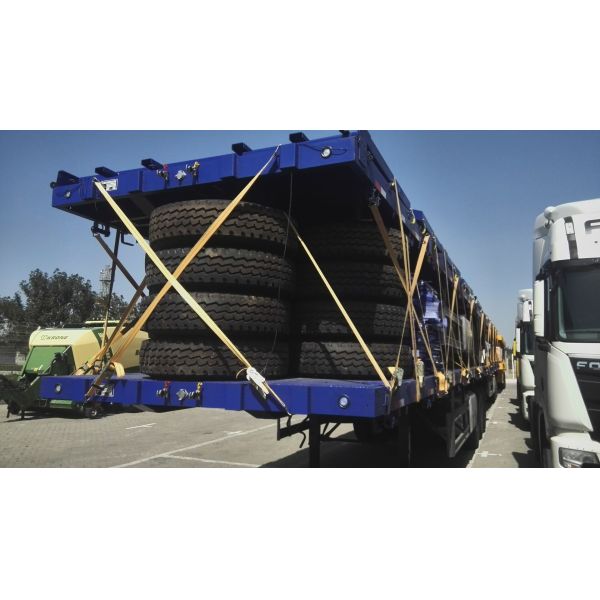

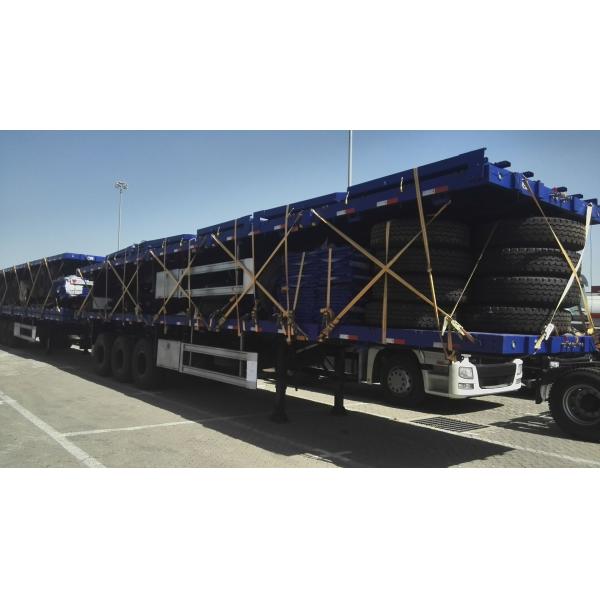

1.Nude Packing 3 sets stacked (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation) ;


2. Cut the rear part which can load two sets in one 40ft container ;


3. Keep the trailer original but load two sets in one 45ft container.

Product Description

Specification of tri axle 40 feet flatbed trailer
MAIN SPECIFICATION
Type 40ft flatbed semi trailer
Function 2x 20ft and 1x40ft container or other stuff
Overall dimension 12500x2500x1600mm
Tare weight 7000kg
Loading weight 48000kg
Main beam

Material is Q345B, The height of the beam is 500 mm,

upper plate is14mm, down plate is 16mm,middle plate is 8mm.
Boundary/Side beam 16U shaped steel or I shaped steel
Detachable front plate One piece, height: 1.5m, all steel plate
King pin JOST brand, 50mm or 90mm
Landing gear 28 ton, two-speed landing leg, FUWA brand
Axle 3x13ton, heavy duty axle
Axle brand FUWA brand
Container locks 12 pieces
Suspension type Leaf spring suspension
Leaf spring 10/10/10 90mm width and 13mm thickness
Tire Triangle brand 12R22.5 12+1 spare piece
Rim 9.0-22.5 12+1 spare rim
platform thickness 3mm diamond plate
Brake Chamber Six double big brake chamber
Spare tire carrier 2 pieces tire carrier
Emergency valve

WABCO Brand, RE 6 relay valve; T30/30+T30 Spring brake chamber;

one piece of 45L air tanks
Tail lights LED type
Voltage 24V
Receptacle 7ways (7 wire harness)
Fender 2 pieces, light steel, left+right
Tool box 1 piece, 1m x 0.5m x 0.5m,with some small gadgets
Painting

Complete Chassis sand blasting to clean rust, 1 coat of

anti-corrosive prime, 2 coats of final paint
