Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
30000units/year
Delivery Time :
Within 35 days
Packaging Details :
nude
Material :
Q235
Axles :
fuwa brand
tire :
triangle brand
warranty :
1year
color :
option
Description
Detailed Product Description
Product Name: Low-bed Semi Trailer Truck Model: 2 Axles 50-80Tons
Fifth Wheel: #50, #90 Loading Capacity: 50-80tons
Dimension Of Flat: 12000*3000mm Axles: 2X16 Tons
Material: Carbon Steel Or Mn Steel Landing Gear: 28T JOST

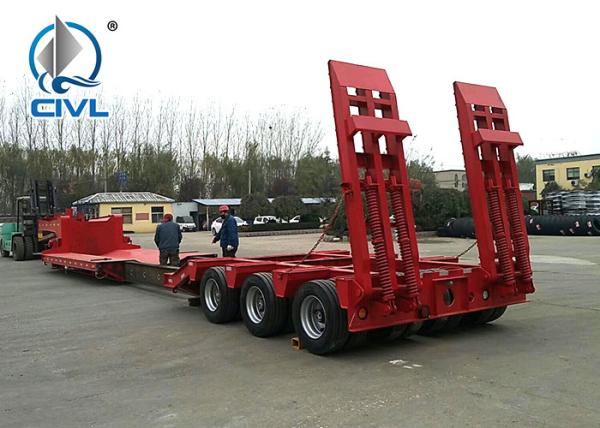

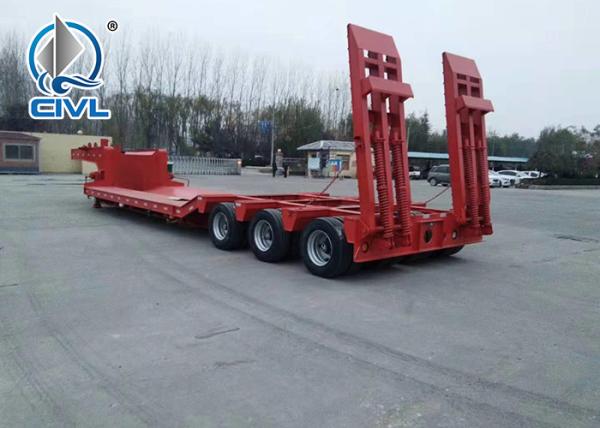

Low-bed Semi Trailer Truck 2 Axles 60Tons for carrying construction machine

Description:

Low-bed Semi Trailer Truck 2 Axles 60Tons for carrying construction machine

Our company semi trailer truck series,is applied to the transportation of all kinds of

mechanical equipment, big size articles,road construction equipment ,big size tank body

power station equipment and all kinds of steels .widely using ,high efficiency .whole

vehicle adopts advanced computer aided design for optimization design ,flexible and

various ,to design carrying flat according to the requirements of customers.to meet

various of special goods transportation needs.

Specification:

Low-bed Semi Trailer Truck 2 Axles 60Tons for carrying construction machine
Model 2 Axles 60Tons
Axle FUWA brand, 16ton, 2 Sets
Main beam

Beam height: 500mm

Upper plate: 10mm

Double Middle plate: 6 mm

Down plate: 12mm

Dimension of Flat 12000*3000*6mm
Material Carbon steel or Mn steel
Gross vehicle weight 72000kgs
King pin #90

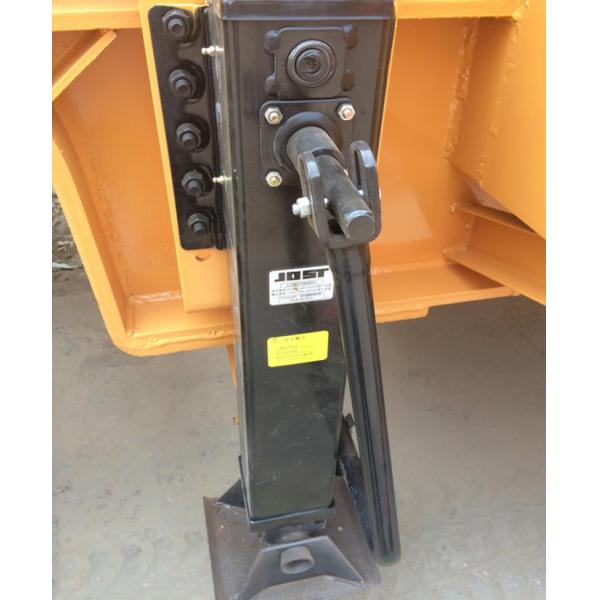

Support leg JOST Standard 28T
Suspension Normal suspension
Thickness leaf spring 10/10/10
Tire/Rim 1200R20, 13pcs, 8.5, 12 pcs
Brake Chamber Standard 6 pcs
Spare wheel carrier 2 pcs
Tool box 1 pcs
Electrical System Chinese standard 24C lighting system
Side Maker Lamp LED lamp
Painting Polyurethane Paint
Overall dimension 16000×2500×3880(mm)
Color White, red, green, golden and so on.


Applications:

Low bed semi trailer for a variety of mechanical equipment, large objects, highway construction equipment, large tanks, power station equipment for various steel transportation.

Competitive Advantage:

1) Our company produces low flat semitrailer divided into flat, concave beam and tire exposed structure, beam adopts flat type or goose neck. The frame is ladder type, the beam cross-section is

I-shaped, has high anti breaking strength and bearing capacity.

2) The main plane of the frame is low, which ensures the smooth transportation, and is suitable for carrying all kinds of engineering machinery, large equipment and steel.

3) Using three axis balance, double axis balance or rigid suspension, the mass balance block is arranged

between the front and rear leaf springs.

4) the key parts adopt the world's top technology products

5) based on strong technical support and top level technology make the trucks with high quality and more

reliable

6) competitive price, cost-effective

7) quick and efficient spare parts supply bring you more convenient

8)fast delivery time, we can arrange production according to your needs exactly and Quickly

9) professional import and export dealing procedure, make customs clearance more high efficiency
