Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10000 units per week
Delivery Time :
Within 35 days
Packaging Details :
nude
brand :
sinotruk howo
engine :
D10.38
color :
optional
tires :
12.00R20
Truck Type :
HowoA7
Drive Wheel :
6x4
Description

HOWO A7 Sinotruk Engine 420HP 6X4 12 Wheels Tractor Head Trucks

Description:

For the tractor truck also called prime mover in some countries.

According to clients' requirements,

we can customize different horse power and loading weight.

The popular tractor truck models include:

SINOTRUCK HOWO 371hp 6X4 10 wheeler 25tons tractor truck,

sino truck 35tons ten wheeler truck, SINOTRUK 420hp howo truck,

HOWO 420hp 40tons tipper truck.

Cabin: HOWO76 cab, (one sleeping, with air-condition),

all-steel forward control,55ºhydraulically tiltable to the

front, 2- arm windscreen wiper system with three

speeds, laminated windscreen with casted-in radio

aerial, hydraulically damped adjustable driver’s seat and

rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette

recorder, safety belts and adjustable steering wheel, air

horn, with 4-point support fully floating suspension and

shock absorbers

Specification:

Truck Model ZZ4257N3241V
Dimension(Lx W xH)(mm) 6800x2490x3668
Approaching angle/Departure angle(°) 16/70
Overhang(front/rear) (mm) 1500/700,725
Wheel base (mm) 3200+1400,3225+1350
Max speed(km/h) 102
Curb weight(kg) 11930
Loading Weight(kg) 40000

Engine

( technology, made in China)

Model

D12.42,water-cooled,four strokes,

6 cylinders in line with water cooling,

turbocharged and intercooling, directly injection

Fuel type Diesel
Horse power 420hp
Emission EURO2
Fuel tanker capacity(L) 400
Transmission Model HW19710

Brake system

Service brake Dual circuit compressed air brake
Parking brake

spring energy, compressed air operating on rear wheels

Steering system

Model ZF8098
Front axle

HF9 ( Steering with double T-cross section beam

Loading capacity: 9000kg)

Rear axle HC16 ( Pressed axle housing, central double reduction with differential locks between axles and wheels)
Color RED .
Tyre 315/80R22.5 11pics
King Pin 90# or 50# optional
Electrical system Battery 2X12V/165Ah
Alternator 28V-1500kw
Starter 7.5Kw/24V

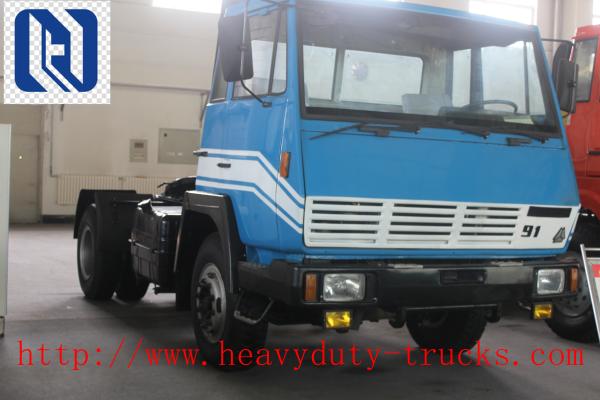

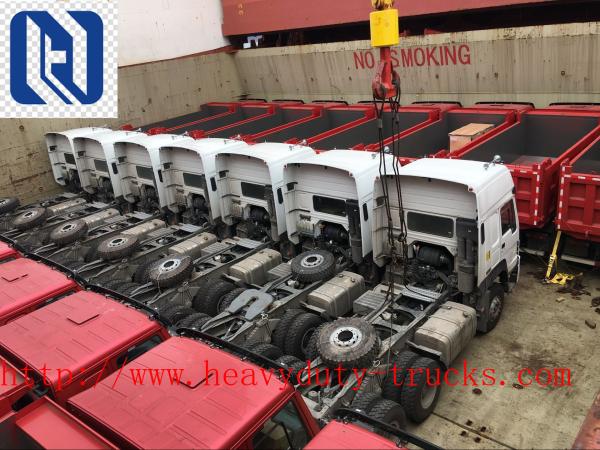

Detailed photo:

D10.38 Engine 420HP Prime Mover Truck 6X4 , 12 Wheel Tractor Head TruckD10.38 Engine 420HP Prime Mover Truck 6X4 , 12 Wheel Tractor Head TruckD10.38 Engine 420HP Prime Mover Truck 6X4 , 12 Wheel Tractor Head TruckD10.38 Engine 420HP Prime Mover Truck 6X4 , 12 Wheel Tractor Head Truck

Related Production:

Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( 55470323, 54640582, 54640443, 54622108, 54621778, 54621524, water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts

With over 51 years of experience , we have becoem one of the key manufacturers of trucks and road machiens in China .

Exporting to more than 50 countries for 14 years .

For more information ,contact us now.
