Euro 3 6x4 Prime Mover Truck , Beiben V3 420hp Heavy Trailer Head Truck
Euro 3 6x4 Prime Mover Truck , Beiben V3 420hp Heavy Trailer Head Truck
Euro 3 6x4 Prime Mover Truck , Beiben V3 420hp Heavy Trailer Head Truck
Euro 3 6x4 Prime Mover Truck , Beiben V3 420hp Heavy Trailer Head Truck
Euro 3 6x4 Prime Mover Truck , Beiben V3 420hp Heavy Trailer Head Truck
Euro 3 6x4 Prime Mover Truck , Beiben V3 420hp Heavy Trailer Head Truck
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Price :
usd30000-usd40000 per unit
Payment Terms :
L/C, T/T, T/T, L/C
Supply Ability :
100 unit / month
Delivery Time :
Within 35 days
Packaging Details :
nude
Drive mode :
6x4
Horsepower :
420hp
Emission Standard :
Euro 3
Transmission Type :
Manual
Size :
7240*2500*3600
Gearbox :
12JS200T
Description
Beiben V3 420hp Heavy Trailer Head Truck, Beiben 6x4 Prime Mover Truck export Kenya, Tanzania, Congo
Product Description

1.V3 long and high cabin with sleeper and air-conditioner

2.Engine :WEICHAI, WP12.420E32

3.High quality and competitive price

4. Quick delivery time.

SPECIFICATIONS

Traction type 6x4
Driving type Left Hand Driving
Overall Dimension(Lx W xH) 7240*2500*3600
Wheel base(mm) 3450+1450
Curb weight(kg) 8800
Front overhang/rear overhang (mm) 1515/825
Approach angle/Departure angle 16/60

Engine technology,

made in China

 WP12.420E32

Diesel, 4-stoke Direct injection,6-cylinder in

line, radiator, turbo-charging, water-cooling, EGR(Exhausted Gas Recycling)
Displacement(L) 11.596
Bore X stroke (mm) 126mm/130mm
Max power(kw/rpm) 420HP/309kW
Max torque(Nm/rpm) 17500NM@1200~1500

Min rate of consuming

fuel(g/(kw.h))

 185g/kW.h
Emission III
Max speed(km/h) 110
Fuel tanker(L) 400 Al fuel tank
Clutch Model D430 diaphragm type
Gearbox Brand Fuller (Fast)
Model 12JS200T
Shift mode

12 forward speeds;

2 reverse speeds
Steering system Model TAS85
Frame 317mmx70mmx8.5+7+12mm
Front axle 7.5T front non-driving steering axle
Middle and Rear axle

13T double reduction driving axle, inter-wheel differential lock

Ratio:5.921

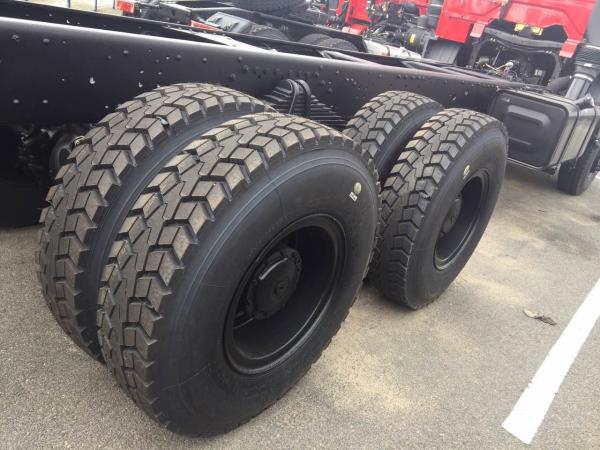

Tyre 12.00R20 Radial Tire
Number of tyre 10+1 spare
Suspension Leaf spring type
Front/rear: 13/13
Fifth wheel 90mm (3.5inch)
Color White
Electrical Battery 12V/135Ah
Generator 28V-35A
Starter 5.4Kw/24V
Cabin Beiben V3 long and high cabin with two sleep and air-conditioner

The main products we deal with now are SINOTRUK HOWO, XCMG, SHANTUI, ZOOMLION and SANY.


Truck series:

1. dump trucks; cargo trucks
2. tractor trucks;
3. tanker trucks,( water tanker and oil tanker)
4. mixer trucks and concrete pump truck
5. mine dump trucks( 4x2 off-road mine tipper, 6x4 70T mine dump truck, 6x6 articualted dump trucks)
6. full drive trucks( 4x4. 6x6 and 8x8 Trucks)
7, garbage trucks( garbage compector truck, suction trucks)
8. truck cranes(normal road truck crane, truck mounted crane)
9. special trucks( wrecker trucks, military trucks...)
10. truck trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11. truck spare parts( howo, howo A7, golden prince all series trucks parts supplying)

Machine series:

1.Wheel loader,Backhoe loder, brick making machine

2.Roller,

3.Motor Grader,

4.Bulldozer,

5.Excavator,

6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane),

7,forklift and 45t contain reach stacker

8,paver and so on
