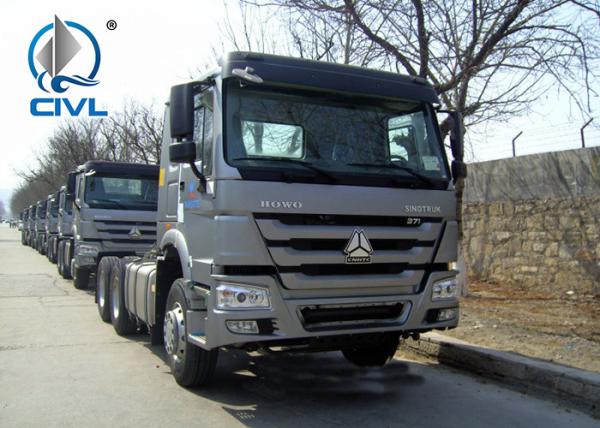

Prime Mover Truck 371hp Engine Euro 2 Standard 6x4 for Transportation
Prime Mover Truck 371hp Engine Euro 2 Standard 6x4 for Transportation
Prime Mover Truck 371hp Engine Euro 2 Standard 6x4 for Transportation
Prime Mover Truck 371hp Engine Euro 2 Standard 6x4 for Transportation
Prime Mover Truck 371hp Engine Euro 2 Standard 6x4 for Transportation
Prime Mover Truck 371hp Engine Euro 2 Standard 6x4 for Transportation
Specifications
Brand Name :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Price :
US $39,000-42,000 / Unit
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200 units per week
Delivery Time :
Within 35 days
Packaging Details :
In nude, marine anti-corrosion packaging
engine :
380hp
brand :
beiben
Emission :
Euro III
Displacement :
9.726L
Gearbox :
12JS200TA
Description

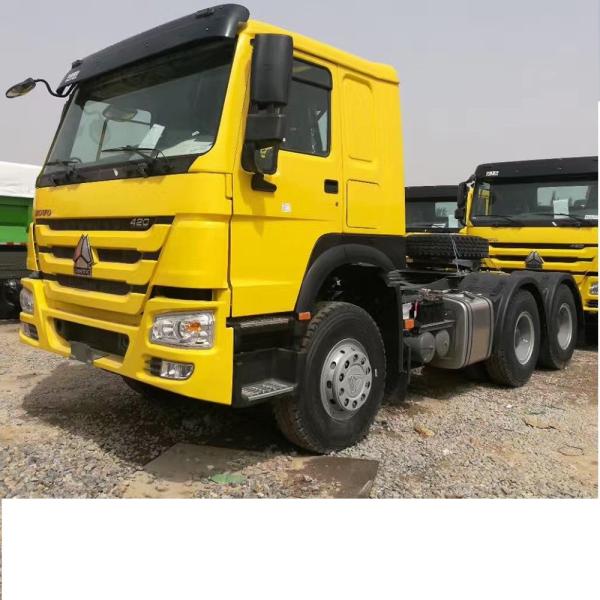

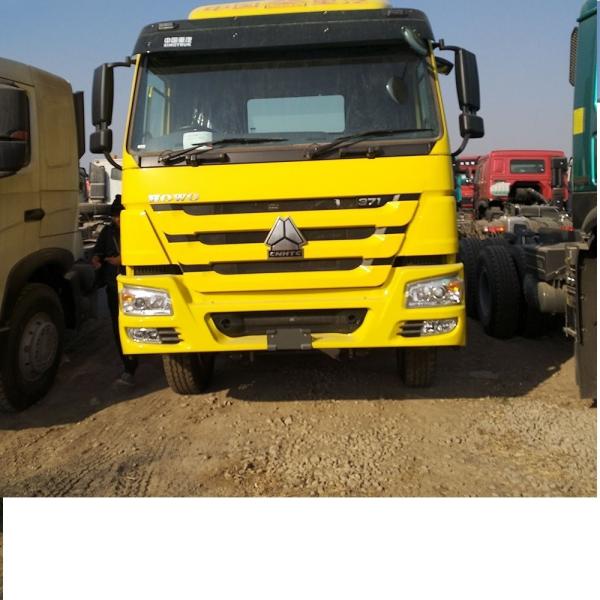

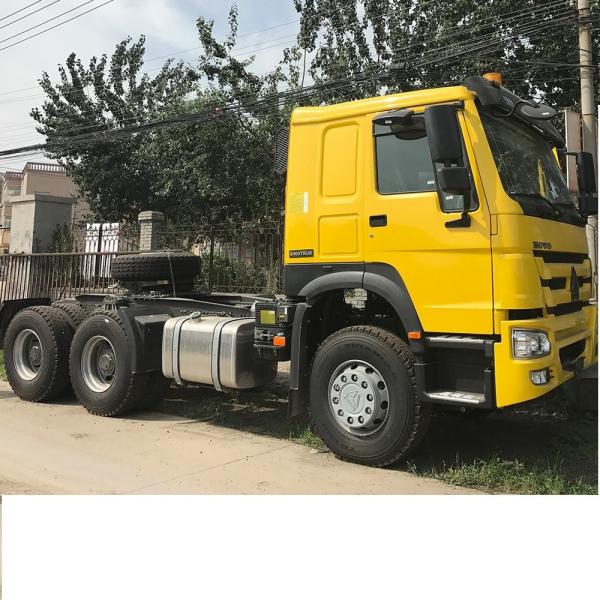

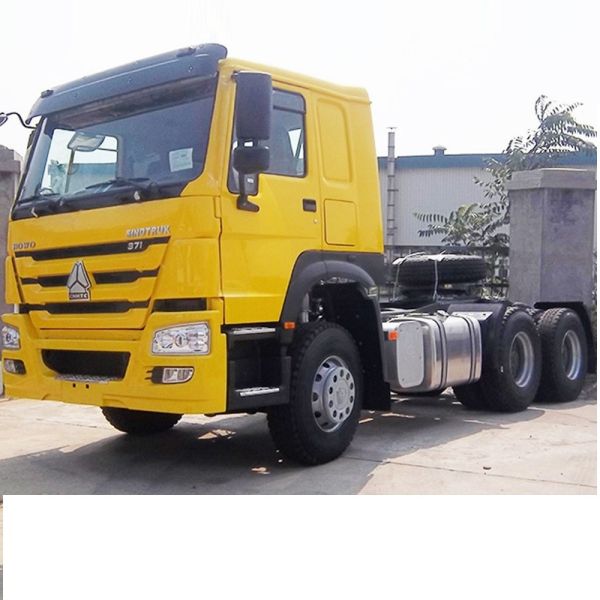

Details photo:

Prime Mover Truck 371hp Engine Euro 2 Standard 6x4 for TransportationPrime Mover Truck 371hp Engine Euro 2 Standard 6x4 for TransportationPrime Mover Truck 371hp Engine Euro 2 Standard 6x4 for TransportationPrime Mover Truck 371hp Engine Euro 2 Standard 6x4 for Transportation

Features:

Driving type: LHD(RHD is optioned)

Cabin:
North Benz long cabin, one sleeper, A/C
Radio player(with USB), Safety belt, Adjustable air type, high back and shock absorption
Driver seat with handle and seatbelts
Dash board with all necessary gauges such as (km meter, rpm, oil pressure, temperature, air pressure,Fuel level)
Headlight, Sun protection on cabin.

Engine:
Engine brand: Weichai
Engine model: WP10.380E32 EURII EGR
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & inter-cooling with exhaust valve brake.
Displacement: 11.596 liters
Max. Output: 380HP@353kW
Max torque: 1970NM@1200-1500rpm
Bore/Stroke(mm): 126/155
Clutch:
Clutch: Φ 430 Diaphragm type
Type: Single dry frictional disc, Hydraulic boosting
Gear box:
Model: Fuller 12 speeds(12JS200T), manual, 12-forward and 2 reverse speeds

Steering: TAS85
Brake system:
Double-circulate brake system

Axles:
Front axles: 7.5 Tons
Rear axles: double Reduction driving axle, Ratio: 1: 5.921(option5.263, 6.733)
Frame: Strengthened frame 317x70x8.5+7+8mm(E380TM)
Tyre: 12.00R20
No tyre: 10+1 spare
Spring: 13/13
Fuel tank capacity (L): 400

Weight:
Kerb. Mass: 9200 kg
Towing mass: 25000kg

Dimensions:
Wheel base (mm): 3450+1450
Front overhang (mm): 1410
Rear overhang (mm): 625
Front track (mm): 1995
Rear track (mm): 1800
Max. Length(mm): 6935
Max. Width(mm): 2495
Max. Heigh(mm): 3340

Performance:
Max. Speed (km/h): 100
Approach angle: 20 degree
Departure angle: 64 degree
Max. Gradeability(%): 30
Fifth Wheel: 50#

Specifications:

Wheel base (mm) 3450+1450
Curb weight (kg) 8800
Gross towing trailer weight (kg) 40000
Max Speed:(Km/h) ≥90
Dimension(Length*Width*Height) 6935*2495*3340mm
Engine Model WD10.380,water-cooled,four strokes,6 cylinders straight in line,turbocharged,
Fuel type Diesel
Emission EUROIII
Displacement(L) 9.726
Fuel tanker capacity (L) 400L
Clutch Model Φ430, Diaphragm Spring,Hydraulic boosting
Gearbox Model 12JS200TA, mechanical type,12 Forward speed gear.
Brake system Service brake Brake gap can be adjusted automatically, double circulation air brake system
Assistant brake Engine exhaust brake
Park brake Potential springs pressing on middle and rear wheels
Steering system Model ZF8098
Suspension system Front Suspension Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension,
Rear Suspension Non-free standing stabilization spring,stabilization suspension,
Frame Fish belly shape, variable width, variable sections
Cross section dimension of frame(mm) 317×70×8.5+7mm
Front axle (Mercedes Benz Technology) Double-shoe pneumatic brake, non-driving steering axle AL7/1DS-7/5.921
Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Middle axle: HD7/016DGS-13/5.921

Rear axle: HL7/015DS-13/5.921
Tire 12.00R20
Qty of tire 11
Electrical system Battery 2X12V/135Ah
Generator 28V-35A
Starter 5.4Kw/24V
Cab

Long cab with single sleeper,

Full steel skeleton structure, covered with double layer steel plate;

Can be tipped forwardly;

Interior trimming:

High back/shock absorption seat for driver. Inner A/C, Manual door locks, manual glass lift

Exterior trimming:

NG80B front grid plate, Metal bumper, three steps, sun visor, new mirror system.
Fifth wheel #90 single direction (JOST)

Prime Mover Truck 371hp Engine Euro 2 Standard 6x4 for TransportationPrime Mover Truck 371hp Engine Euro 2 Standard 6x4 for Transportation

Service:

Pre-service:

  1. Inquiry and Consulting support.
  2. Sample testing support.
  3. View our factory.
  4. Design various solutions as buyer's requirement.


After-sale service:

  1. Training how to use and maintain the truck.
  2. Our engineers supply the support of technology.
  3. 12 months warranty for 3 key spare parts(Engine,Transmission,Axle)
  4. Parts supply on time.
  5. 24 hours service and technology support.
